Skid Control Sensor: Removal

HINT:

Replace the RH side by the same procedure as the LH side.

1. REMOVE REAR WHEEL
2. REMOVE REAR BRAKE DRUM SUB-ASSEMBLY (for Drum Type, TMMC Made)  (See DISASSEMBLY )
3. REMOVE REAR BRAKE DRUM SUB-ASSEMBLY (for Drum Type, TMC Made)  (See DISASSEMBLY )
4. DISCONNECT SKID CONTROL SENSOR WIRE
   1. Disconnect the skid control sensor wire connector from the skid control sensor.
      Fig 1: Locating Skid Control Sensor Wire Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY LH  (See REMOVAL )
6. REMOVE SKID CONTROL SENSOR
   1. Mount the rear axle hub in a soft jaw vise.
      NOTE: Replace the axle hub assembly if it is dropped or a strong shock is given to it.
   2. Using a pin punch and hammer, drive out the 2 pins and remove the 2 attachments from SST.
   3. Using SST and 2 bolts (Diameter: 12 mm, pitch: 1.5 mm), remove the skid control sensor from the rear axle hub.

      SST 09520-00031 (09520-00040), 09521-00020, 09950-00020

   NOTE:

   • If a damage is inflicted to the sensor rotor, replace the axle hub assembly.
   • Do not scratch the contacting surface of axle hub and speed sensor.

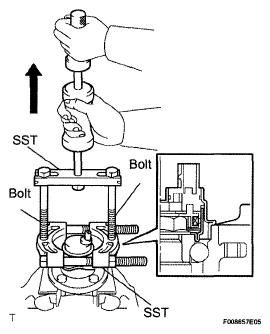

   Fig 2: Removing Skid Control Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
