Fuel Tank: Installation

  1. INSTALL NO. 2 FUEL TANK CUSHION
    1. Install 7 new No. 2 fuel tank cushions to the fuel tank.
      Fig 1: Locating No. 2 Fuel Tank Cushions To Fuel Tank
      G05008956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FUEL MAIN TUBE SUPPORT
    1. Install the fuel main tube support with the bolt.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

      Fig 2: Locating Fuel Main Tube Support With Bolt
      G04974967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FUEL PUMP TUBE SUB-ASSEMBLY
    1. Install the fuel pump tube to the fuel main tube support.
      Fig 3: Locating Fuel Pump Tube
      G04974966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NO. 1 FUEL TUBE CLAMP  (See INSTALLATION )
  5. INSTALL FUEL SOLENOID VALVE RETURN BRACKET  (See INSTALLATION )
  6. INSTALL FUEL VAPOR CONTAINMENT VALVE  (See INSTALLATION )
  7. INSTALL FUEL TANK ASSEMBLY
    1. Install the 4 clip nuts.
      Fig 4: Locating Clip Nuts
      G05008953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 fuel tank bands with the 2 pins.
      Fig 5: Installing Fuel Tank Bands With Pins
      G04974975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Set the fuel tank assembly onto the transmission jack.
    4. Raise the transmission jack.
      NOTE: Slowly raise the jack to prevent the fuel tank assembly from dropping.
    5. Tighten the 2 set bolts of the fuel tank bands.

      Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

      Fig 6: Identifying Set Bolts Of Fuel Tank Bands
      G05008951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Connect the fuel tank vent hose to the charcoal canister.
      1. Push the quick connector into the pipe and push up the retainer so that the claws engage.
        NOTE:
        • Before connecting the tube, make sure that it is not damaged. Make sure that there is no dirt present on the connecting surfaces.
        • After connecting, check if the quick connector and the charcoal canister are securely connected by pulling on them.
        Fig 7: Connecting Fuel Tank Vent Hose To Charcoal Canister
        G05008963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Connect the fuel filler pipe.
      1. Install the fuel tube connector to the fuel filler pipe.
      2. Install the fuel filler pipe clamp.
        NOTE:
        • Before connecting the pipe, make sure that it is not damaged. Make sure that there is no dirt present on the connecting surfaces.
        • After connecting, check if the fuel filler pipe and the fuel tank are securely connected by pulling on them.

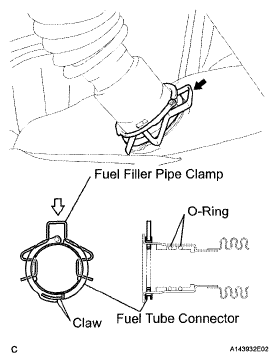

          Fig 8: Connecting Fuel Filler Pipe
          G05008964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Install the 2 bolts to the fuel tank filler pipe support.

        Torque: 18 N*m (185 kgf*cm, 13 ft.*lbf)

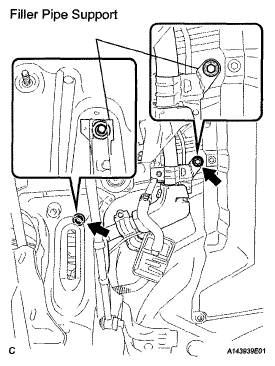

        Fig 9: Locating Fuel Tank Filler Pipe Support Bolts
        G05008947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Connect the No. 1 fuel tube.
      1. Push the fuel tube connector into the pipe until the fuel tube connector makes a "click" sound.
        NOTE:
        • Before connecting the tube, make sure that it is not damaged. Make sure that there is no dirt present on the connecting surfaces.
        • After connecting, check if the fuel tube connector and the fuel tank are securely connected by pulling on them.

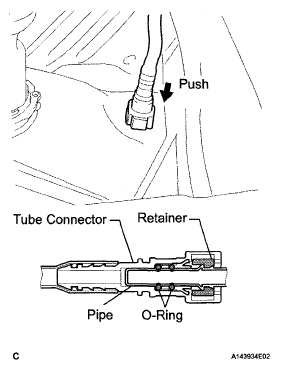

        Fig 10: Pushing Fuel Tube Connector Into Pipe
        G05008966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Connect the fuel pump tube.
      1. Push the fuel connector into the pipe and push up the retainer so that the claws engage.
        NOTE:
        • Before connecting the tube, make sure that it is not damaged. Make sure that there is no dirt present on the connecting surfaces.
        • After connecting, check if the fuel tube connector and the pipe are securely connected by pulling on them.
        Fig 11: Connecting Fuel Pump Tube
        G04974978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL FUEL TANK PROTECTOR LOWER CENTER
    1. Install the 4 bolts and fuel tank protector lower center.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

      Fig 12: Locating Fuel Tank Protector Lower Center Bolts
      G04974956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL REAR STABILIZER BAR NO. 1 BRACKET
    1. Install the 2 rear stabilizer bar No. 1 brackets with the 4 bolts.

      Torque: 31 N*m (316 kgf*cm, 23 ft.*lbf)

      Fig 13: Locating Rear Stabilizer Bar No. 1 Brackets With 4 Bolts
      G05008943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL NO. 3 PARKING BRAKE CABLE ASSEMBLY
    1. Install the No. 3 parking brake cable assembly with the bolt and nut.

      Torque:

      Bolt

      6.0 N*m (61 kgf*cm, 53 in.*lbf)

      Nut

      8.5 N*m (87 kgf*cm, 75 in.*lbf)

      Fig 14: Locating No. 3 Parking Brake Cable Assembly With Bolt And Nut
      G04974954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL NO. 2 PARKING BRAKE CABLE ASSEMBLY
    1. Install the No. 2 parking brake cable assembly with the bolt and nut.

      Torque:

      Bolt

      6.0 N*m (61 kgf*cm, 53 in.*lbf)

      Nut

      8.5 N*m (87 kgf*cm, 75 in.*lbf)

      Fig 15: Locating No. 2 Parking Brake Cable Assembly With Bolt And Nut
      G04974953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL CENTER EXHAUST PIPE ASSEMBLY

    HINT:

    See INSTALLATION .

  13. INSTALL NO. 1 FLOOR UNDER COVER
    1. Install the No. 1 floor under cover with the 6 grommets.
      Fig 16: Locating No. 1 Floor Under Cover With Grommets
      G05008939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL NO. 2 FLOOR UNDER COVER
    1. Install the No. 2 floor under cover with the 2 clips and 6 grommets.
      Fig 17: Locating No. 2 Floor Under Cover With Clips And Grommets
      G05008940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE  (See INSTALLATION  )
  16. INSTALL FUEL TANK VENT TUBE SET PLATE  (See INSTALLATION  )
  17. CONNECT FUEL PUMP TUBE SUB-ASSEMBLY  (See INSTALLATION  )
  18. ADD FUEL
  19. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  20. INSPECT FOR FUEL LEAK  (See ON-VEHICLE INSPECTION  )
  21. INSPECT FOR EXHAUST GAS LEAK
  22. INSTALL REAR FLOOR SERVICE HOLE COVER  (See INSTALLATION  )
  23. INSTALL REAR SEAT CUSHION ASSEMBLY  (See INSTALLATION )
  24. PERFORM INITIALIZATION
    1. Perform initialization procedure (See INITIALIZATION ).

      HINT:

      Some vehicle systems require initialization after reconnecting the cable to the negative battery terminal.
