Fuel Pump: Installation

INSTALL FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE
1. Install a new gasket to the fuel suction tube.

  Fig 1: Identifying Gasket To Fuel Suction Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the fuel suction tube.
  NOTE:
  - Do not damage the fuel pump filter.
  - Be careful that the arm of the sender gauge does not bend.

    Fig 2: Identifying Fuel Suction Tube
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL TANK VENT TUBE SET PLATE
1. Align the mark of the set plate with the fuel suction tube.
2. Install the set plate with the 8 bolts.
  Torque: 5.9 N*m (60 kgf*cm, 52 in.*lbf)

  Fig 3: Locating Set Plate With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT FUEL PUMP TUBE SUB-ASSEMBLY
1. Install the fuel pump tube with the tube joint clip.
  NOTE:
  - Check that there are no scratches or foreign objects on the connecting part.
  - Check that the fuel tube joint is inserted securely.
  - Check that the tube joint clip is on the collar of the fuel tube joint.
  - After installing the tube joint clip, check that the fuel tube joint is pulled off.

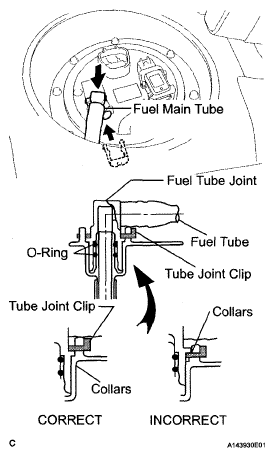

  Fig 4: Installing Fuel Pump Tube With Tube Joint Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSPECT FOR FUEL LEAK (See ON-VEHICLE INSPECTION )
INSTALL REAR FLOOR SERVICE HOLE COVER
1. Connect the vapor pressure sensor connector (2).
2. Connect the fuel pump connector (*1)
3. Install the rear floor service hole cover with new butyl tape.
INSTALL REAR SEAT CUSHION ASSEMBLY (See INSTALLATION )

Fig 5: Locating Fuel Pump Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PERFORM INITIALIZATION
1. Perform initialization procedure (See INITIALIZATION ).
  HINT:

  Some vehicle systems require initialization after reconnecting the cable to the negative battery terminal.
