Fuel Tank: Installation

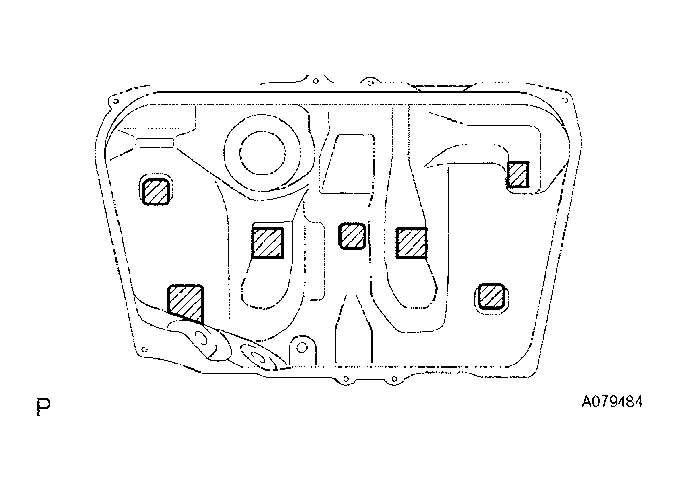

1. Install 7 new fuel tank cushions to the fuel tank.

Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

1. Install the 4 clip nuts.
   Fig 1: Installing Clip Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 fuel tank bands with the 2 pins.
3. Connect the fuel tank vent hose.
4. Connect the fuel tank inlet pipe with the fuel filler pipe clamp.
5. Tighten the set 2 bolts of the fuel tank bands.

   Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

6. Connect the fuel tube No. 1.
   1. Push the fuel tube connector into the pipe until the fuel tube connector makes a "click" sound.
      NOTE:

      • Check if there is any damage or foreign objects on the connected part.
      • After connecting, check if the fuel tube connector and the pipe are securely connected by trying to pull them apart.

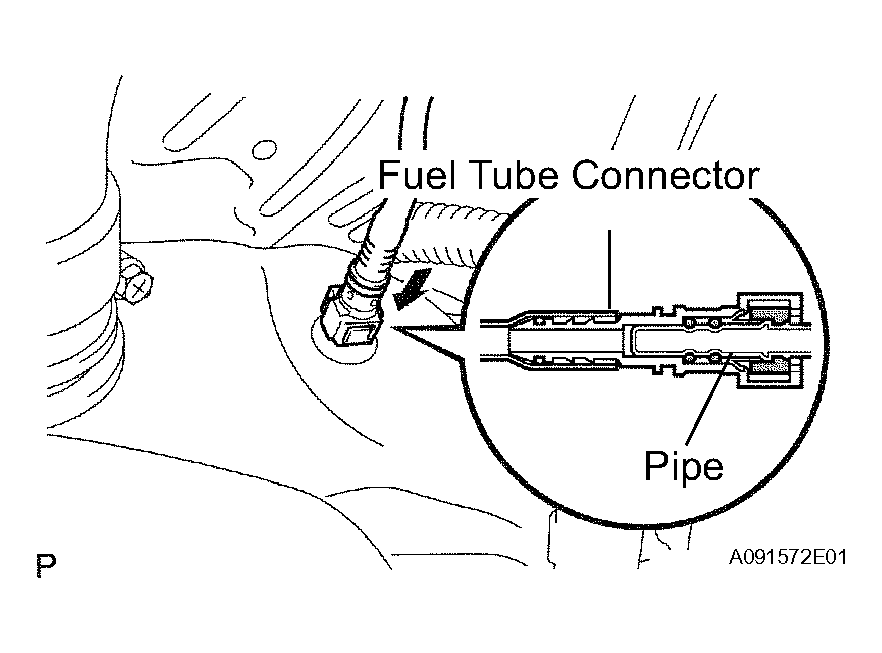

      Fig 2: Pushing Fuel Tube Connector Into Pipe

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Connect the fuel pump tube.
   1. Push in the fuel tube connector to the pipe and push up the retainer so that the claws lock.
      NOTE:

      • Check if there is any damage or foreign objects on the connected part.
      • After connecting, check if the fuel tube connector and the pipe are securely connected by trying to pull them apart.

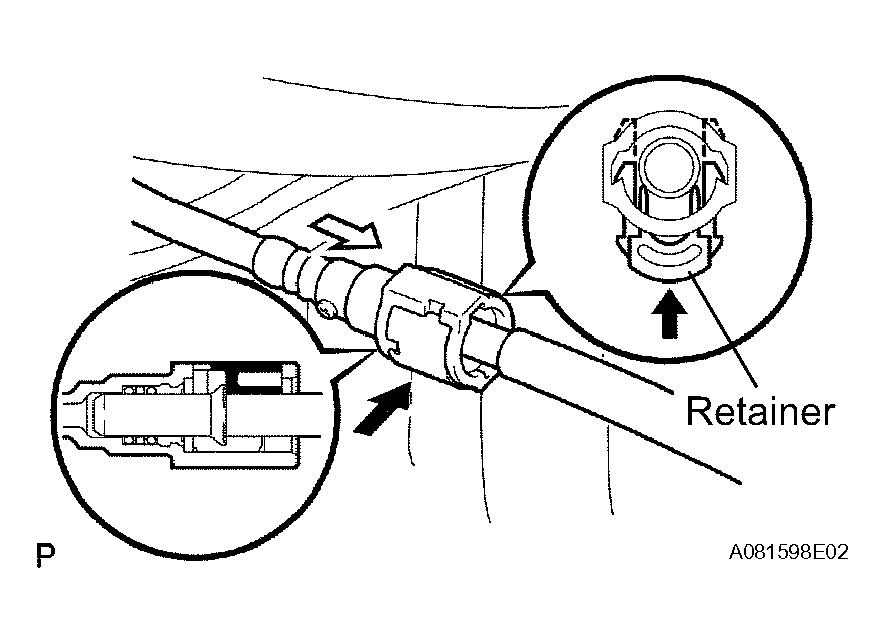

      Fig 3: Pushing In Fuel Tube Connector To Pipe And Pushing Up Retainer So Claws Lock

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

1. Install 2 new gaskets and the exhaust pipe with the 2 bolts and 4 new nuts.

   Torque: 56 N*m (571 kgf*cm, 41 ft.*lbf)

HINT:

See INSTALLATION

HINT:

See INSTALLATION

HINT:

See INSTALLATION

HINT:

See ON-VEHICLE INSPECTION

HINT:

See INSTALLATION

HINT:

See REAR SEAT ASSEMBLY (FOR COUPE) , INSTALLATION

HINT:

See INSTALLATION
