Fuel Injector: Installation

1. Install a new grommet to the injector.
2. Apply a light coat of grease or gasoline to a new O-ring, and install it to the injector.

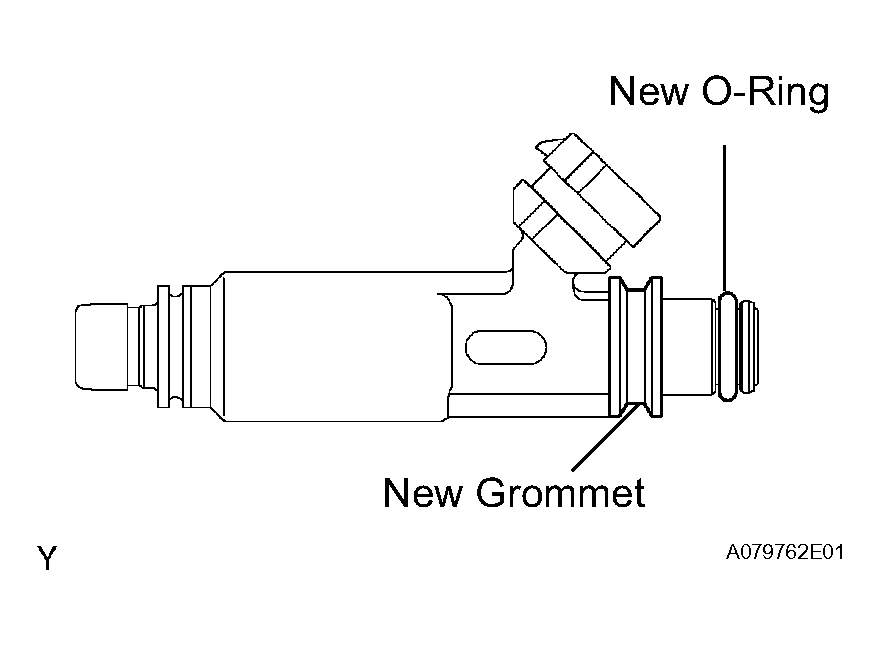

   Fig 1: Identifying New Grommet And New O-Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Apply a light coat of grease or gasoline on the place where the fuel delivery pipe contacts the O-ring.
4. Push the fuel injector while twisting it back and forth to install it in the fuel delivery pipe.

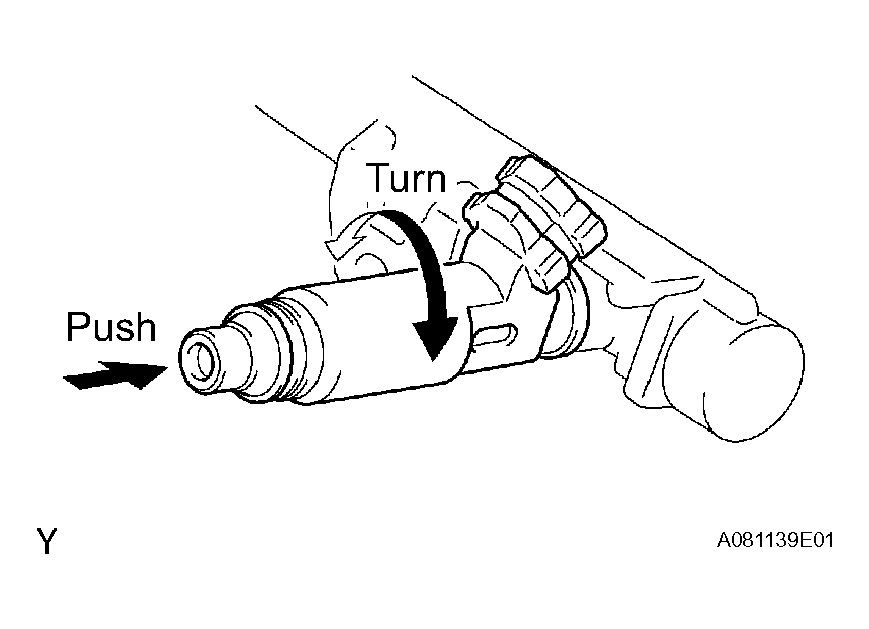

   Fig 2: Pushing Fuel Injector While Twisting It Back And Forth To Install It In Fuel Delivery Pipe

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • Be careful not to twist the O-ring.
   • After installing the fuel injector, check that it turns smoothly. If not, reinstall it with a new O-ring.
5. Install 6 new insulators and the 4 delivery pipe No. 1 spacers to the intake manifold.
6. Place the 2 fuel delivery pipes and the 6 fuel injectors together on the intake manifold.
   NOTE: Be careful not to drop the fuel injectors when installing the fuel delivery pipe.
7. Temporarily install the 4 bolts which are used to attach the fuel delivery pipe to the intake manifold.
   NOTE: After installing the fuel injector, check that it turns smoothly. If not, reinstall it with a new O-ring.

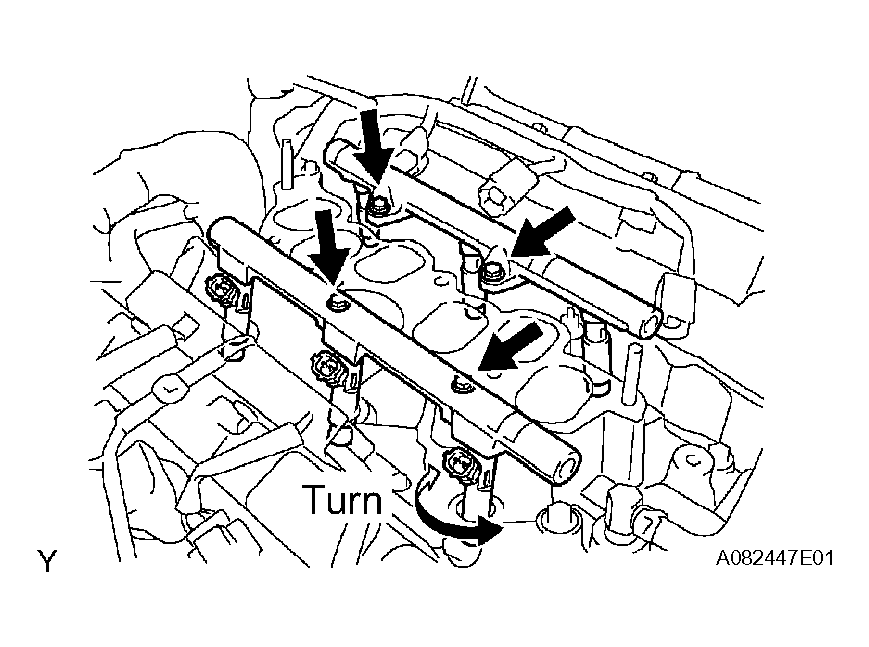

   Fig 3: Temporarily Installing Bolts Which Are Used To Attach Fuel Delivery Pipe To Intake Manifold And Checking It Turns Smoothly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Tighten the 4 bolts.

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

9. Connect the 6 fuel injector connectors.

1. Install 2 new gaskets and the fuel pipe No. 2 union bolt.

   Torque: 33 N*m (337 kgf*cm, 24 ft.*lbf)

2. Install 2 new gaskets and the fuel pressure pulsation damper.

   Torque: 33 N*m (337 kgf*cm, 24 ft.*lbf)

3. Install the fuel pipe No. 1 with the bolt.

   Torque: 20 N*m (204 kgf*cm, 14 ft.*lbf)

1. Install a new gasket to the intake air surge tank.
2. Install the intake air surge tank and emission control valve bracket with the 2 nuts.

   Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)

3. Using an 8 mm socket hexagon wrench, tighten the 4 bolts.

   Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)

4. Install the surge tank stay No. 2 with the 2 bolts.

   Torque: 20 N*m (204 kgf*cm, 14 ft.*lbf)

5. Install the surge tank stay No. 1 with the 2 bolts.

   Torque: 20 N*m (204 kgf*cm, 14 ft.*lbf)

6. Install the engine hunger No. 1 with the 2 bolts.

   Torque: 20 N*m (204 kgf*cm, 14 ft.*lbf)

7. Install the pressure feed tube with the 3 nuts.

   Torque: 7.8 N*m (80 kgf*cm, 69 in.*lbf)

8. Connect the ventilation hose.
9. Connect the union to check valve hose.
10. Connect the water by-pass hose No. 2.
11. Connect the water by-pass hose No. 3.
12. Connect the throttle motor connector.

Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

HINT:

See COOLANT

HINT:

See COOLING SYSTEM

HINT:

See ON-VEHICLE INSPECTION

HINT:

See INSTALLATION

1. Install the upper brace with the 2 nuts.

   Torque: 80 N*m (815 kgf*cm, 59 ft.*lbf)
