Transmission Control Cable ASSY (ATM): Replacement

  1. DISCONNECT BATTERY NEGATIVE TERMINAL
  2. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY (See step 41 on  REPLACEMENT  )
  3. REMOVE AIR CONDITIONING RADIATOR ASSY (See step 21 on  OVERHAUL  )
  4. REMOVE AIR BAG ECU ASSY (See  REPLACEMENT  )
  5. REMOVE AIR CLEANER ASSY (See step 11 on  REPLACEMENT - 2AZ-FE  or step 16 on  REPLACEMENT - 1MZ-FE/3MZ-FE  )
  6. REMOVE INTAKE AIR CONNECTOR SUB-ASSY (See  REPLACEMENT - 2AZ-FE  or  REPLACEMENT - 1MZ-FE/3MZ-FE  )
  7. REMOVE EXHAUST PIPE ASSY (See  REPLACEMENT  )
  8. REMOVE TRANSMISSION CONTROL CABLE ASSY
    1. Remove the 2 bolts and disconnect shift cable grommet retainer No. 2.
      Fig 1: Identifying Shift Cable Grommet Retainer No. 2 Bolts
      G04393419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut from the control shaft lever.
    3. Disconnect the control cable from the control shaft lever.
      Fig 2: Identifying Control Shaft Lever Nut
      G04393420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the clip and disconnect the control cable from the control cable bracket.
      Fig 3: Disconnecting Control Cable From Control Cable Bracket
      G04393421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the control cable from the control cable clamp.

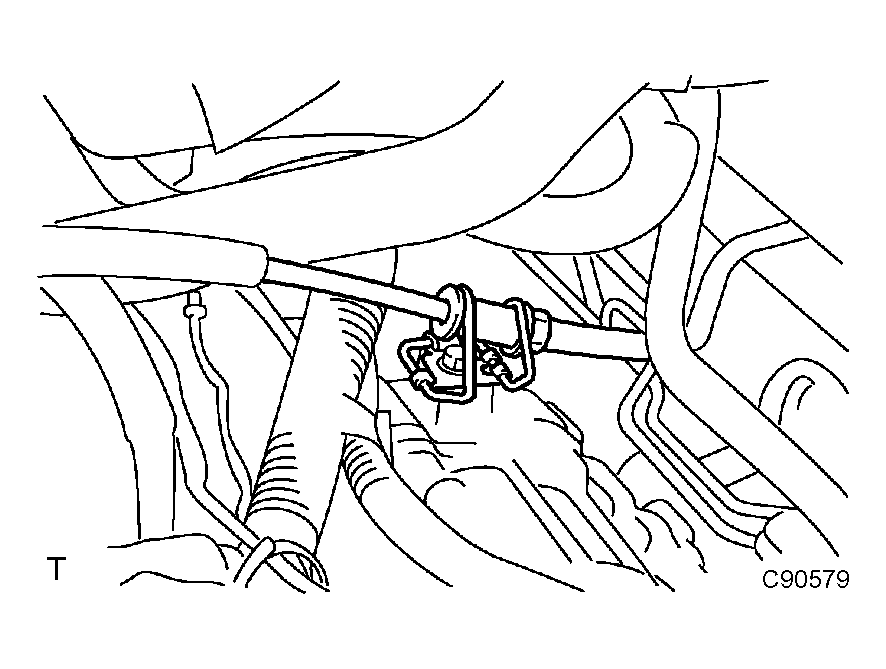

      Fig 4: Disconnecting Control Cable From Control Cable Clamp
      G04393422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disconnect the floor shift cable from the transmission floor shift assy.
    7. Pull out the control cable from the body.
    8. Remove the shift cable grommet retainer No. 2.
      Fig 5: Disconnecting Floor Shift Cable From Transmission Floor Shift Assy
      G04393423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL TRANSMISSION CONTROL CABLE ASSY
    1. Put in the control cable to the body.
    2. Install the shift cable grommet retainer No. 2 to the floor shift cable.
    3. Install the floor shift cable as shown in the illustration.

      HINT:

      • Install it with the uneven surface facing to up.
      • Fit the claws securely.

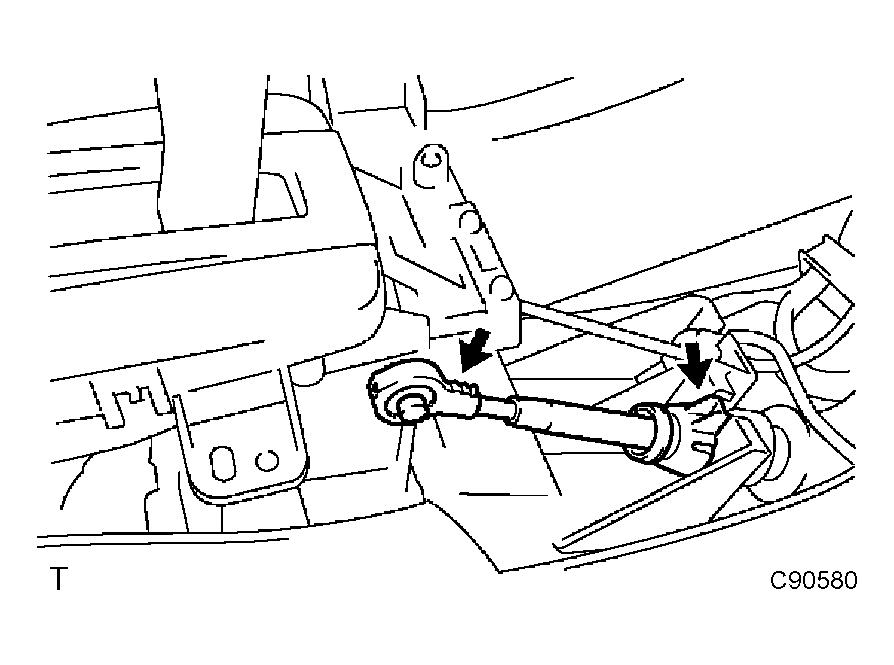

        Fig 6: Installing Floor Shift Cable
        G04393424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the control cable to the control cable clamp.
      Fig 7: Connecting Control Cable To Control Cable Clamp
      G04393425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the control cable and a new clip to the bracket.
      Fig 8: Installing Control Cable And Clip To Bracket
      G04393426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Temporarily install the control cable to the control shaft lever with nuts.

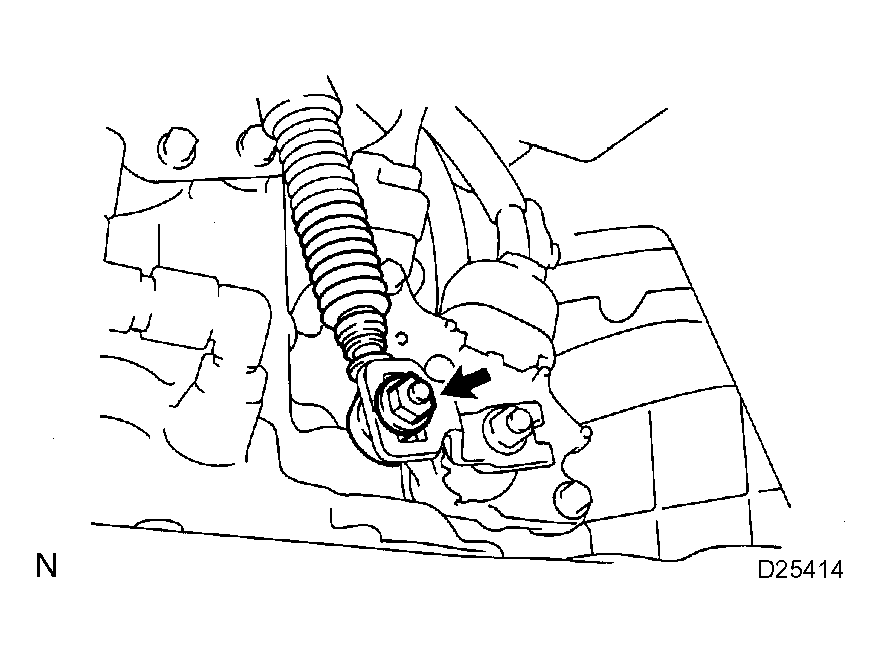

      Fig 9: Identifying Control Shaft Lever Nut
      G04393427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Install the shift cable grommet retainer No. 2 with the 2 bolts.

      Torque: 4.9 N.m (50 kgf.cm, 43 in.lbf)

      Fig 10: Identifying Shift Cable Grommet Retainer No. 2 Bolts
      G04393428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL EXHAUST PIPE ASSY (See step 13 on  REPLACEMENT  )
  11. INSTALL AIR BAG ECU ASSY (See  REPLACEMENT  )
  12. INSTALL AIR CONDITIONING RADIATOR ASSY (See  REPLACEMENT - 2AZ-FE  or  REPLACEMENT - 1MZ-FE/3MZ-FE  )
  13. ADJUST SHIFT LEVER POSITION (See  ADJUSTMENT  )
  14. INSPECT SHIFT LEVER POSITION (See  ADJUSTMENT  )
  15. INSTALL INTAKE AIR CONNECTOR SUB-ASSY (See  REPLACEMENT - 2AZ-FE  or  REPLACEMENT - 1MZ-FE/3MZ-FE  )
  16. INSTALL AIR CLEANER ASSY (See step 137 on  REPLACEMENT - 2AZ-FE  or step 129 on  REPLACEMENT - 1MZ-FE/3MZ-FE  )
  17. INSTALL BATTERY NEGATIVE TERMINAL
