Inspection Procedure

1. Enter the "MENU" screen by pressing the "MENU" switch.
2. Enter the volume adjustment screen by pressing the "Volume" switch.

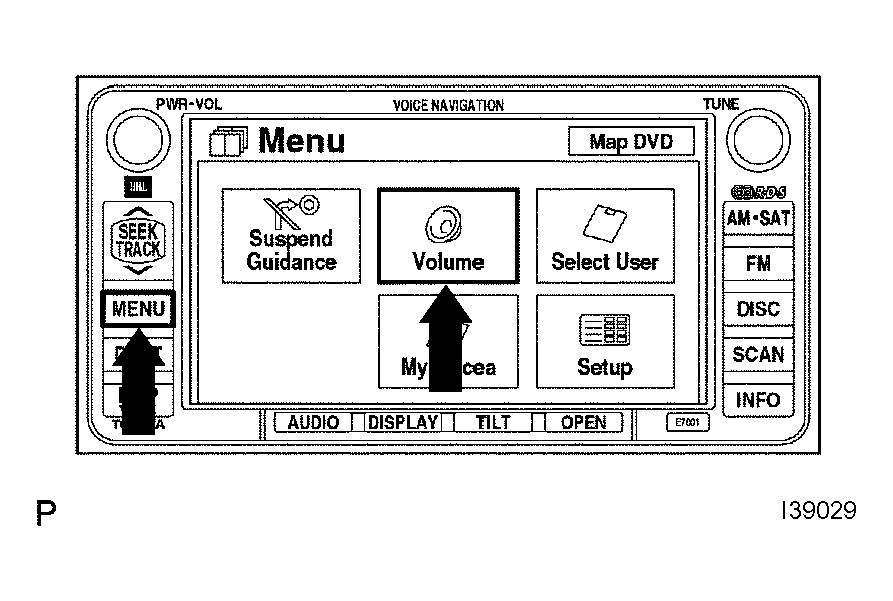

   Fig 1: Identifying Volume And MENU Switch

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3. Check that "OFF" is not selected.

   Standard: OFF is not selected.

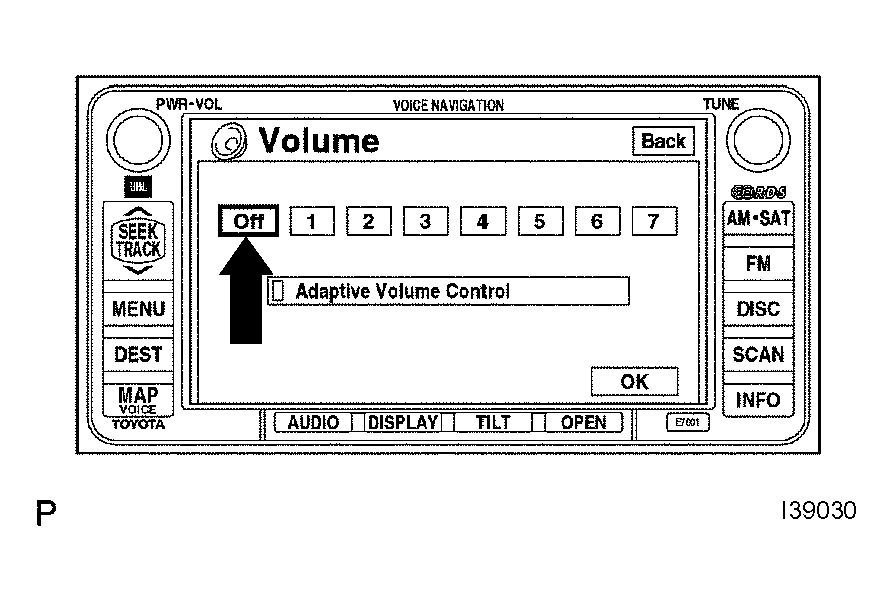

Fig 2: Identifying OFF Switch

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

NG: TURN VOICE GUIDANCE VOLUME UP TO 4 USING VOICE ADJUSTMENT SWITCHES

OK: Go to next step

1. Enter the "MENU" screen by pressing the "MENU" switch.
2. Enter the "Setup" screen by pressing the "Setup" switch.

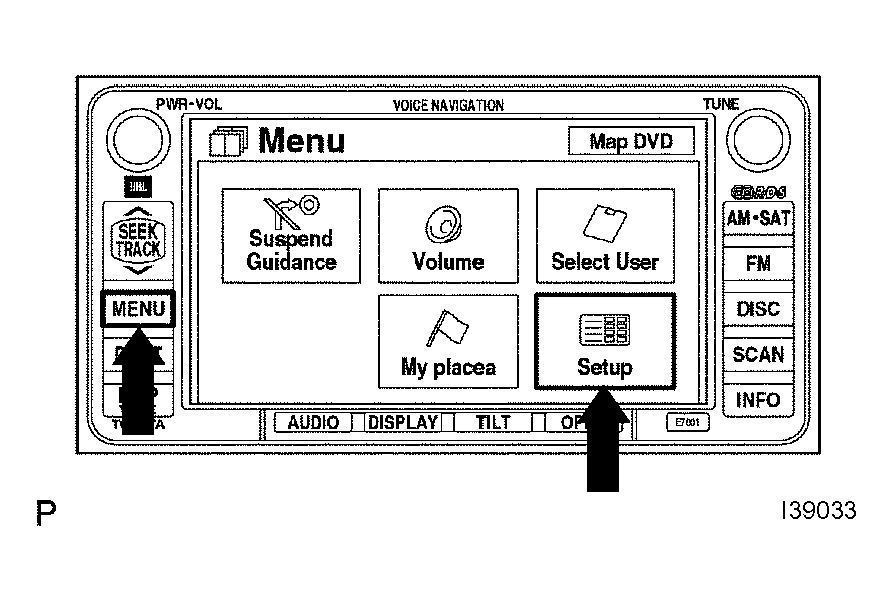

   Fig 3: Identifying MENU And Setup Switch

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3. Check that "Auto Voice Guidance" is not OFF.

   Standard: Auto voice guidance is not OFF.

4. Check if "Voice Guidance in All Modes" is ON.

   Standard: Voice guidance in all modes is ON.

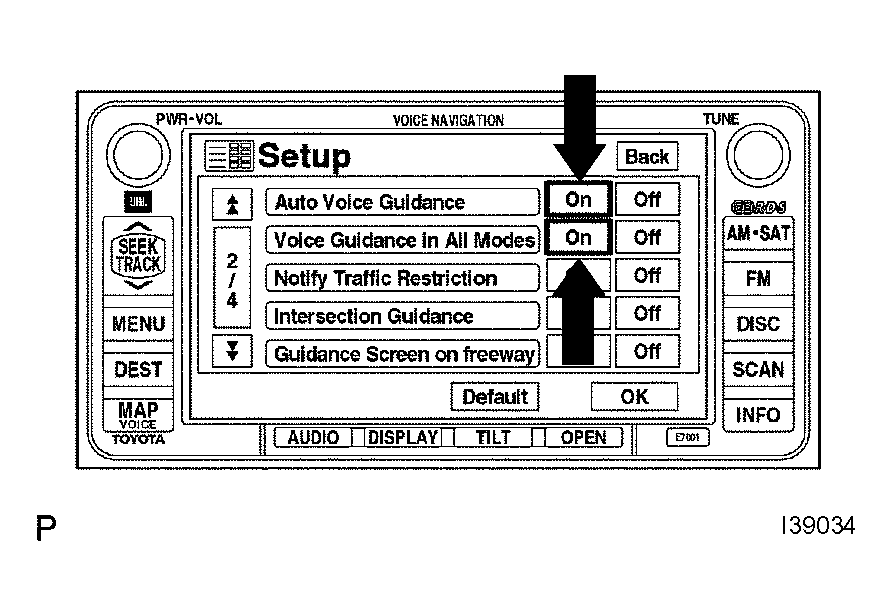

Fig 4: Identifying Voice Guidance ON

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

NG: TURN AUTO VOICE GUIDANCE TO "ON"

OK: Go to next step

1. Check that the map disc is not deformed or cracked.

   Standard: No deformations or cracks appear on the map disc.

   Fig 5: Checking For Deformations Or Cracks Of Map Disc

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

NG: REPLACE THE MAP DISC

OK: Go to next step

1. Check if audio sound can be heard from the driver's side speaker.

   Standard: Audio sound can be heard.

   NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

   OK: REPLACE RADIO AND NAVIGATION ASSY (See  REPLACEMENT  )
