Inspection Procedure

1. Check that the map disc is not deformed or cracked.

Standard: No deformations or cracks appear on the map disc.

Fig 1: Checking For Deformations Or Cracks Of Map Disc

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

NG: CHECK THE MAP DISC

OK: Go to next step

1. Check that the "MAP" indicator near the disc slot comes on.

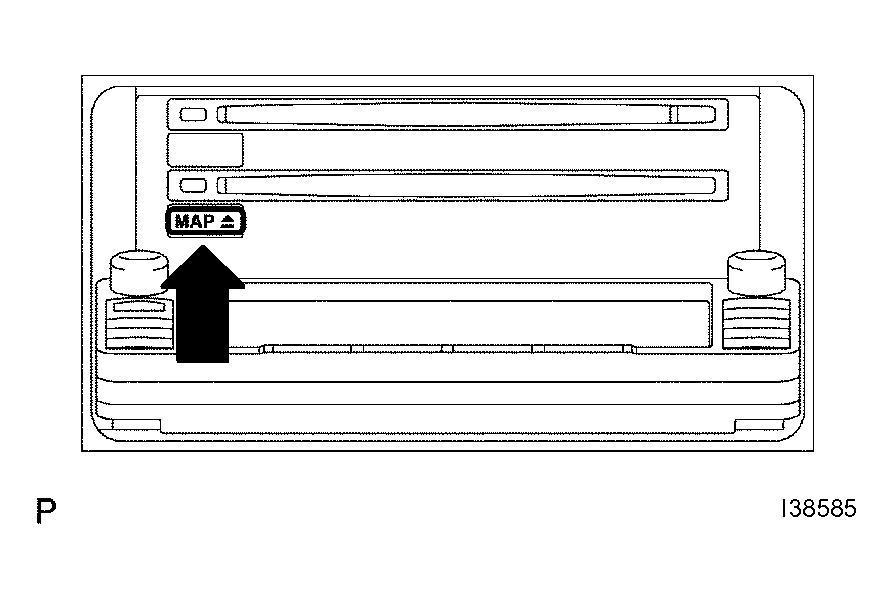

Fig 2: Identifying "MAP" Indicator

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Standard: It does not come on.

NG: PRESS THE EJECT SWITCH TO EJECT THE DISC

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
