Inspection Procedure

1. CHECK RADIO AND NAVIGATION ASSY
   1. Check if a map disc is inserted in the map disc slot.

   Standard: A map disc is inserted.

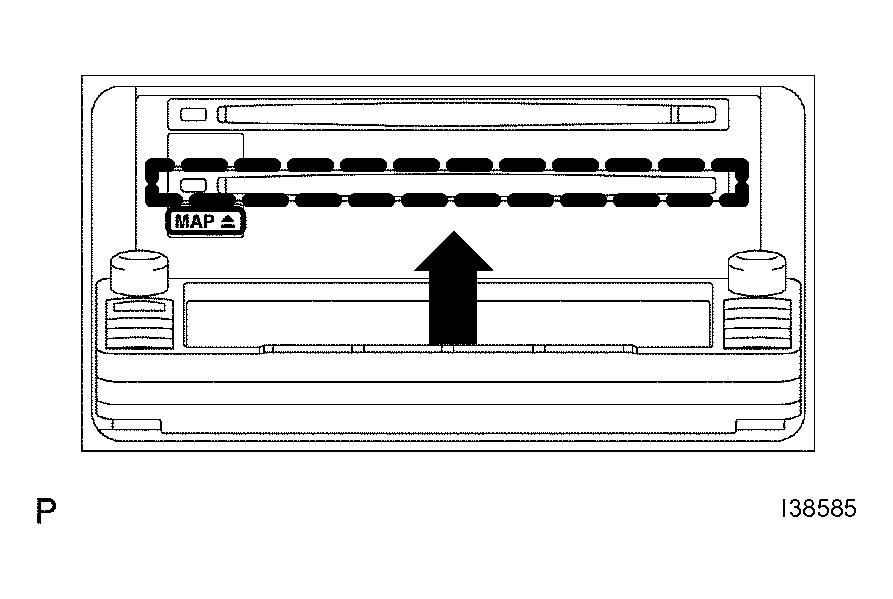

   Fig 1: Identifying Map Disc Slot

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   NG: INSERT THE MAP DISC IN THE "MAP" SIDE SLOT

   OK: Go to next step

2. CHECK THE MAP DISC

1. Check that the map disc is not deformed or cracked.

   Standard: No deformations or cracks appear on the map disc.

Fig 2: Checking For Deformations Or Cracks Of Map Disc

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

NG: REPLACE THE MAP DISC

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
