Combination Meter: Removal

WARNING: This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL LOWER (See  REMOVAL  )
  2. REMOVE INSTRUMENT PANEL FINISH PLATE
  3. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER (See  REMOVAL  )
  4. REMOVE INSTRUMENT PANEL REGISTER ASSEMBLY NO.1 (See  REMOVAL  )
  5. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See  REMOVAL  )
  6. REMOVE COMBINATION METER ASSEMBLY
    1. Remove the 3 screws.

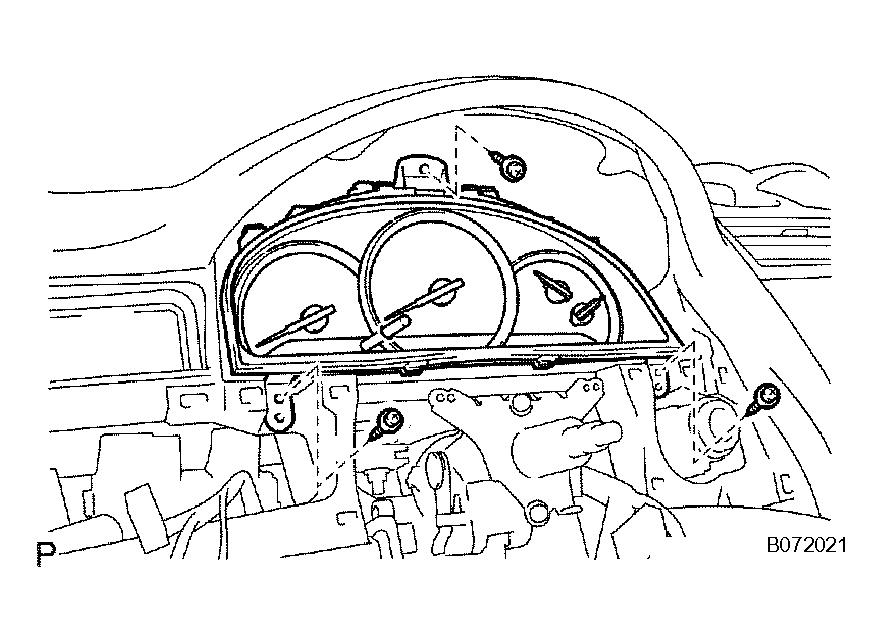

      2. Fig 1: Removing Combination Meter Assembly Screws
      G04387497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull out the combination meter assembly, then disconnect the connectors.
  7. REMOVE COMBINATION METER GLASS
    1. Disengage the 8 claws and remove the combination meter glass.

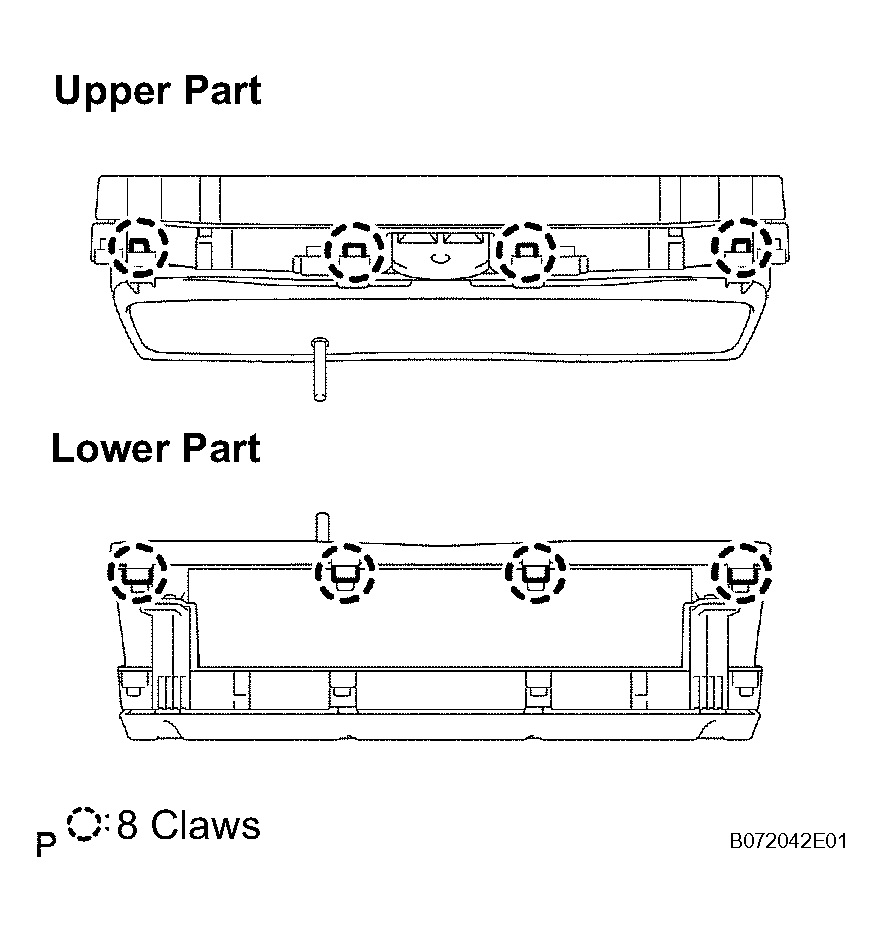

      2. Fig 2: Removing Combination Meter Glass
      G04387498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
