Instrument Panel Safety Pad: Components

WARNING: This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

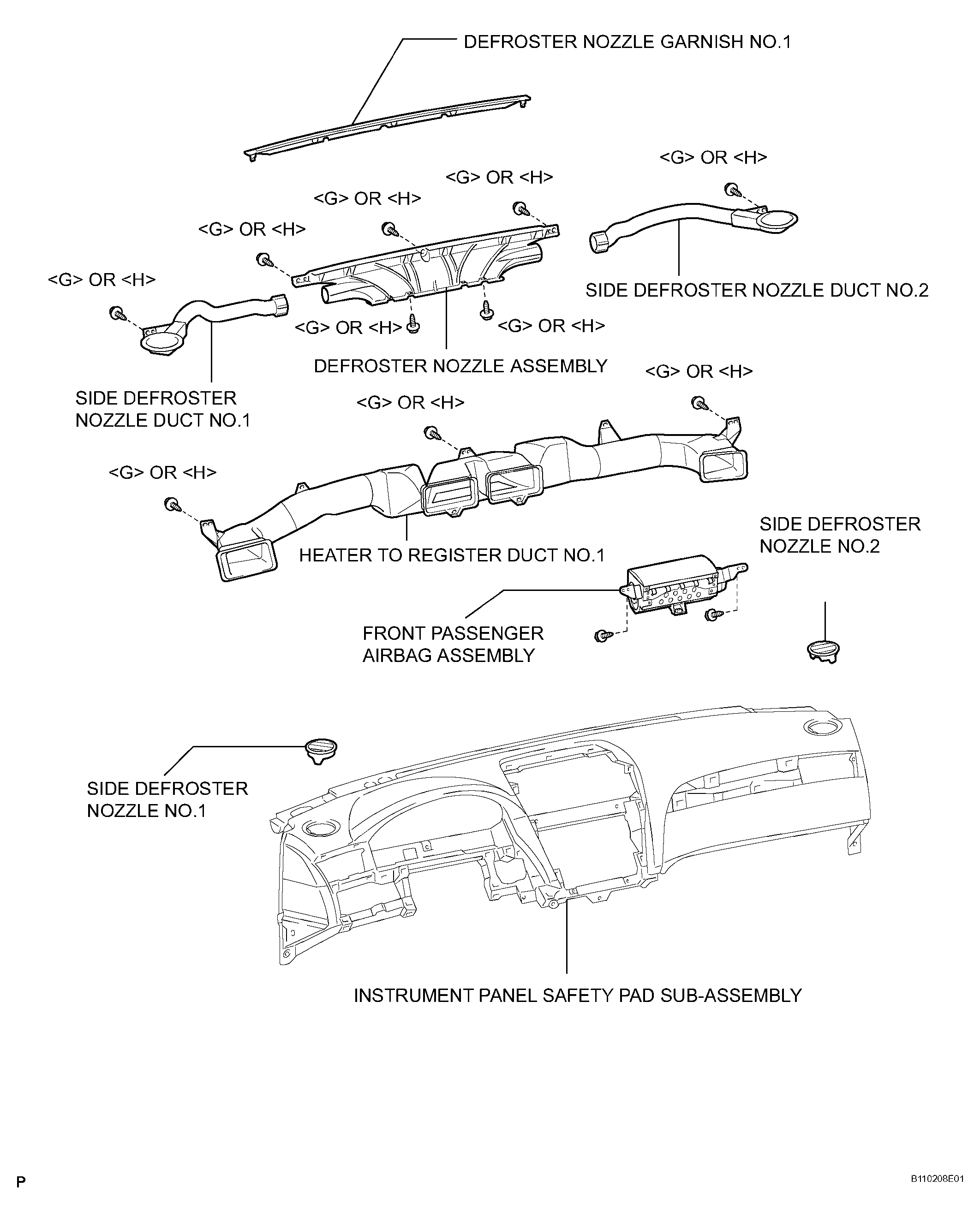

Fig 1: Instrument Panel Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

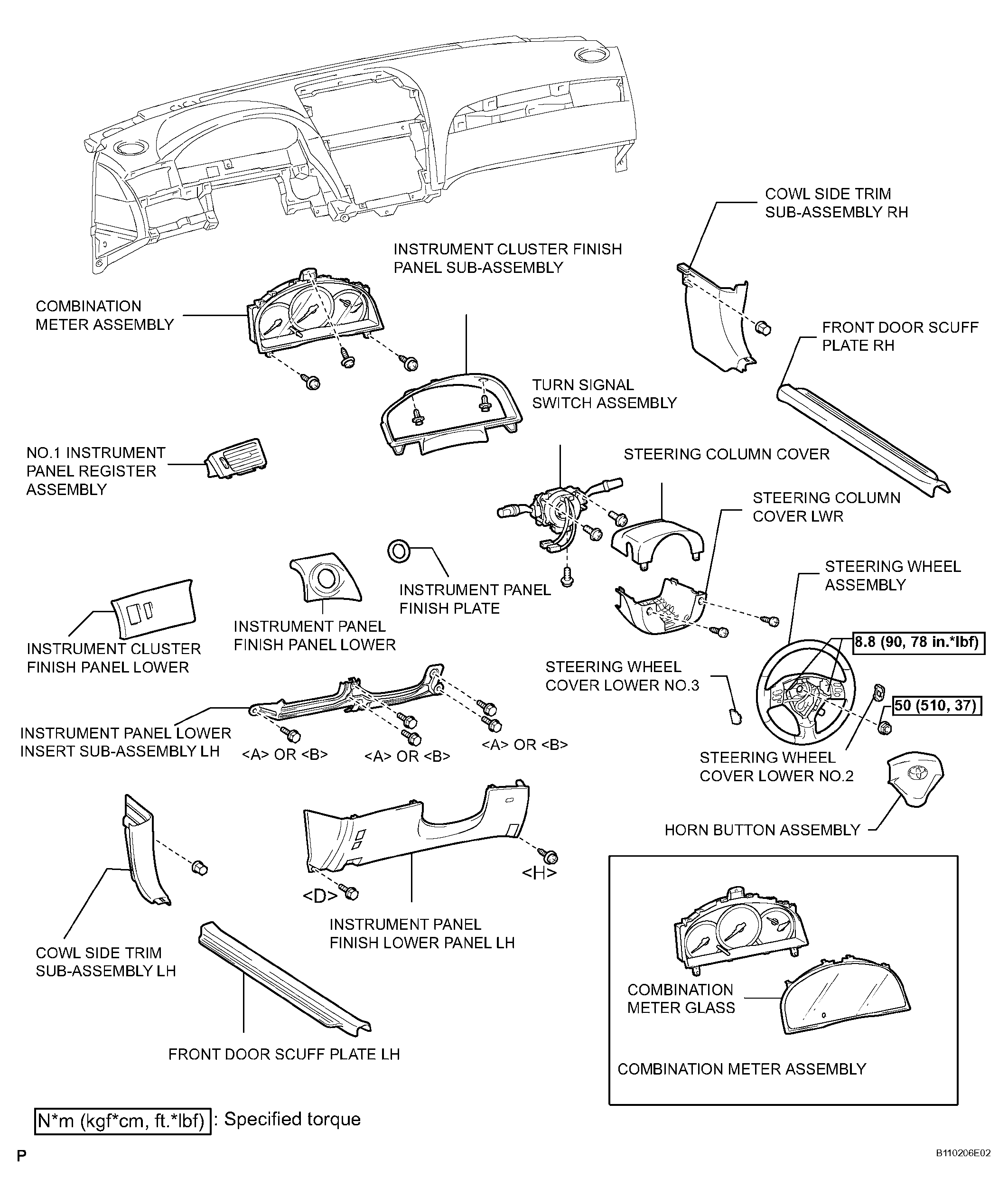

Fig 2: Instrument Panel Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

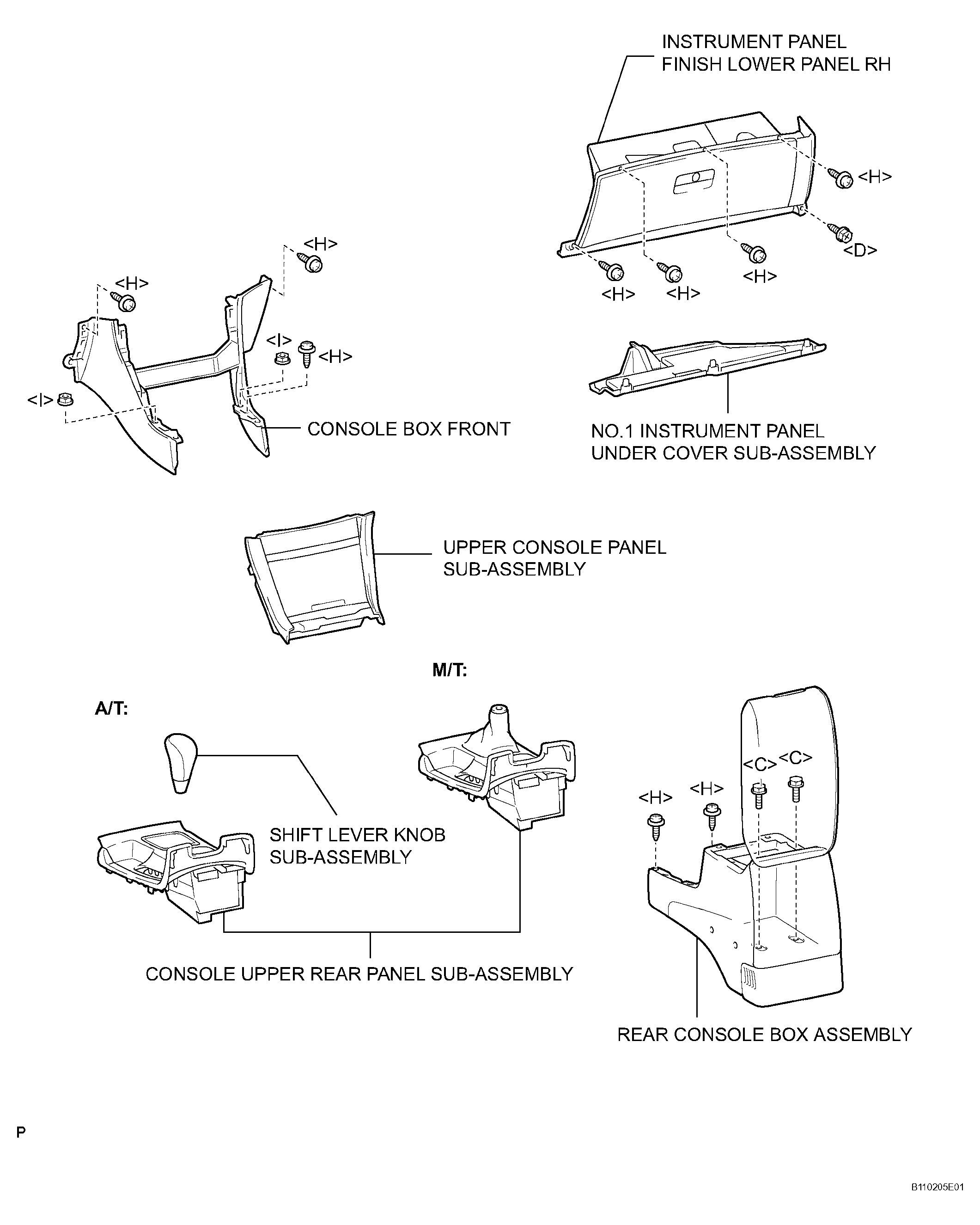

Fig 3: Identifying Instrument Panel Components (1 Of 2)

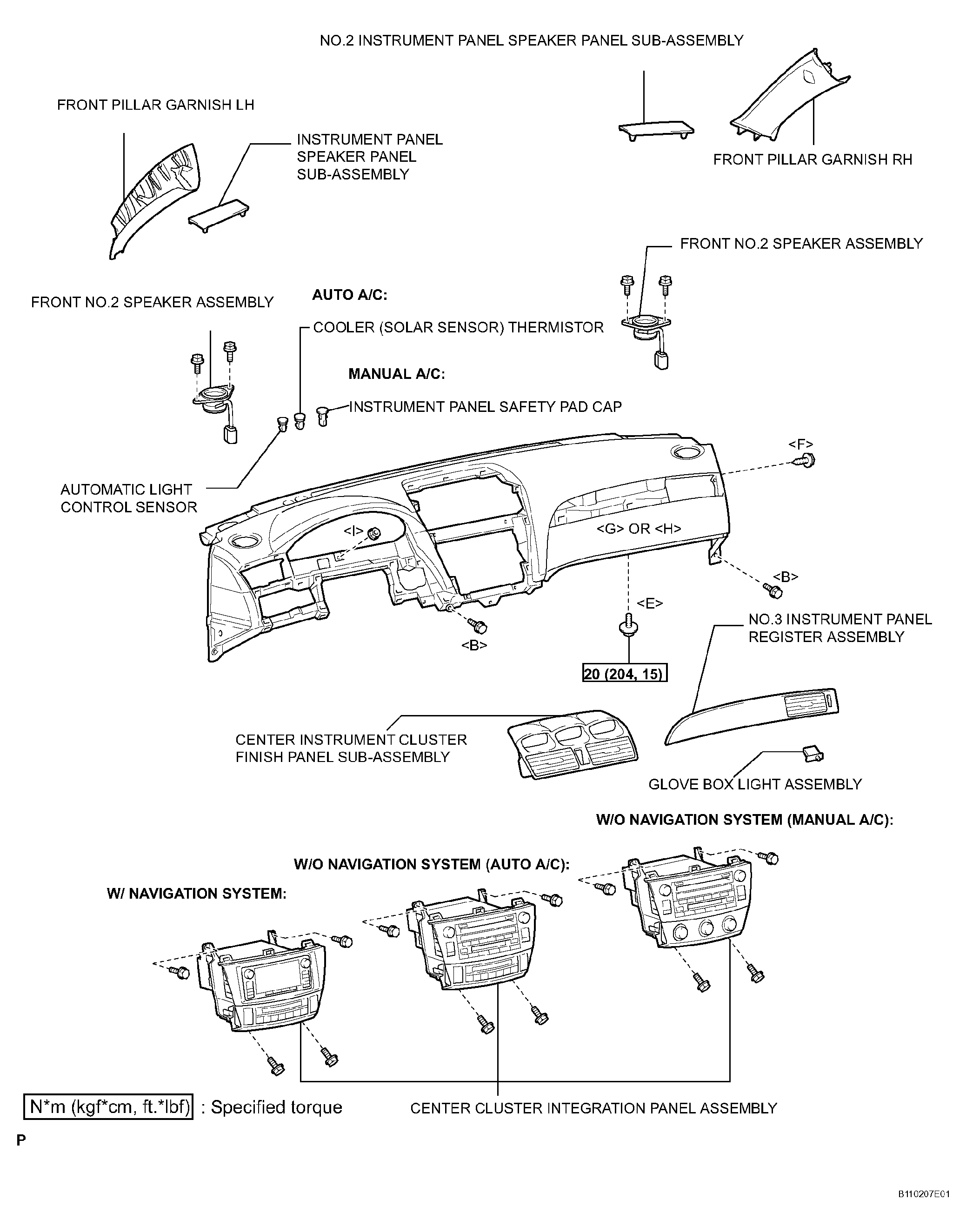

Fig 4: Identifying Instrument Panel Components (2 Of 2)
