Crankshaft Position Sensor: Installation

  1. INSTALL CRANKSHAFT POSITION SENSOR
    1. Apply a light coat of engine oil to an O-ring of the crankshaft position sensor.
    2. Install the crankshaft position sensor with the bolt.

      Torque: 10 N.m (102 kgf.cm, 7 ft.lbf)

    3. Connect the crankshaft position sensor connector.
  2. INSTALL COOLER COMPRESSOR
    1. Install the cooler compressor assy with the 4 bolts.

      Torque: 25 N.m (255 kgf.cm, 18 ft.lbf)

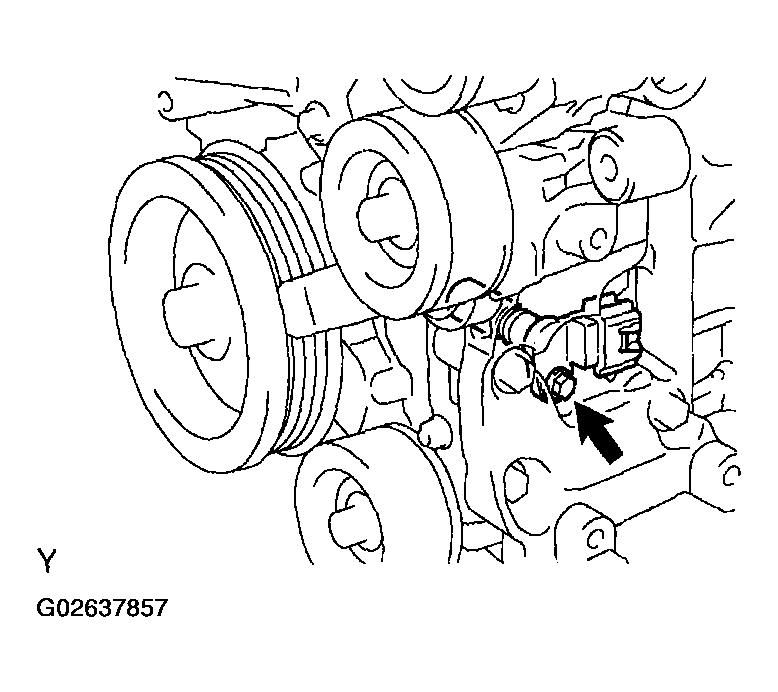

      Fig 1: Cooler Compressor Assy Bolt
      G02637857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the cooler compressor assy connector.
    3. Install the suction hose sub-assy with the bolt.

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

  3. INSTALL GENERATOR (See  INSTALLATION  )
  4. INSTALL ENGINE UNDER COVER

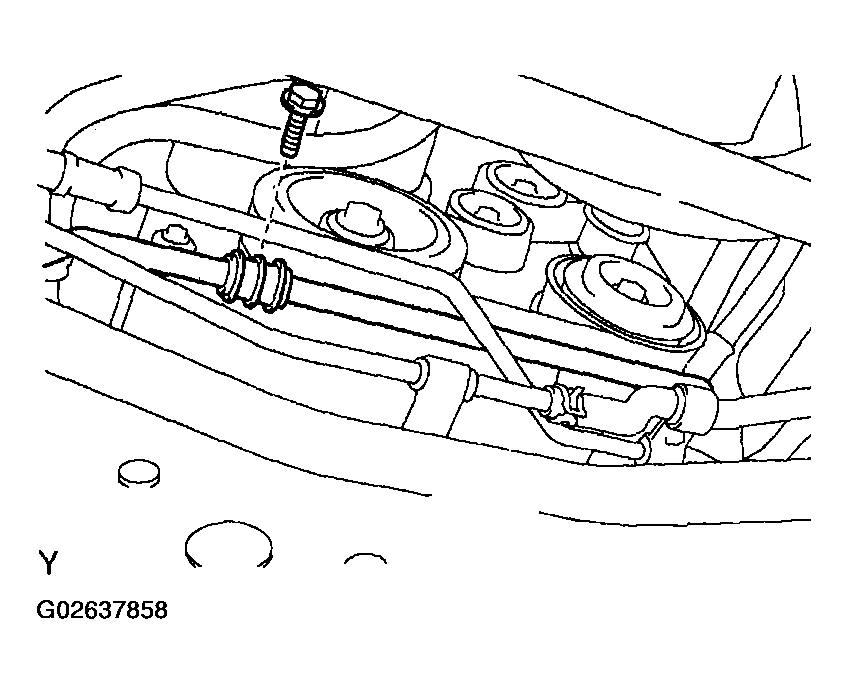

    Fig 2: Suction Hose Sub-Assy Bolts
    G02637858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
