Charging System (1GR-FE): Generator: Installation

1. Install the generator with the 2 bolts.

   Torque: 43 N.m (438 kgf.cm, 32 ft.lbf)

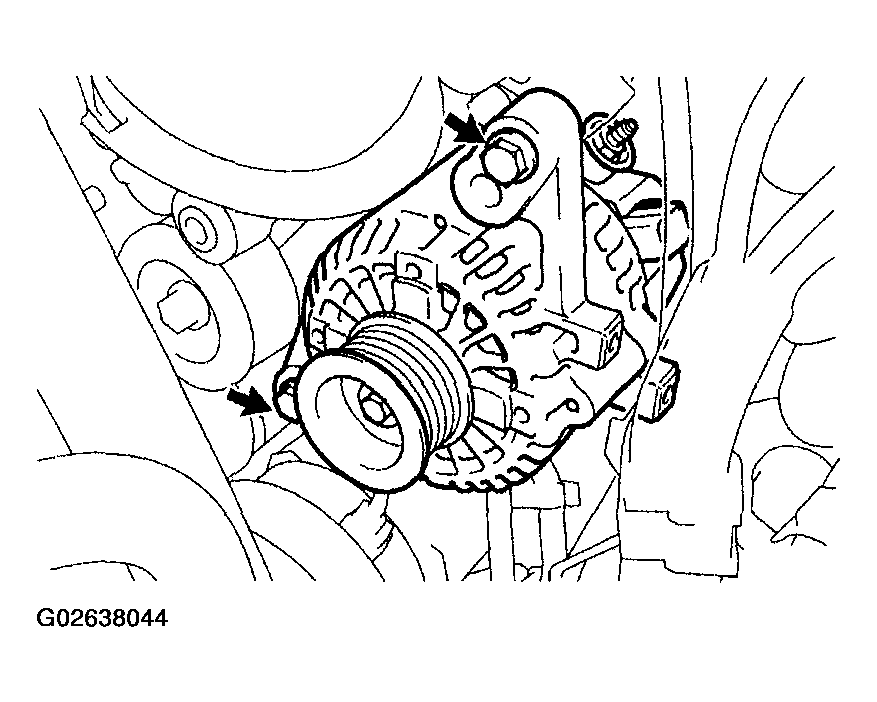

   Fig 1: Installing Bolts Of Generator

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the wire harness clamp bracket with the 2 bolts.

   Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

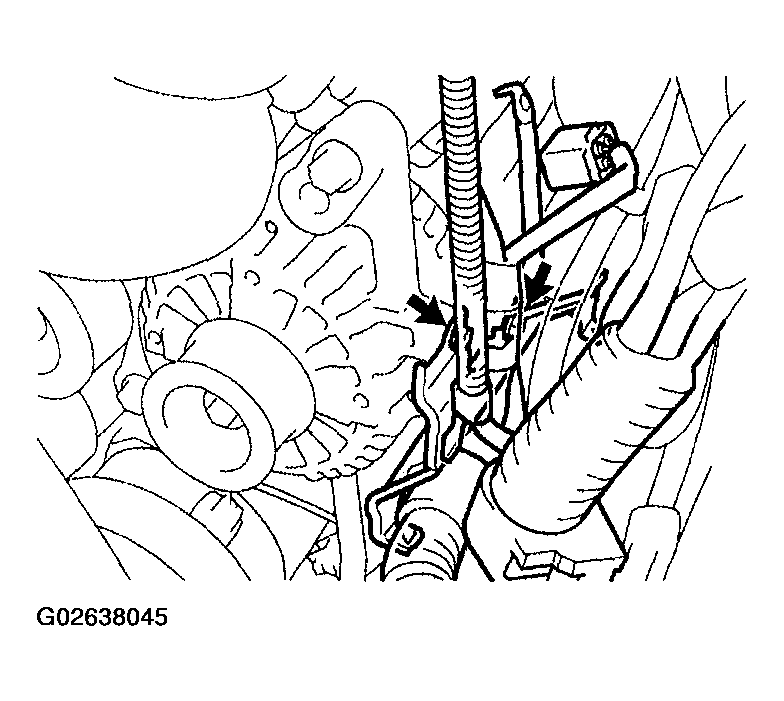

   Fig 2: Installing Bolts Of Wire Harness Clamp Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the wire harness.
   1. Connect the wire harness to the terminal B and install the nut.

      Torque: 9.8 N.m (100 kgf.cm, 7 ft.lbf)

   2. Connect the connector to the generator assy.
   3. Install the wire harness stay with the bolt.

   Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

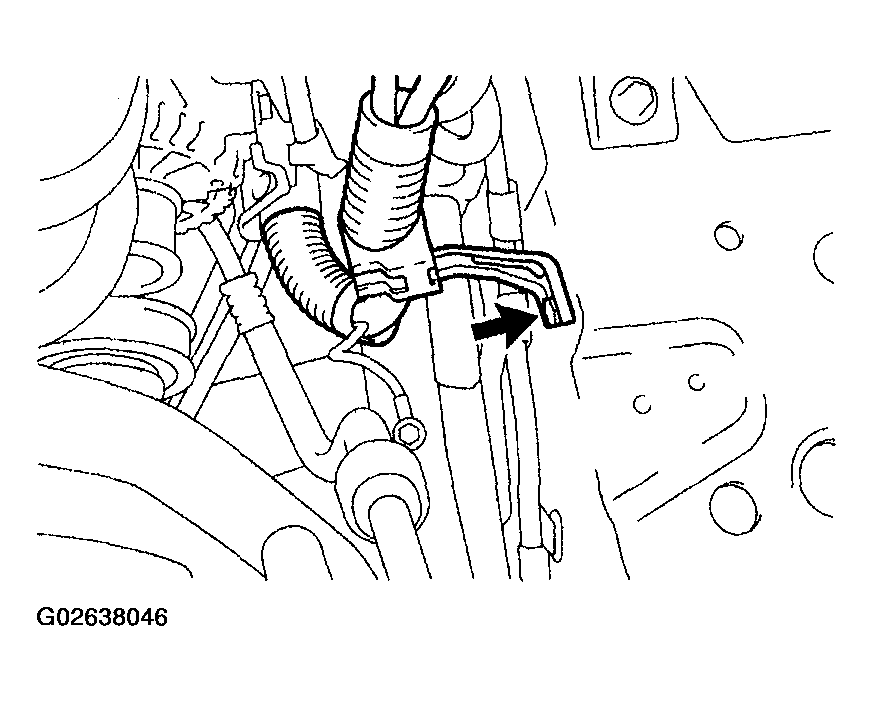

Fig 3: Installing Wire Harness Stay With Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the engine under cover sub-assy No. 1 with the 4 bolts.

Torque: 29 N.m (296 kgf.cm, 21 ft.lbf)

Install the V-bank cover with the 2 nuts.

Torque: 9.8 N.m (100 kgf.cm, 87 in.lbf)
