W/Box Speaker ASSY No.1: Replacement

HINT:

• See COMPONENTS .
• Installation is in the reverse order of removal.

1. REMOVE DECK BOARD SUB-ASSY (SEE  REPLACEMENT  )
2. REMOVE DECK FLOOR BOX REAR (SEE  REPLACEMENT  )
3. REMOVE LUGGAGE COMPARTMENT TRAY (SEE  REPLACEMENT  )
4. REMOVE BACK DOOR WEATHERSTRIP (SEE  REPLACEMENT  )
5. REMOVE DECK TRIM COVER REAR (SEE  REPLACEMENT  )
6. REMOVE TONNEAU COVER ASSY (SEE  REPLACEMENT  )
7. REMOVE REAR SEAT CUSHION ASSY AND REAR SEAT BACK ASSY (SEE  OVERHAUL  )
8. REMOVE REAR SEAT SIDE GARNISH RH (SEE  REPLACEMENT  )
9. REMOVE DECK TRIM SIDE PANEL ASSY RH
   1. Remove the 4 bolts and 4 rope hooks.

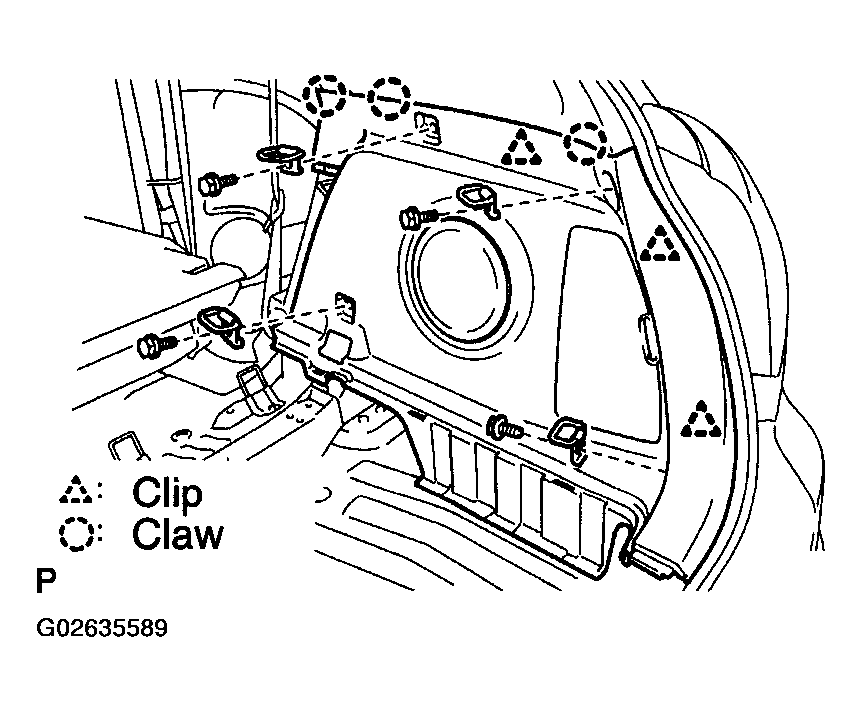

   Fig 1: Removing Bolts And Rope Hooks
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Using a screwdriver, remove the deck trim side panel assembly RH.

   HINT:

   Tape the screwdriver tip before use.

10. REMOVE W/BOX SPEAKER ASSY NO.1
    1. Disconnect the connector.
    2. Remove the 5 bolts and W/box speaker assy No.1.

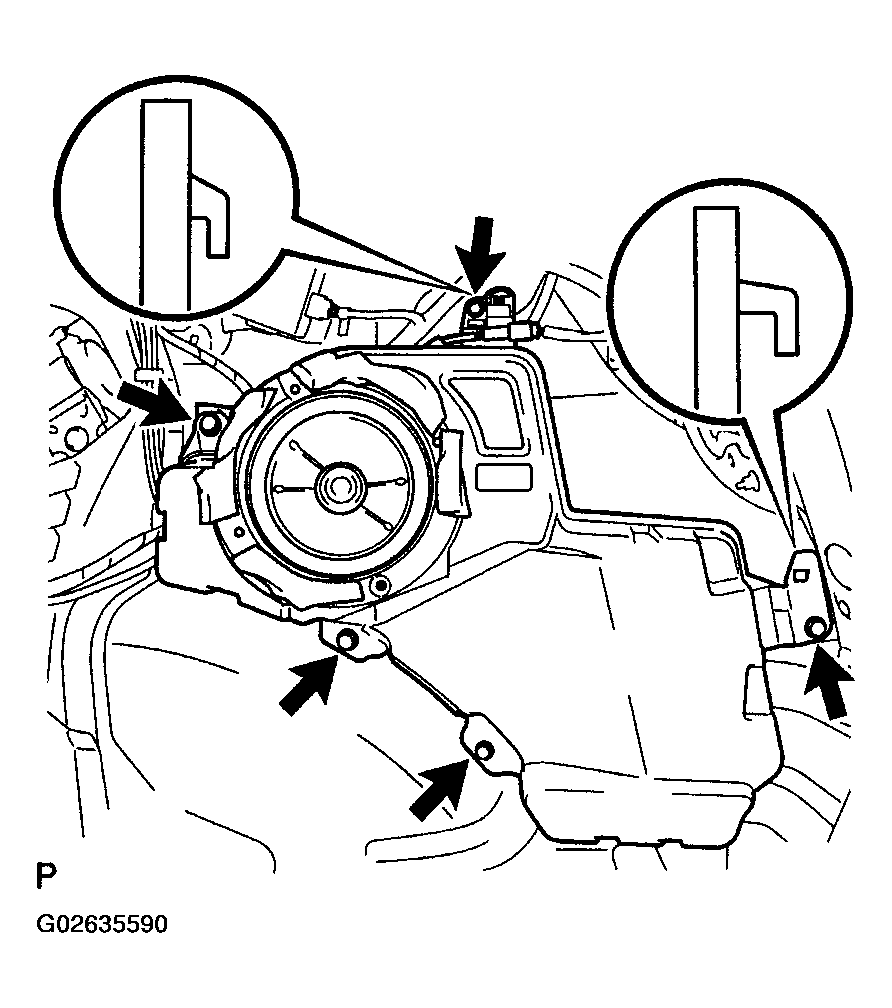

    Fig 2: Removing Bolts And W/Box Speaker Assy No.1

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
