Rear Seat: Overhaul

HINT:

• A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).
• Tape the screwdriver tip before prying parts with it.

1. REMOVE REAR SEAT ASSY LH
   1. Remove the headrest.
   2. Using a screwdriver, remove the 2 seatback hinge covers.
   3. Remove the 4 bolts and rear seat assembly LH.
2. REMOVE REAR SEAT ASSY RH
   1. Remove the headrest.
   2. Remove the bolt and rear seat lap type belt center floor anchor.
   3. Using a screwdriver, remove the 2 seatback hinge covers.
   4. Remove the 4 bolts and rear seat assembly RH.
3. REMOVE SEPARATE TYPE REAR SEATBACK ASSY LH
   1. Remove the 4 screws and rear seatback board LH.
   2. Remove the 2 bolts and rear seatback LH.
4. REMOVE SEPARATE TYPE REAR SEATBACK ASSY RH

   HINT: Use the same procedures described for the LH side.

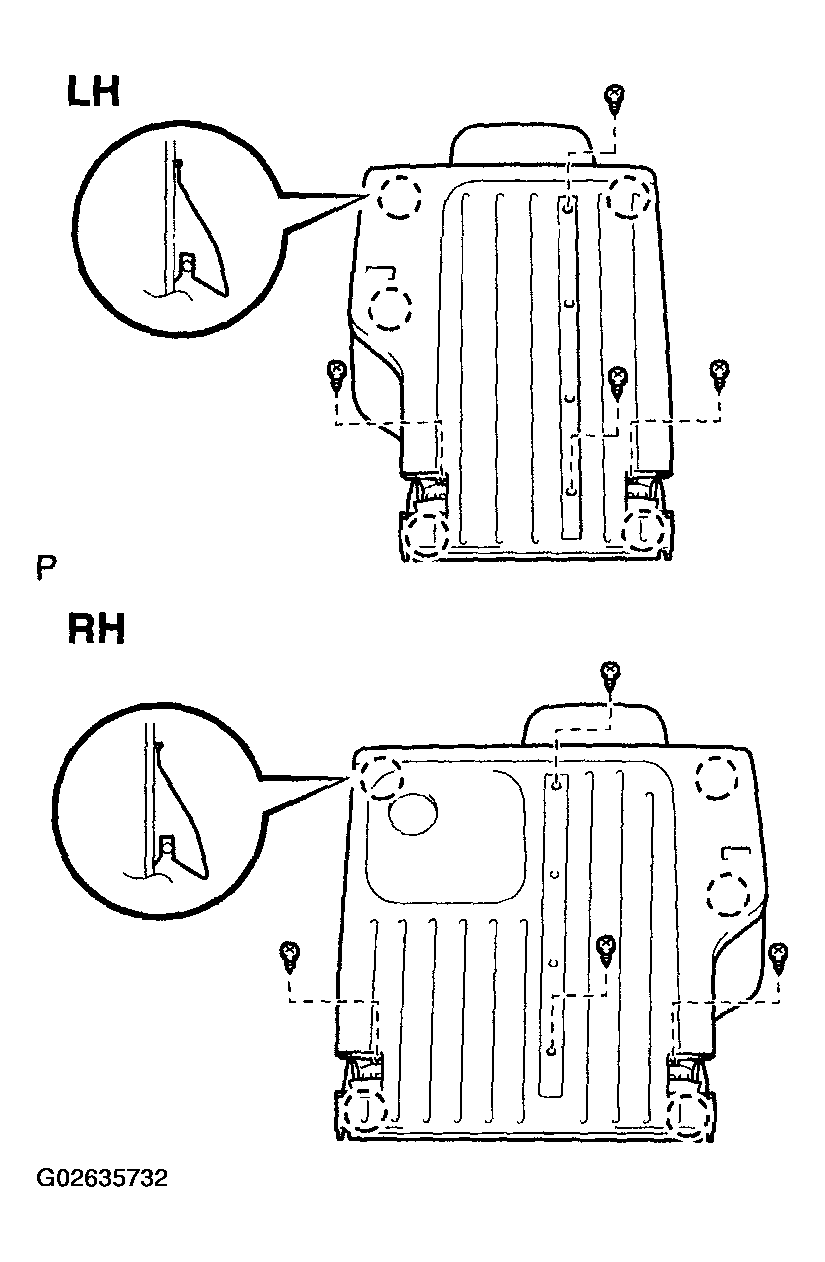

   Fig 1: Removing Separate Type Rear Seatback Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE SEPARATE TYPE REAR SEATBACK COVER LH
   1. Remove the 2 headrest supports.
   2. Remove the rear seatback lock release button.
   3. Remove the rear seatback stop button grommet.
   4. Remove the hog rings and rear seatback cover.
6. REMOVE SEPARATE TYPE REAR SEATBACK COVER RH
   1. Remove the 2 headrest supports.
   2. Remove the rear seatback lock release button.
   3. Remove the rear seatback stop button grommet.
   4. Using a screwdriver, remove the rear seat shoulder belt cover.
   5. Remove the bolt and rear seat lap type belt center.
   6. Remove the hog rings and rear seatback cover.
7. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER LH
   1. Remove the hog rings and rear seat cushion cover LH.
8. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER RH
   1. Remove the hog rings and rear seat cushion cover RH.
9. REMOVE REAR SEATBACK LOCK ASSY LH
   1. Remove the 2 bolts and rear seatback lock LH.
10. REMOVE REAR SEATBACK LOCK ASSY RH
    1. Remove the 2 bolts and rear seatback lock RH.
11. INSTALL REAR SEATBACK LOCK ASSY LH
    1. Install the rear seatback lock LH with the 2 bolts.
12. INSTALL REAR SEATBACK LOCK ASSY RH
    1. Install the rear seatback lock RH with the 2 bolts.
13. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER LH
    1. Install the seat cushion pad LH to the seat cushion frame LH.
    2. Using hog ring pliers, install the seat cushion cover LH with new hog rings.
       NOTE:

       • Be careful not to damage the cover.
       • When installing the hog rings, take care to minimize wrinkles as much as possible.
14. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER RH

    HINT: Use the same procedures described for the LH side.

15. INSTALL SEPARATE TYPE REAR SEATBACK COVER RH
    1. Install the seatback pad RH to the seatback frame RH.
    2. Using hog ring pliers, install the seatback cover RH with new hog rings.
       NOTE:

       • Be careful not to damage the cover.
       • When installing the hog rings, take care to minimize wrinkles as much as possible.
    3. Install the rear seat lap type belt center with the bolt.

       Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)

    4. Install the rear seat shoulder belt cover.
    5. Install the rear seatback stop button grommet.
    6. Install the rear seatback lock release button.
    7. Install the 2 headrest supports.
16. INSTALL SEPARATE TYPE REAR SEATBACK COVER LH
    1. Install the seatback pad LH to the seatback frame LH.
    2. Using hog ring pliers, install the seatback cover LH with new hog rings.
       NOTE:

       • Be careful not to damage the cover.
       • When installing the hog rings, take care to minimize wrinkles as much as possible.
    3. Install the rear seatback stop button grommet.
    4. Install the rear seatback lock release button.
    5. Install the 2 headrest supports.
17. INSTALL SEPARATE TYPE REAR SEATBACK ASSY LH
    1. Install the rear seatback LH with the 2 bolts.

       Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)

    2. Install the rear seatback board LH with the 4 screws.
18. INSTALL SEPARATE TYPE REAR SEATBACK ASSY RH

    HINT: Use the same procedures described for the LH side.

19. INSTALL REAR SEAT ASSY LH
    1. Install the rear seat assembly LH with the 4 bolts.

       Torque: 41 N.m (420 kgf.cm, 30 ft.lbf) for seat cushion side

       Torque: 31 N.m (317 kgf.cm, 23 ft.lbf) for seatback side

    2. Install the headrest.
20. INSTALL REAR SEAT ASSY RH
    1. Install the rear seat assembly RH with the 4 bolts.

       Torque: 41 N.m (420 kgf.cm, 30 ft.lbf) for seat cushion side

       Torque: 31 N.m (317 kgf.cm, 23 ft.lbf) for seatback side

    2. Install the rear seat lap type belt center floor anchor with the bolt.

       Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)

    3. Install the headrest.
