Instrument Panel: Removal

SHIP MODE SETTING

1. Take out all of the CDs.
   NOTE: If they cannot be taken out, do not attempt to take out forcibly and send the unit for repair.
2. Turn the ignition switch to ACC as pressing the "SEEK UP" and "DISC" switches at the same time.
   Fig 1: Identifying "SEEK UP" & "DISC" Switches

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   When the ship mode has been set, "SHIP" must be displayed.

   Fig 2: SHIP display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Turn the ignition switch to OFF and disconnect the battery negative cable.

1. Using a molding remover, remove the center register.
2. Disconnect the connector.
3. Use the same manner described above to the other side.

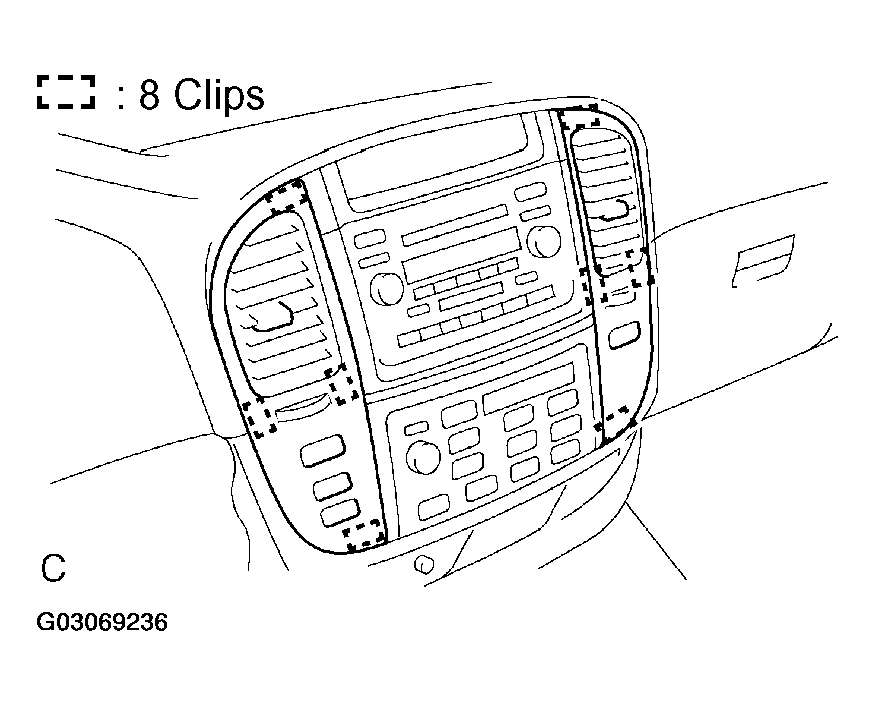

Fig 3: Locating Center Register Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 4 bolts.
2. Disconnect the radio with A/C control assembly cable and remove the radio with A/C control assembly.

SHIP MODE CONFIRMATION

1. Check that a metal can be seen from holes marked "SHIP" on the back of the radio with A/C control assembly.
   NOTE: If a metal cannot be seen from a hole on the back of the radio with A/C control assembly, repeat "SHIP MODE".
   Fig 4: Identifying SHIP holes on Rear Of Audio Unit

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, remove the assist grip plugs, then remove the 2 screws and assist grip.

   HINT:

   Tape up the screwdriver tip before use.

2. Use the same manner described above to the other side.

1. Using a screwdriver, remove the front pillar garnish.

   HINT:

   Tape up the screwdriver tip before use.

2. Use the same manner described above to the other side.
Fig 5: Front Pillar Garnish
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a screwdriver, remove the cluster finish panel, then disconnect the connector.

HINT:

Tape up the screwdriver tip before use.

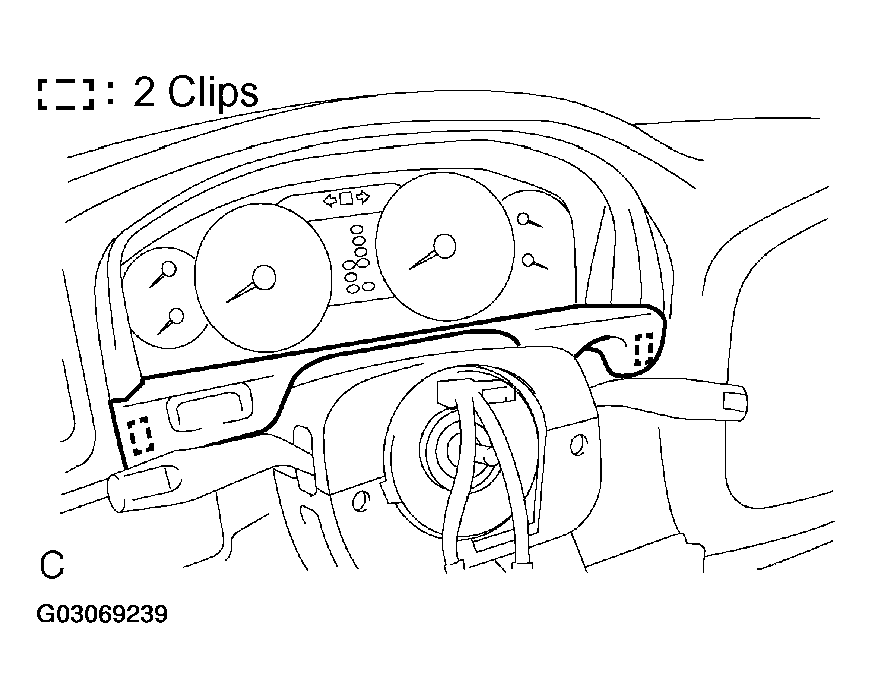

Fig 6: Locating Cluster Finish Panel Clips

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 screws and the hood lock control cable lever.
2. Remove the 2 screws and the fuel lid control cable lever.

1. Remove the screw.
2. Using a screwdriver, remove the lower No. 1 panel, then disconnect the connectors.

HINT:

Tape up the screwdriver tip before use.

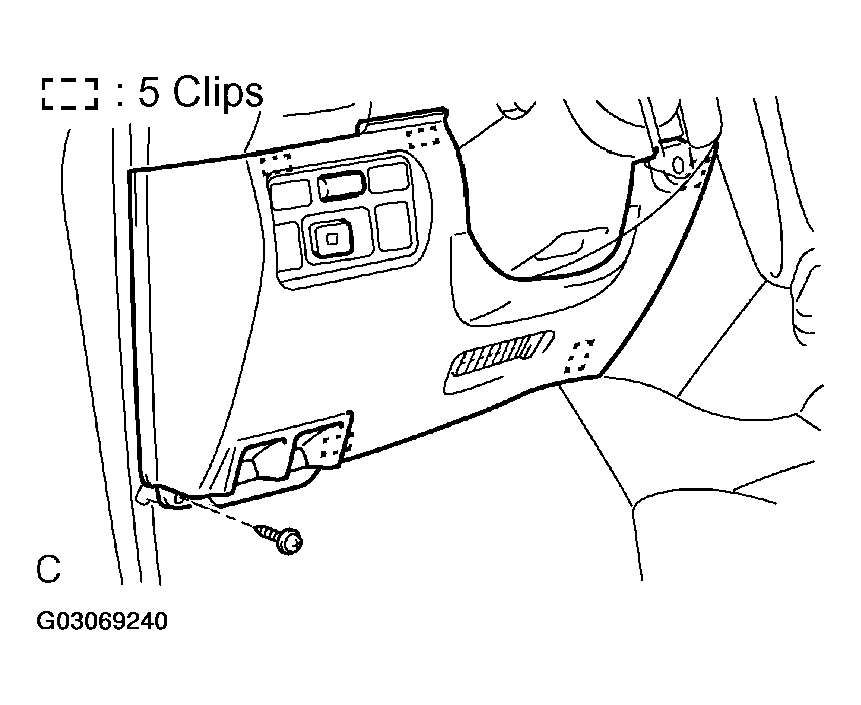

Fig 7: Locating Lower No. 1 Panel Screw & Clips

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 3 bolts and the LH lower panel.

Remove the 3 screws and the column covers.

1. Disconnect the connectors.
2. Remove the clamp.
3. Remove the 4 screws and the combination switch.

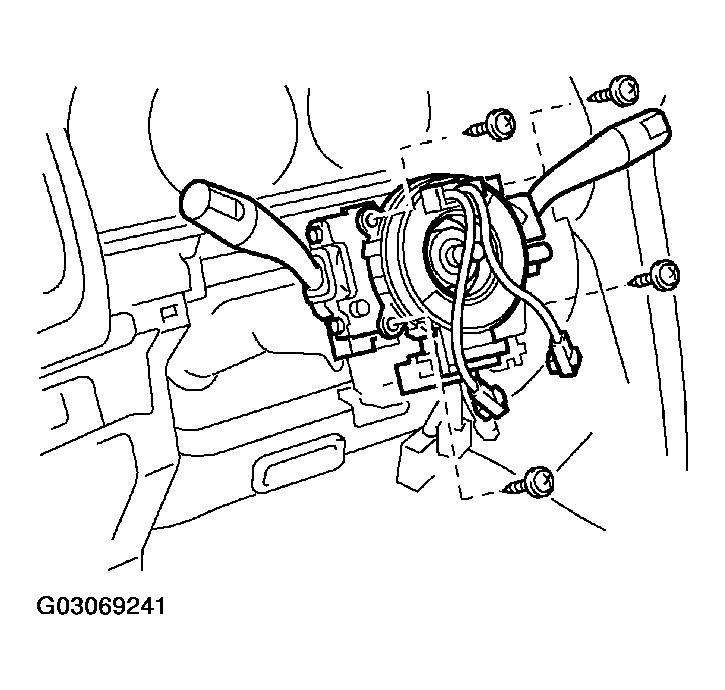

   Fig 8: Locating Combination Switch Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

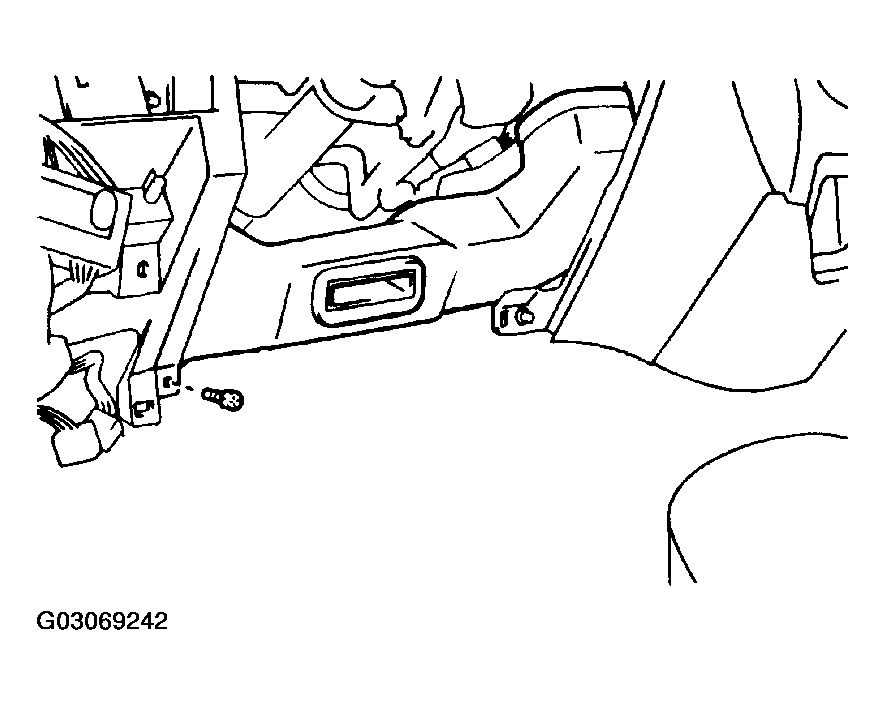

Remove the screw and the No. 2 heater to register duct as shown.

Fig 9: Locating No. 2 Heater To Register Duct Screw

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connectors.

   HINT:

   The connectors can be disconnected by loosening the bolts.

2. Remove the 4 screws.
3. Using a screwdriver, remove the combination meter.

HINT:

Tape up the screwdriver tip before use.

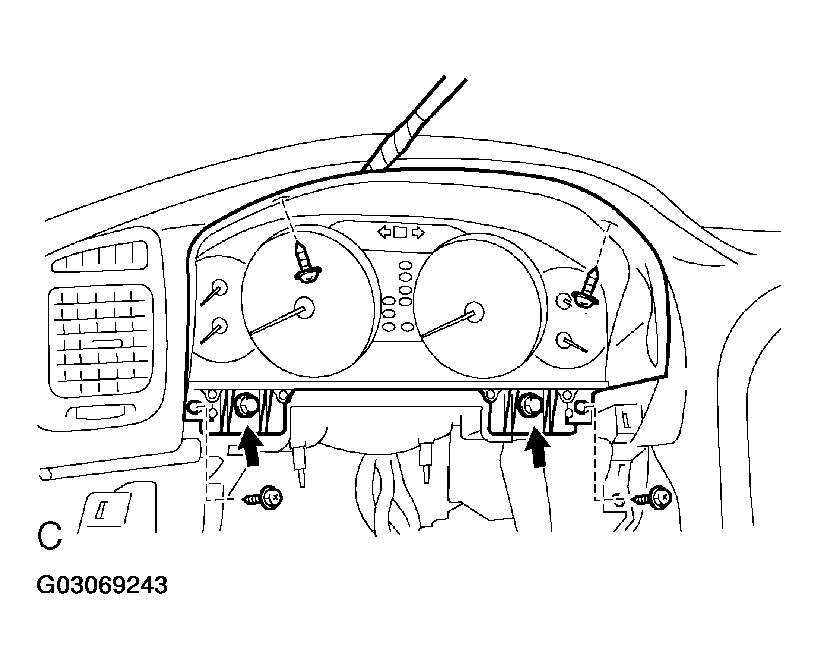

Fig 10: Locating Combination Meter Bolts & Screws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 screws.
2. Remove the glove compartment door, then disconnect the glove compartment door damper clip.
   Fig 11: Locating Glove Compartment Door Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, remove the No. 1 under cover.

   HINT:

   Tape up the screwdriver tip before use.

2. Slide the airbag connector to pull out from the No. 1 under cover.
3. Disconnect the airbag connector.

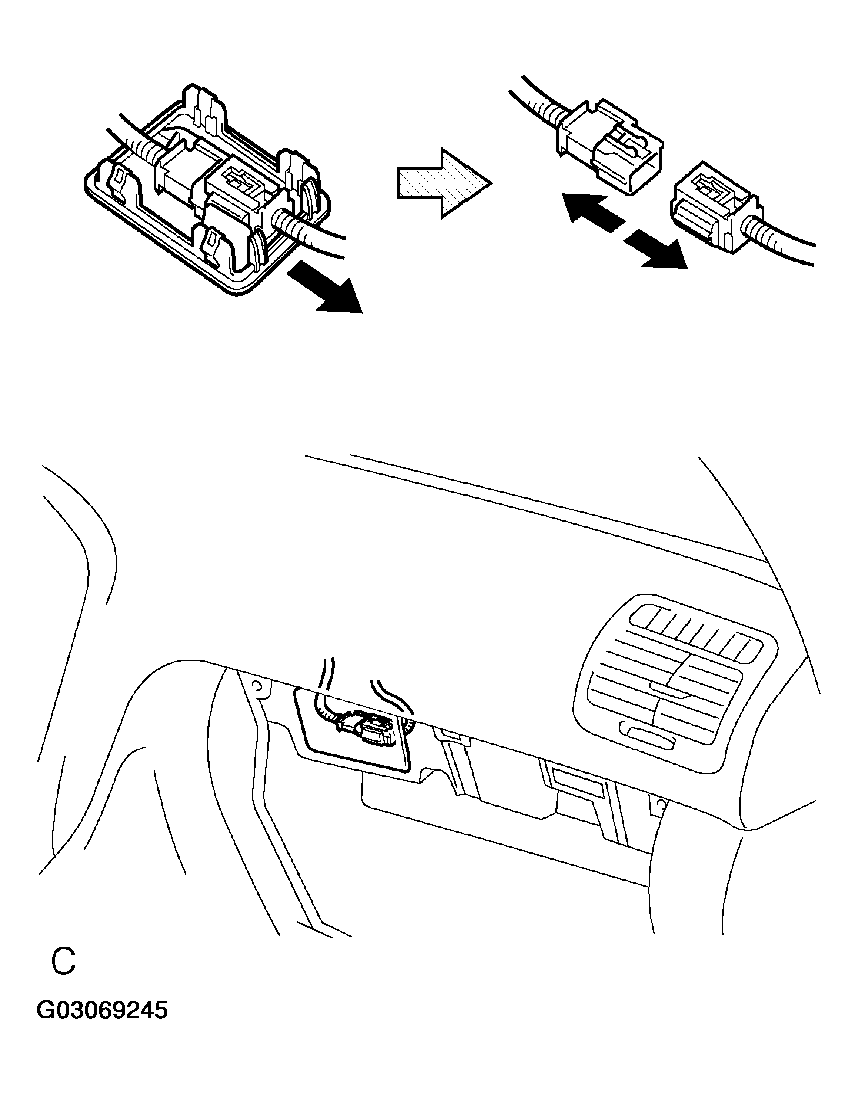

Fig 12: Locating & Disconnecting Airbag Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 3 screws and the lower No. 2 panel.

1. Remove the transfer shift lever knob.
2. Using a screwdriver, remove the front console panel.

HINT:

Tape up the screwdriver tip before use.

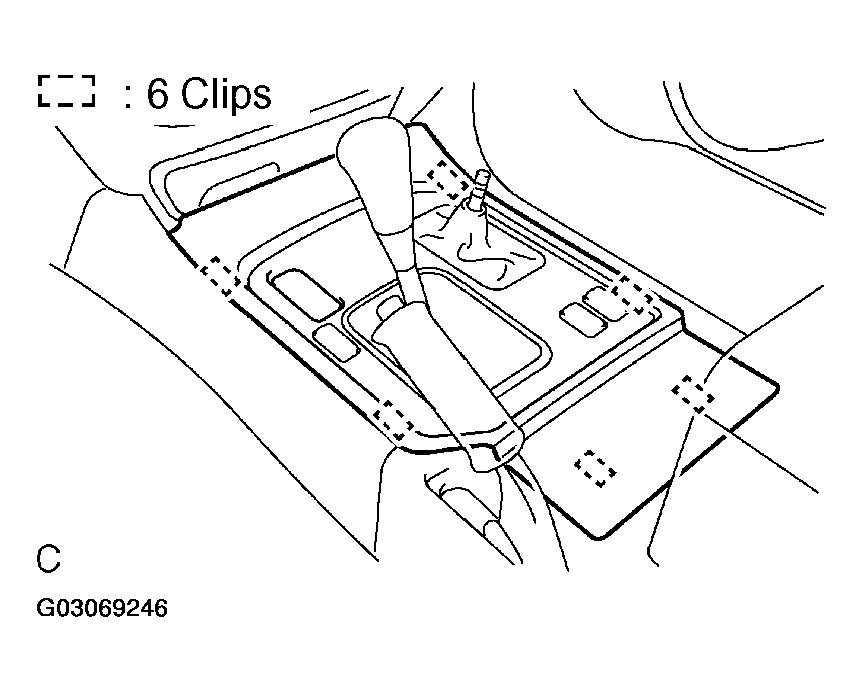

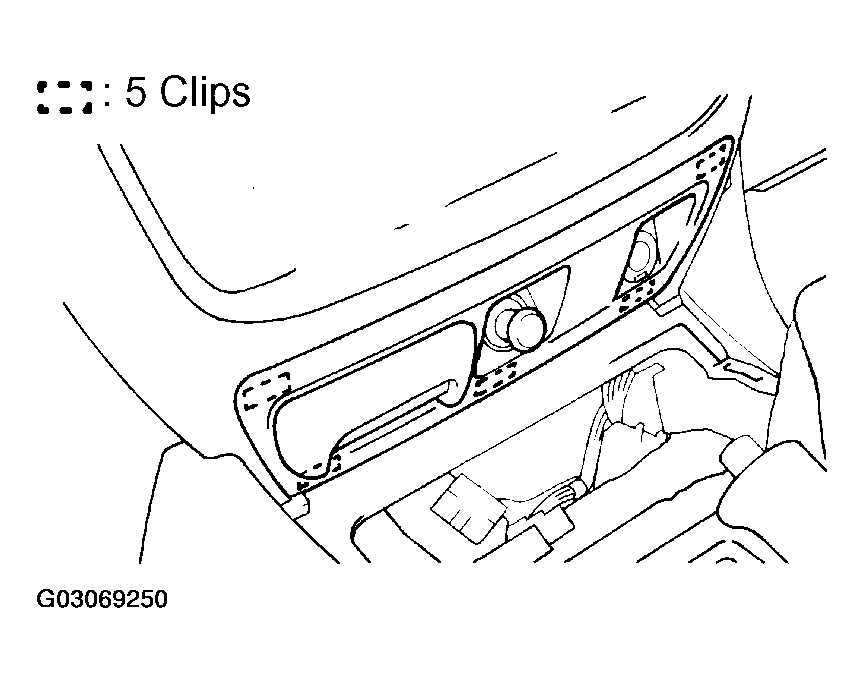

Fig 13: Locating Front Console Panel Clips

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the rear console cup holder box.
2. Remove the 2 screws.
3. Using a screwdriver, remove the console rear end panel.

HINT:

Tape up the screwdriver tip before use.

Fig 14: Locating Console Rear End Panel Screws & Clips

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the connector, then remove the 3 screws and the rear radio control panel.

1. w/o Disc player changer:

   Remove the 6 bolts, the 8 screws and the rear console box.

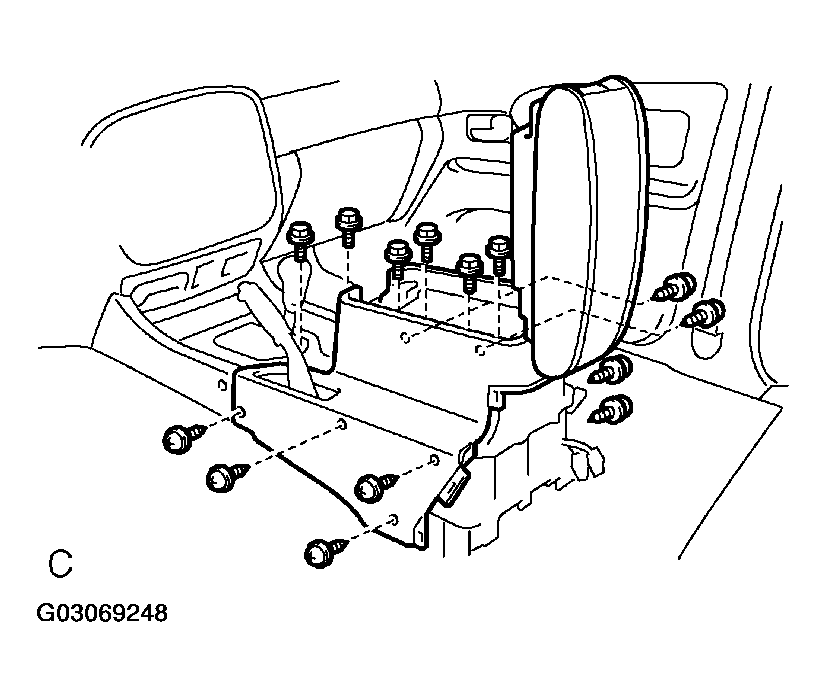

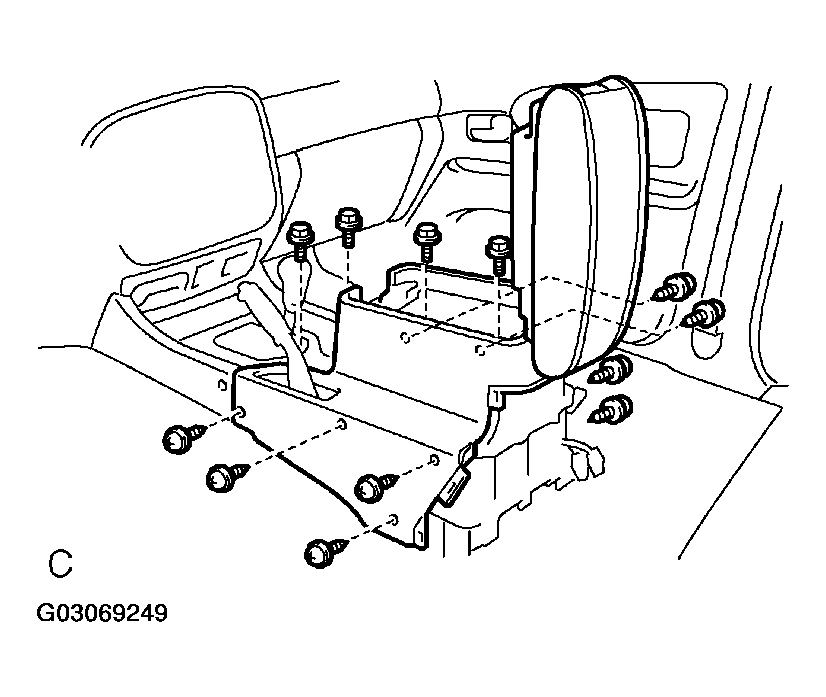

   Fig 15: Locating Rear Console Box Screws & Bolts (Without Disc Player)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/ Disc player changer:

   Remove the 4 bolts, the 8 screws and the rear console box.

   Fig 16: Locating Rear Console Box Screws & Bolts (With Disc Player)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a screwdriver, remove the center lower cluster finish panel, then disconnect the connector.

HINT:

Tape up the screwdriver tip before use.

Fig 17: Locating Center Lower Cluster Finish Panel Clips

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

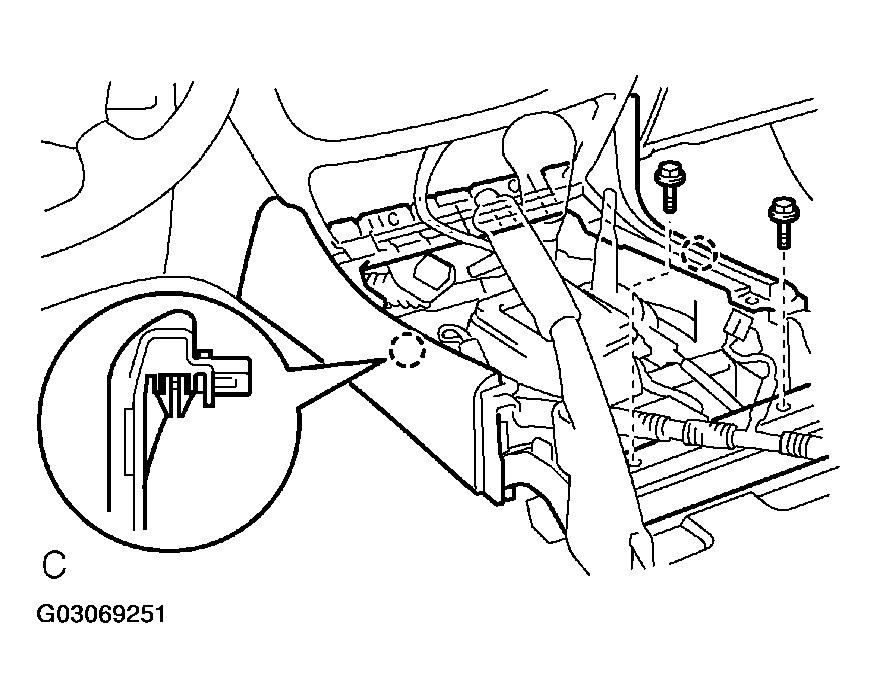

Remove the 2 bolts, the front console box and the front console box bracket.

Fig 18: Locating Front Console Box Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the junction connectors.

   HINT:

   The connectors can be disconnected by loosening the bolts.

2. Disconnect the connector, then remove the 8 bolts, the 2 nuts and the instrument panel.

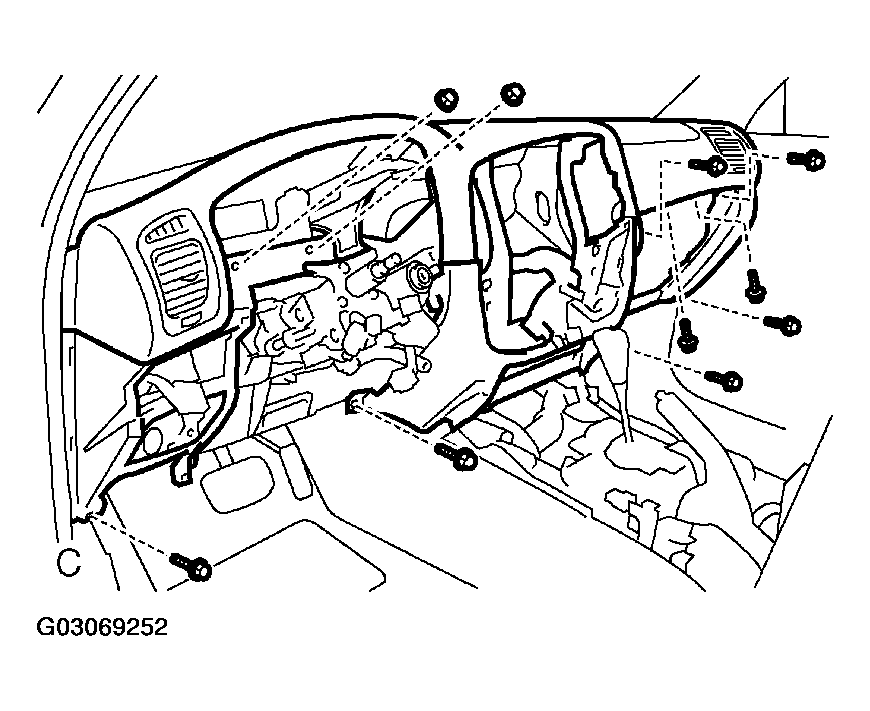

   Fig 19: Locating Instrument Panel Bolts & Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
