Tilt Steering Column: Removal

  1. REMOVE STEERING WHEEL PAD
    NOTE: If the airbag connector is disconnected with the ignition switch at ON or ACC, DTCs will be recorded.
    1. Place the front wheels facing straight ahead.
    2. Remove the steering wheel lower No. 2 and No. 3 covers.

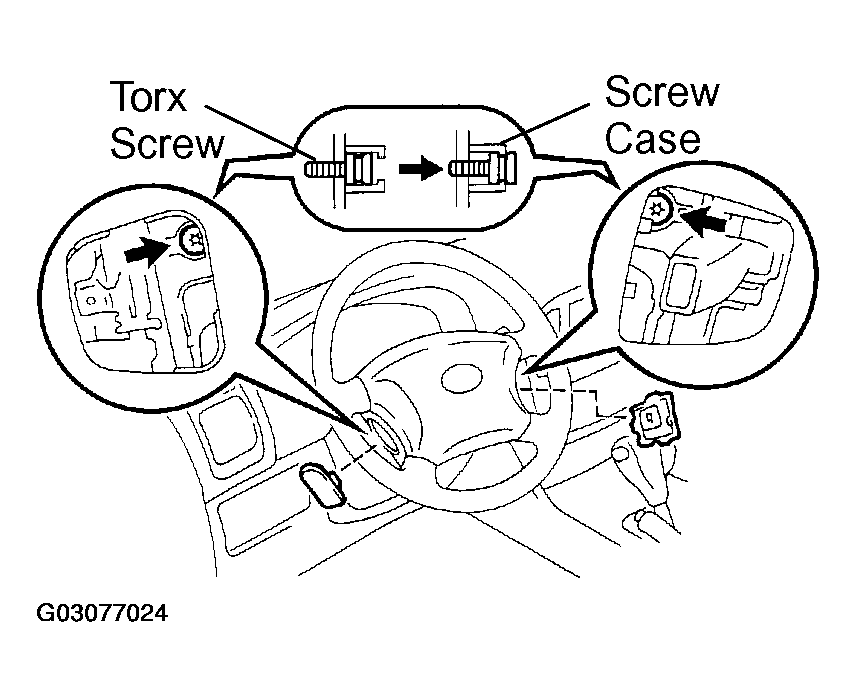

      Fig 1: Removing Screws Steering Wheel Lower
      G03077024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a torx® socket wrench, loosen the 2 torx screws.

      HINT:

      Loosen the 2 screws until the groove along the screw circumference catches on the screw case.

    4. Pull the pad out from the steering wheel and disconnect the 2 airbag connectors.
    5. Disconnect the connector.
      CAUTION:
      • When storing the wheel pad, keep the upper surface of the pad facing upward.
      • Never disassemble the wheel pad.
      NOTE: When removing the wheel pad, take care not to pull the airbag wire harness.

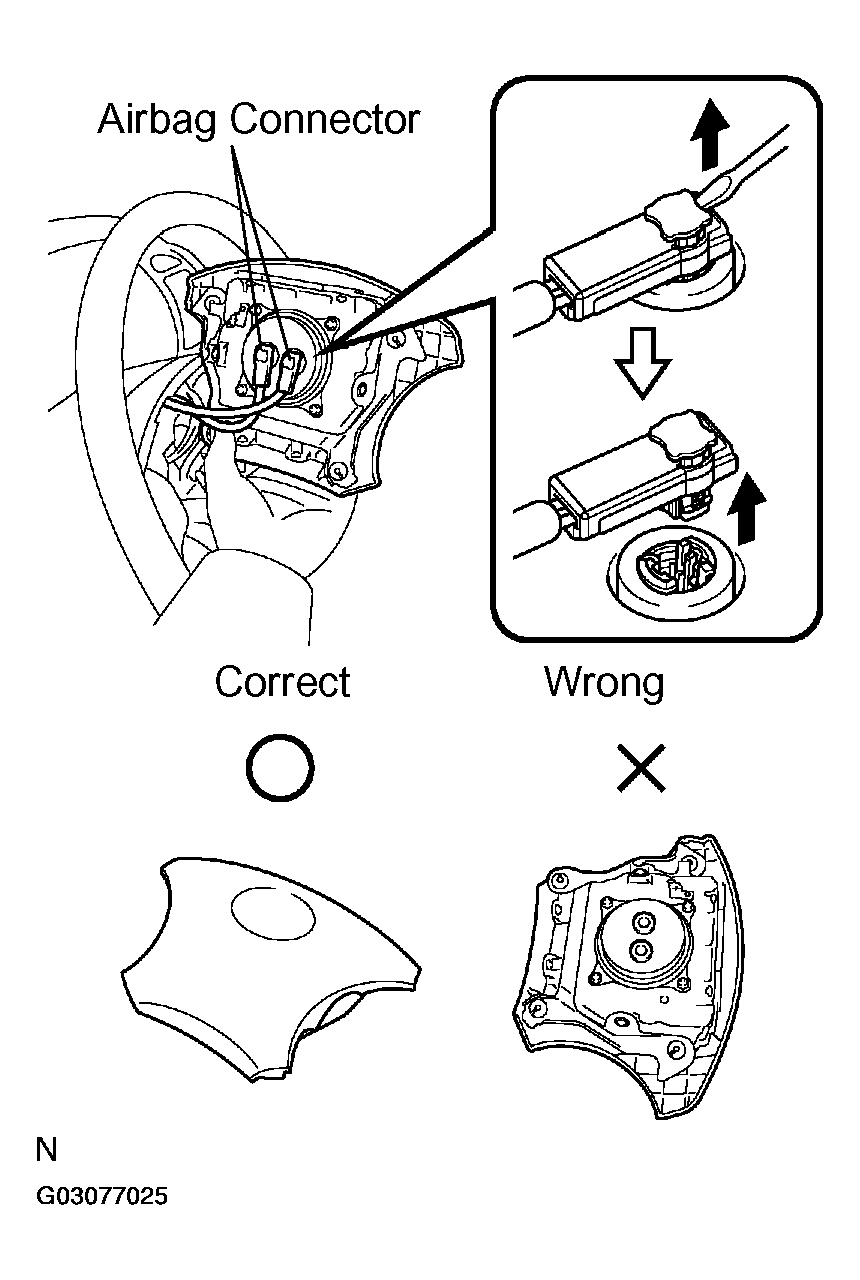

      Fig 2: Disconnecting Airbag Connectors
      G03077025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE STEERING WHEEL
    1. Disconnect the connector.
    2. Remove the steering wheel set nut.
    3. Place matchmarks on the steering wheel and main shaft assembly.

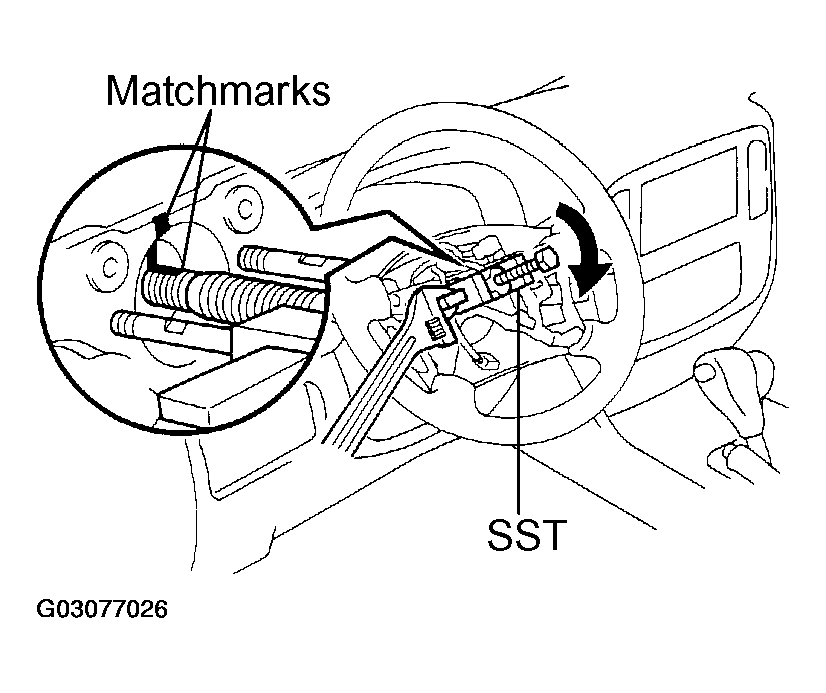

      Fig 3: Placing Matchmarks On Steering Wheel And Main Shaft Assembly
      G03077026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using SST, remove the wheel.

      SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

  3. REMOVE UPPER AND LOWER COLUMN COVERS

    Remove the 3 screws, upper and lower column covers.

  4. REMOVE COMBINATION SWITCH WITH SPIRAL CABLE
    1. Tilt steering column:

      Disconnect the 3 connectors.

    2. w/ Power tilt and power telescopic steering column:

      Disconnect the 5 connectors.

    3. Disconnect the airbag connector.
    4. Remove the 3 screws and combination switch.
  5. REMOVE SPIRAL CABLE (See  COMPONENTS  )
    NOTE: Do not disassembly the cable or apply oil to it.
  6. REMOVE SCUFF PLATE
  7. REMOVE COWL TRIM

    Remove the clip and cowl trim.

  8. REMOVE CLUSTER FINISH PANEL

    Remove the connector and cluster finish panel.

  9. REMOVE LOWER NO. 1 PANEL
    1. Remove the 2 screws and disconnect the hood lock release lever from the panel.
    2. Remove the 2 screws and disconnect the fuel lid release lever from the panel.
    3. Remove pad set screw and lower No. 1 panel.
  10. REMOVE LH LOWER PANEL

    Remove the 4 bolts and LH lower panel.

  11. REMOVE NO. 2 HEATER TO REGISTER DUCT

    Remove the screw and No. 2 heater to register duct.

  12. DISCONNECT NO. 2 INTERMEDIATE SHAFT ASSEMBLY
    1. Place matchmarks on the No. 2 intermediate shaft and control valve shaft.

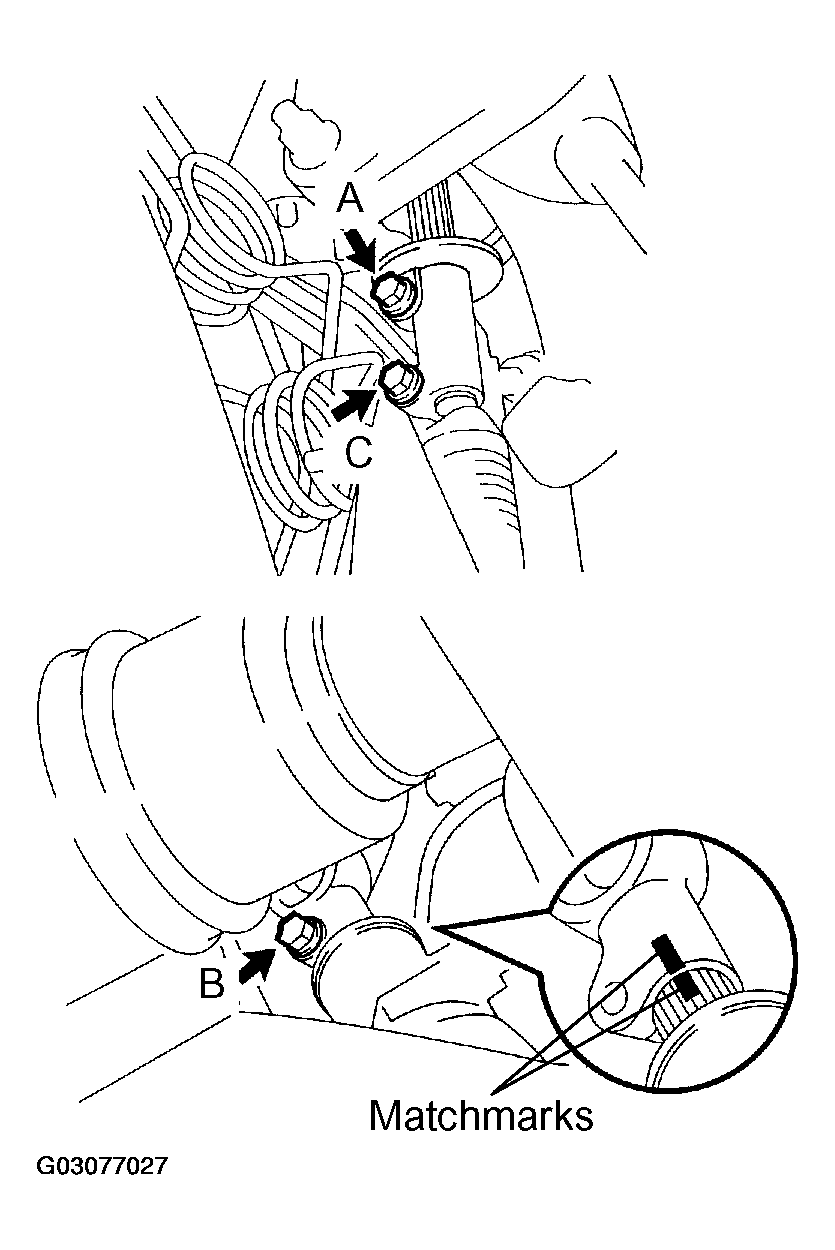

      Fig 4: Placing Matchmarks On No. 2 Intermediate Shaft
      G03077027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the bolt A.
    3. Remove the bolt B and the bolt C, disconnect the No. 2 intermediate shaft from the control valve shaft and sliding yoke.
  13. REMOVE NO. 2 INTERMEDIATE SHAFT ASSEMBLY
  14. REMOVE HOLE COVER

    Remove the 4 bolts and hole cover.

  15. REMOVE STEERING COLUMN ASSEMBLY
    1. Disconnect the connectors.
    2. Loosen the hose clamp.

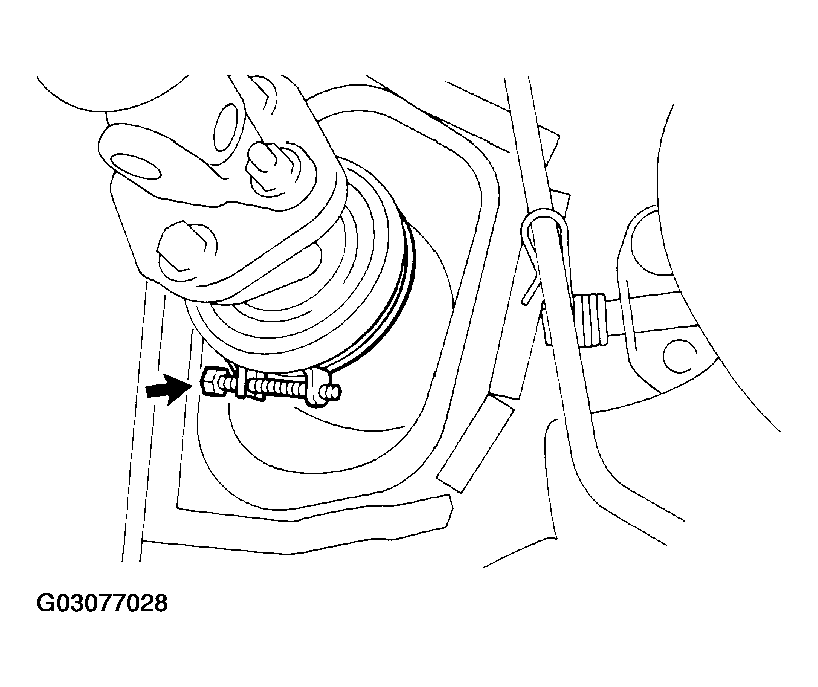

      Fig 5: Loosening Hose Clamp
      G03077028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 nuts and steering column assembly.
  16. REMOVE SLIDING YOKE
    1. Remove the bolt A and sliding yoke.
    2. Remove the thrust stopper from the intermediate shaft assembly.
  17. REMOVE HOSE CLAMP
  18. REMOVE NO. 2 HOLE COVER
