Output Shaft: Reassembly

HINT:

Coat all of the sliding and rotating surfaces with gear oil before reassembly.

1. INSTALL NO. 1 CLUTCH HUB INTO NO. 1 HUB SLEEVE
   1. Install the 3 springs and shifting keys to the clutch hub.
   Fig 1: Installing Springs And Shifting Keys To Clutch Hub
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Install the hub sleeve to the clutch hub.
      NOTE: Assemble the clutch hub and hub sleeve in the direction shown in Fig 1.
2. INSTALL 1ST GEAR BEARING INNER RACE

   Using SST and a press, install the 1st gear bearing inner race.

   SST 09506-35010

   Fig 2: Installing 1st Gear Bearing Inner Race

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Align the hole of the output shaft and inner race.

3. INSTALL NEEDLE ROLLER BEARING, 1ST GEAR, SYNCHRONIZER RINGS AND NO. 1 HUB SLEEVE TO OUTPUT SHAFT
   1. Apply MP grease to the needle roller bearing and install it.
   2. Place the synchronizer rings on the 1st gear.

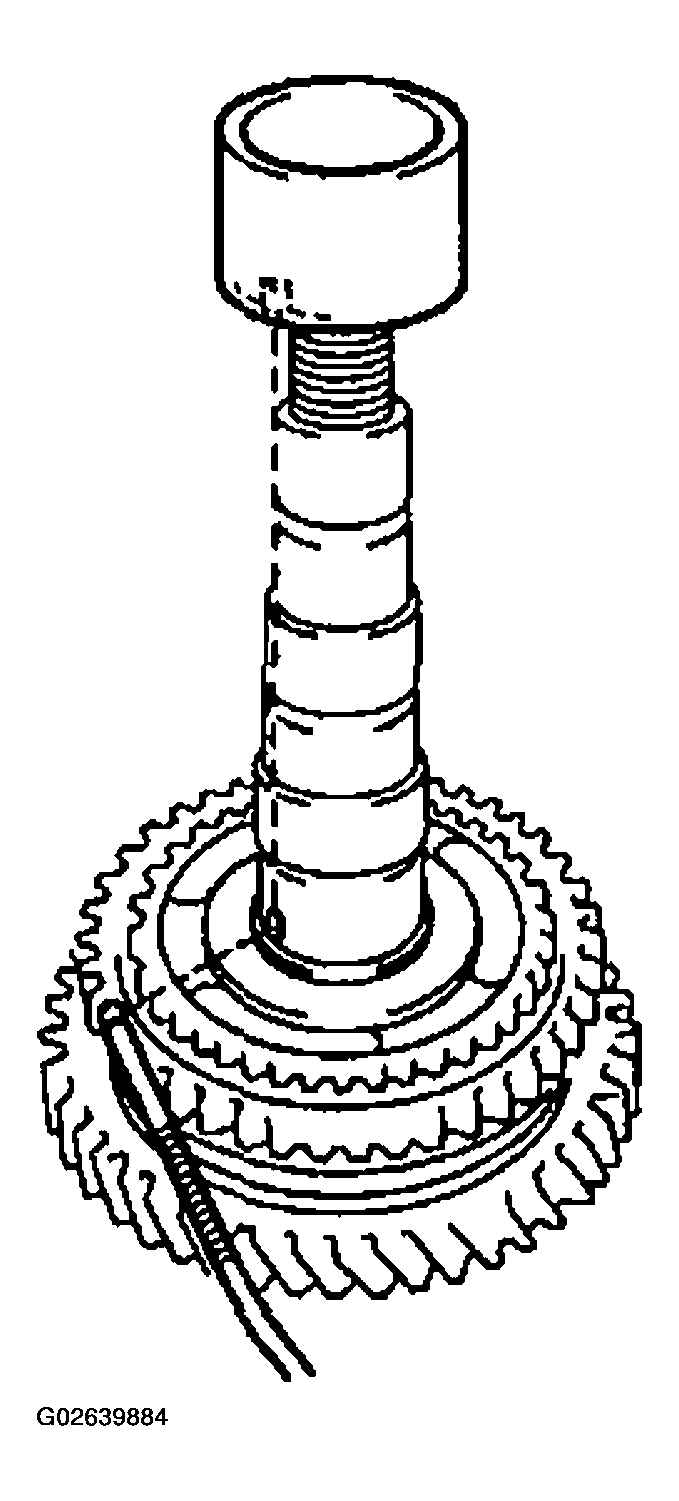

   Fig 3: Placing Synchronizer Rings On 1st Gear
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Install the 1st gear.
   4. Using SST and a press, install the 1st gear and No. 1 hub sleeve.

      SST 09316-60011 (09316-00041)

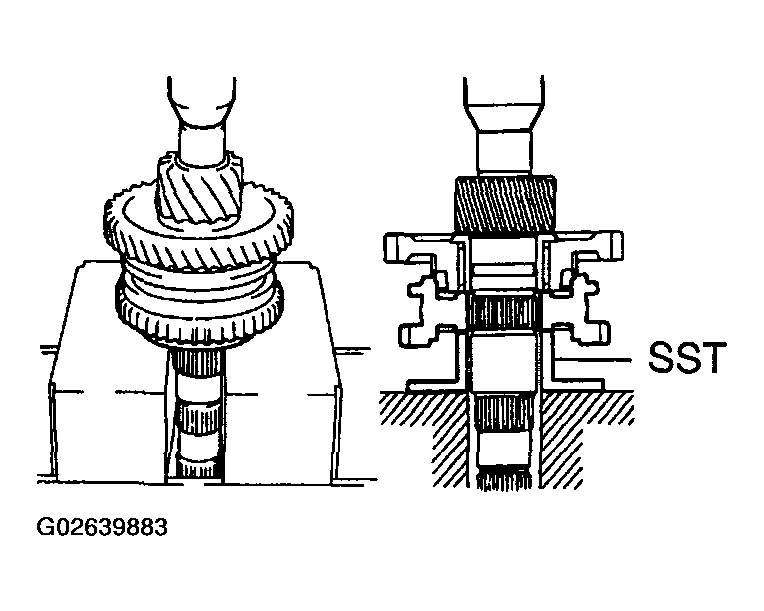

   Fig 4: Installing 1st Gear And No. 1 Hub Sleeve
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. MEASURE 1ST GEAR THRUST CLEARANCE (See  DISASSEMBLY  )
5. INSTALL BALL AND INNER RACE TO OUTPUT SHAFT

   HINT:

   Align the groove of the inner race and ball.

   Fig 5: Aligning Groove Of Inner Race And Ball

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL SPACER, NEEDLE ROLLER BEARING, SYNCHRONIZER RINGS, 2ND GEAR AND 3RD DRIVEN GEAR
   1. Install the spacer.
   2. Apply MP grease to the needle roller bearing.
   3. Place the synchronizer rings on the 2nd gear.
   Fig 6: Placing Synchronizer Rings On 2nd Gear
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Install the 2nd gear.
   5. Using a press, install the 3rd driven gear.

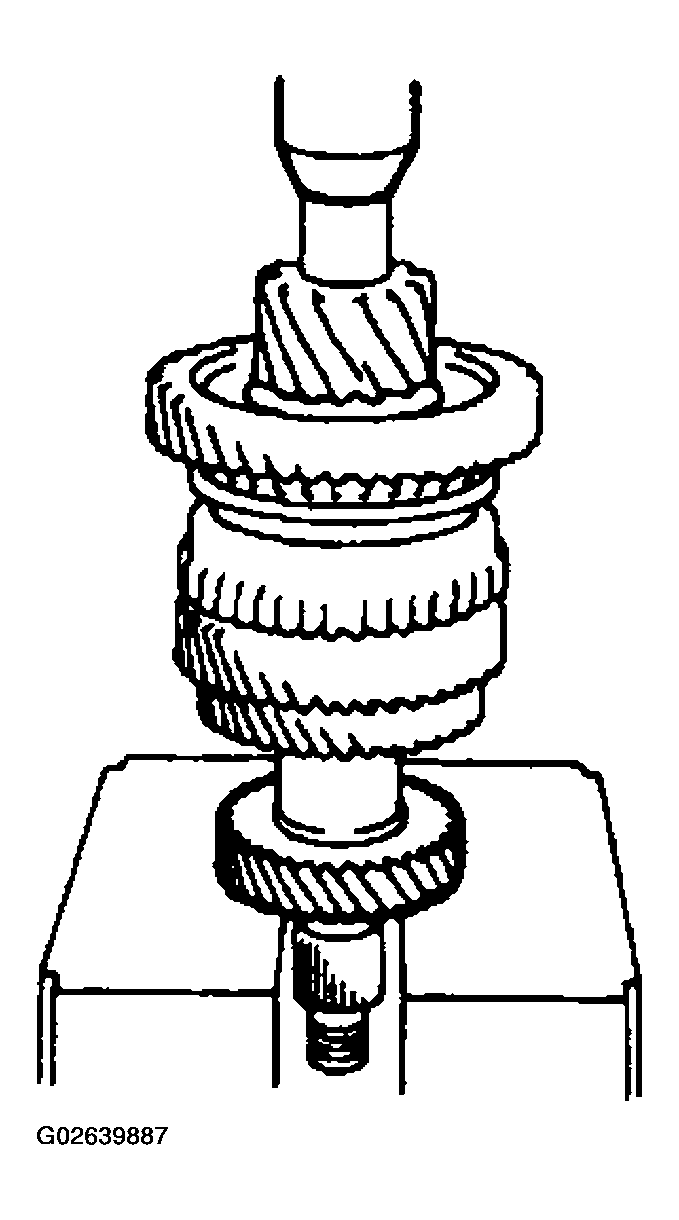

      Fig 7: Installing 3rd Driven Gear

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Align the clutch hub grooves with the projections on the synchronizer ring.
7. MEASURE 2ND GEAR THRUST CLEARANCE (See  DISASSEMBLY  )
8. INSTALL SPACER AND 4TH DRIVEN GEAR
   1. Install the spacer.
   2. Using a press, install the 4th driven gear.

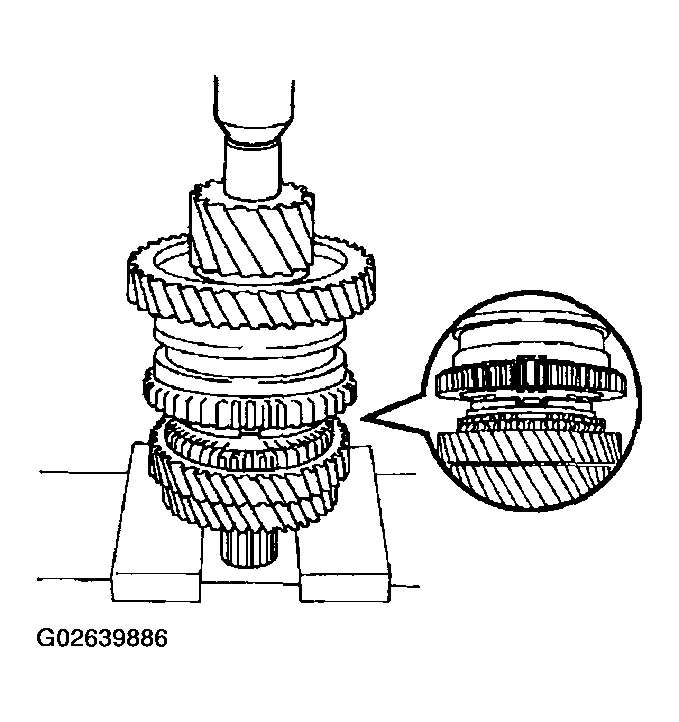

      Fig 8: Installing 4th Driven Gear

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. INSTALL OUTPUT SHAFT REAR BEARING

   Using SST and a press, install a new bearing.

   SST 09506-30012

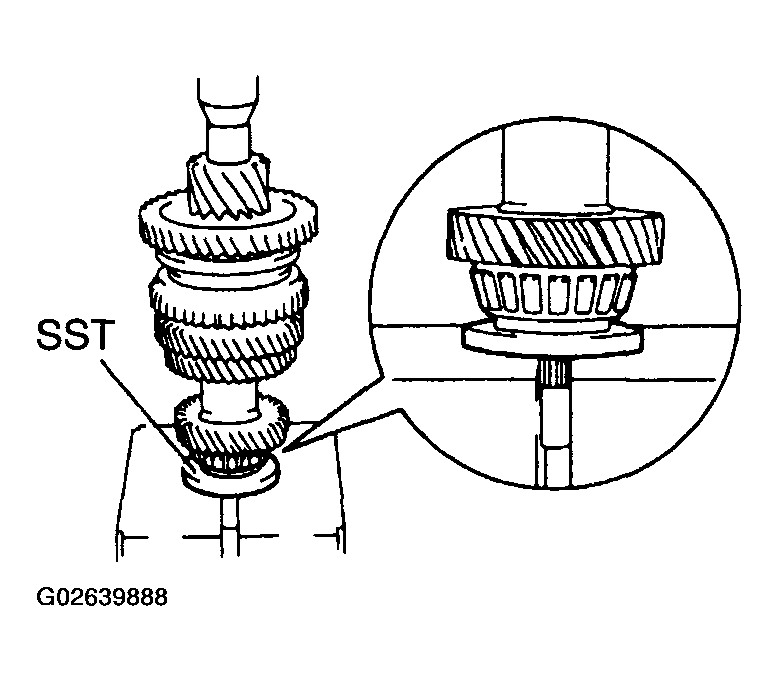

   Fig 9: Installing New Bearing

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. INSTALL OUTPUT SHAFT FRONT BEARING

    Using SST and a press, install a new output shaft front bearing.

    SST 09316-60011 (09316-00071)

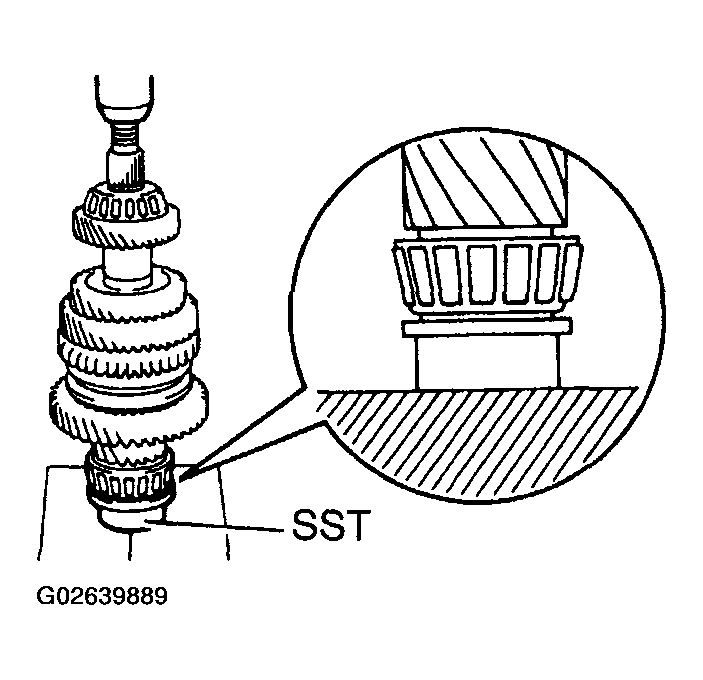

    Fig 10: Installing New Output Shaft Front Bearing

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
