Oil Pump: Removal

DRAIN ENGINE OIL
REMOVE FRONT EXHAUST PIPE
Remove 4 bolts, 2 compression springs, 2 gaskets and front exhaust pipe.

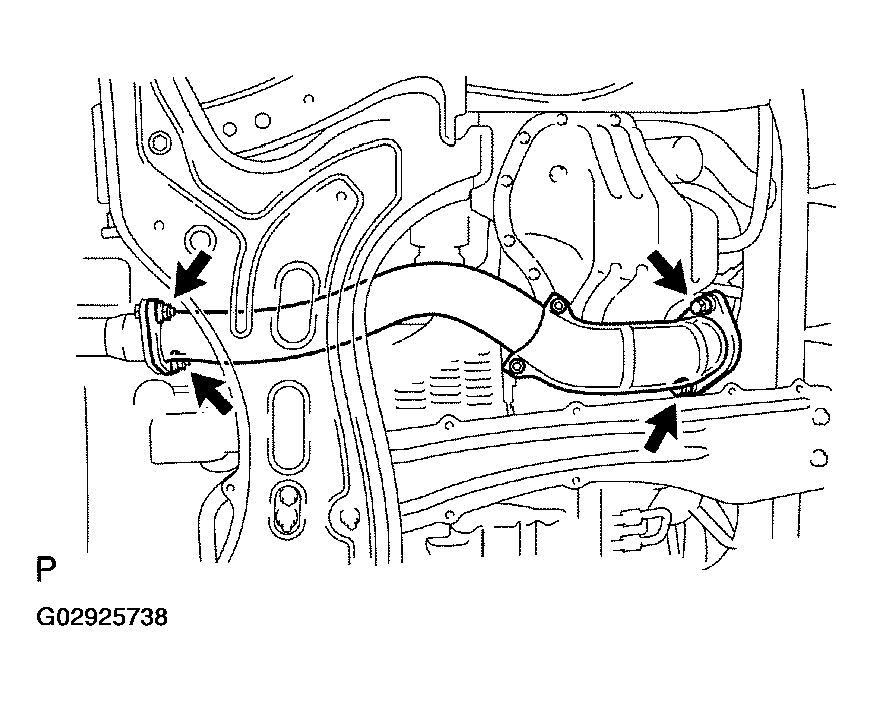

Fig 1: Removing Front Exhaust Pipe & Bolts

REMOVE RH ENGINE UNDER COVER
REMOVE OIL PAN
1. Remove the 12 bolts and 2 nuts.

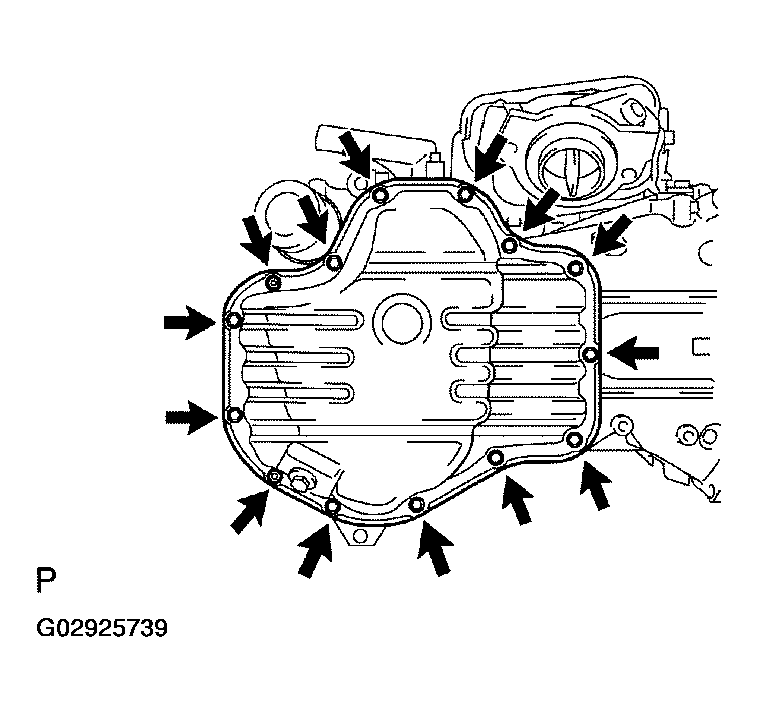

  Fig 2: Removing Bolts & Nuts From Oil Pan
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Insert the blade of SST between the crank case and oil pan, and timing chain cover and oil pan, cut off applied sealer and remove the oil pan.
  SST 09032-00100

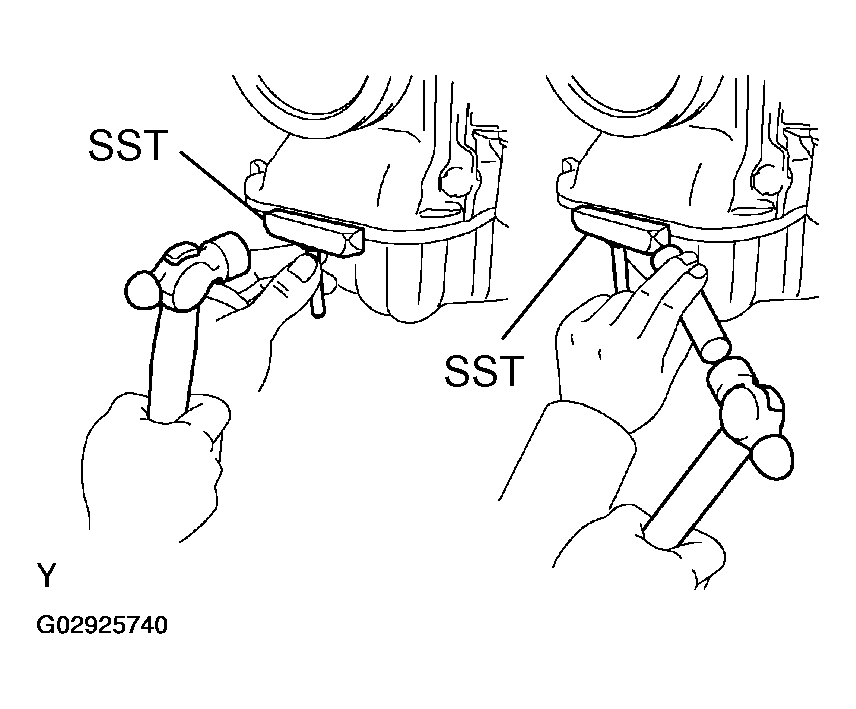

  Fig 3: Inserting Blade Of SST Between Crank Case & Oil Pan, Timing Chain Cover & Oil Pan
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Be careful not to damage the contact surface of the timing chain cover, crank case and oil pan.
REMOVE AIR CLEANER ASSEMBLY (See REMOVAL )
REMOVE ABS ACTUATOR (See REMOVAL )
REMOVE RH ENGINE MOUNTING INSULATOR (See REMOVAL )
REMOVE TIMING CHAIN AND CRANKSHAFT TIMING SPROCKET (See REMOVAL )
REMOVE OIL PUMP DRIVE CHAIN AND SPROCKETS

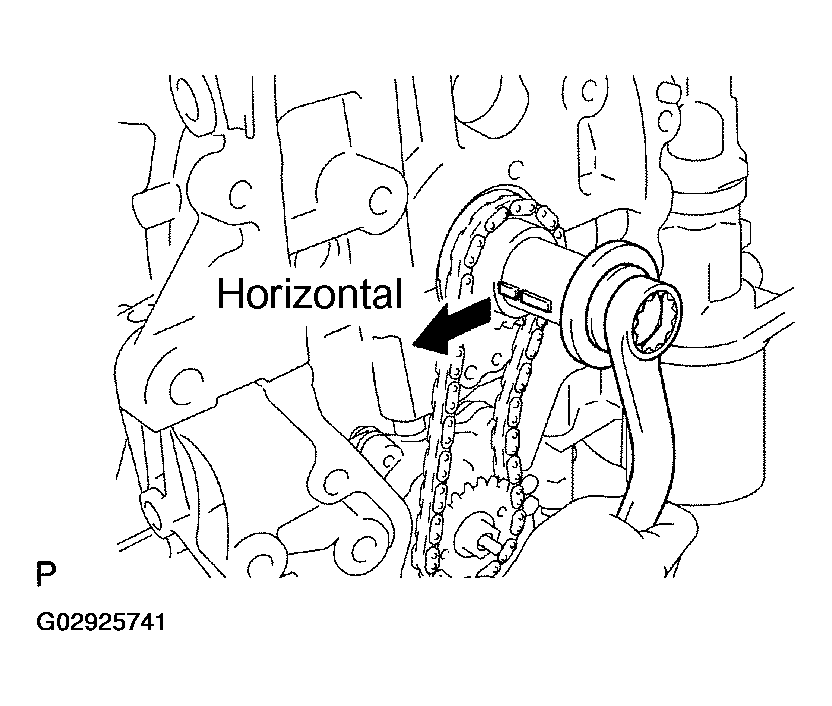

1. Set the crankshaft key into the left horizontal position.
2. Remove the bolt, chain tensioner plate and spring.
3. Using a screwdriver, hold the oil pump drive shaft sprocket as shown in Fig 5.
4. Remove the nut, 2 sprockets and drive chain.

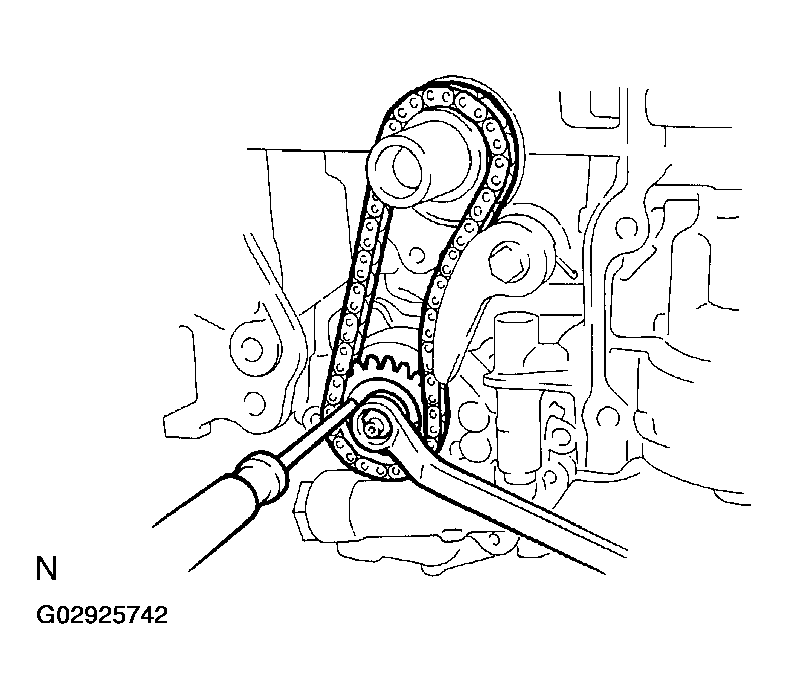

  Fig 5: Removing Oil Pump Drive Chain And Sprockets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OIL PUMP
Remove the 3 bolts, oil pump and gasket.

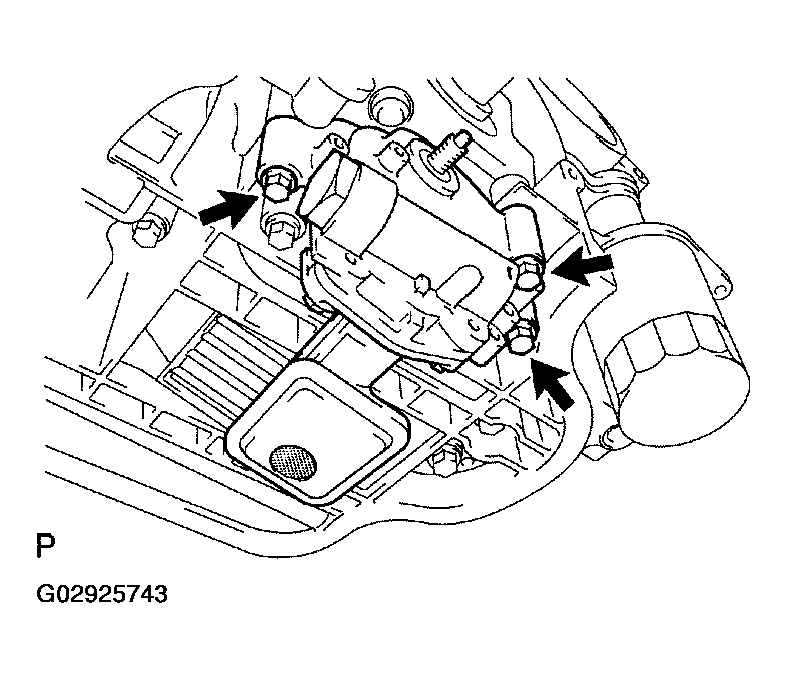

Fig 6: Removing Oil Pump & Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
