Abs Actuator: Removal

DISCONNECT BRAKE LINES
Using SST, disconnect the 6 brake lines from the ABS actuator.

SST 09023-00100

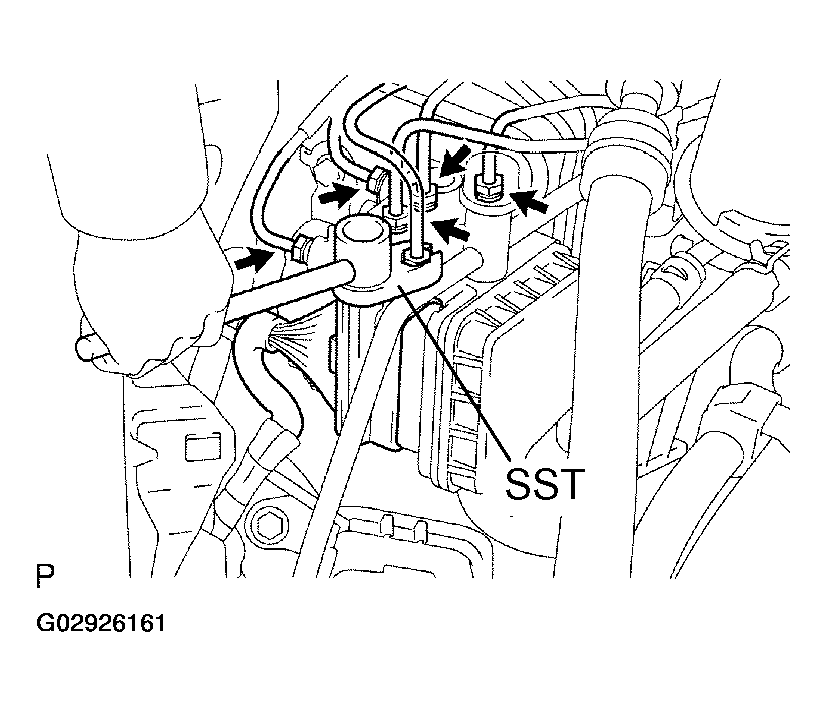

Fig 1: Disconnecting ABS Actuator Brake Lines
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)
DISCONNECT POWER STEERING FLUID RESERVOIR WITH BRACKET
Remove the 2 bolts and disconnect the P/S fluid reservoir with the bracket from the body.

Torque: 8.0 N.m (82 kgf.cm, 70 in.lbf)
REMOVE ABS ACTUATOR ASSEMBLY
1. Disconnect the connector.
2. Remove the 3 bolts and ABS actuator assembly.
  Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)
REMOVE ABS ACTUATOR
Remove the 2 nuts and actuator from the actuator bracket.

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
REMOVE 2 CUSHION BOLTS AND 3 CUSHIONS
