Stereo Component Amplifier ASSY: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS
Installation is in the reverse order of removal.

REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1 (SEE COMPONENTS )
REMOVE INSTRUMENT PANEL FINISH LOWER PANEL RH (SEE COMPONENTS )
REMOVE STEREO COMPONENT AMPLIFIER ASSY
1. Disconnect the connectors.
2. Remove the 2 nuts and stereo component amplifier assy.

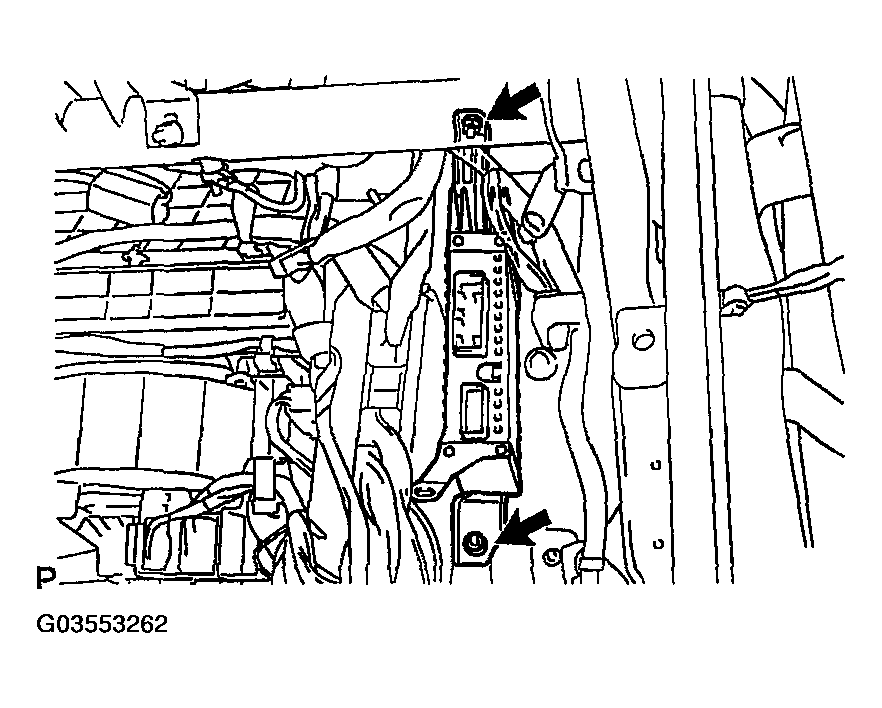

  Fig 1: Removing Stereo Component Amplifier Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
