Amplifier Antenna ASSY: Replacement

HINT:

• COMPONENTS
• Installation is in the reverse order of removal.

1. REMOVE SHIFT LEVER KNOB SUB-ASSY (SEE  REPLACEMENT  )
2. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY (SEE  REPLACEMENT  )
3. REMOVE CONSOLE BOX SUB-ASSY REAR W/CONSOLE DOOR (SEE  REPLACEMENT  )
4. REMOVE CONSOLE PANEL SUB-ASSY UPPER (SEE  REPLACEMENT  )
5. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (SEE  REPLACEMENT  )
6. REMOVE CENTER CLUSTER INTEGRATION PANEL ASSY (W/O NAVIGATION SYSTEM) (SEE  RADIO RECEIVER ASSY  )
7. REMOVE CENTER CLUSTER INTEGRATION PANEL ASSY (W/ NAVIGATION SYSTEM) (SEE  RADIO RECEIVER ASSY  )
8. REMOVE REAR SEAT CUSHION ASSY (SEE  OVERHAUL  )
9. REMOVE REAR SEAT BACK ASSY RH (SEE  OVERHAUL  )
10. REMOVE REAR SEAT BACK HINGE SUB-ASSY LH (SEE  OVERHAUL  )
11. REMOVE FRONT DOOR SCUFF PLATE RH (SEE  REPLACEMENT  )
12. REMOVE QUARTER TRIM PANEL ASSY FRONT RH (SEE  REPLACEMENT  )
13. REMOVE CENTER PILLAR GARNISH RH (SEE  REPLACEMENT  )
14. REMOVE ROOF SIDE GARNISH ASSY INNER RH (SEE  REPLACEMENT  )
15. REMOVE QUARTER TRIM PANEL UPPER RH (SEE  REPLACEMENT  )
16. REMOVE AMPLIFIER ANTENNA ASSY
    1. Remove the nut and bolt.
    2. Disengage the 12 clamps and amplifier antenna assy.

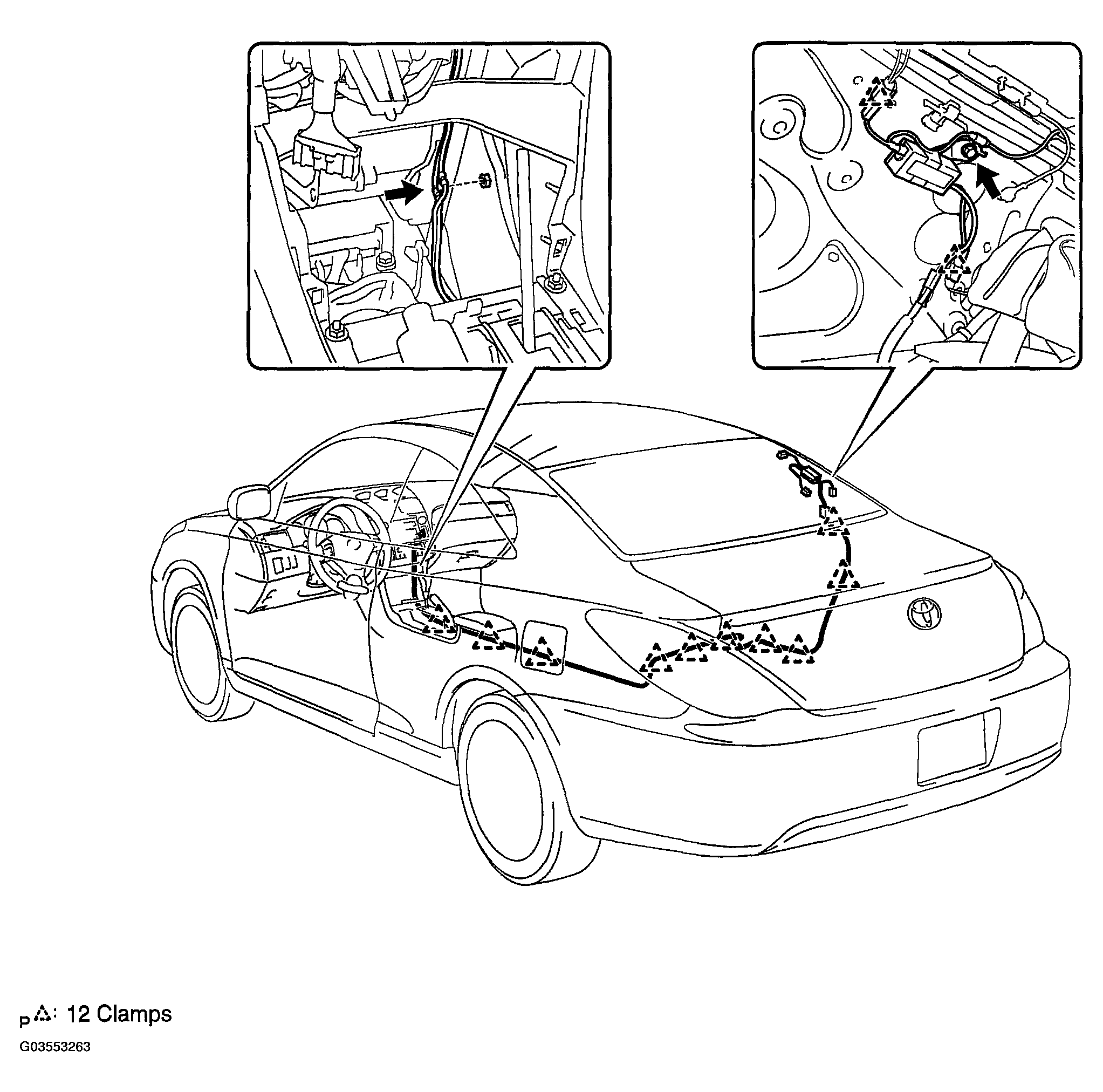

       Fig 1: Disengaging Amplifier Antenna Assy

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
