Upper Control Arm ASSY (4WD): Replacement

HINT:

COMPONENTS: See COMPONENTS

REMOVE REAR WHEEL
REMOVE EXHAUST PIPE ASSY (See EXHAUST )
REMOVE PROPELLER W/CENTER BEARING SHAFT ASSY (See OVERHAUL )
SEPARATE REAR STABILIZER LINK ASSY LH (See DRIVE SHAFT, PROPELLER SHAFT, AXLE )
SEPARATE REAR STABILIZER LINK ASSY RH
HINT:

Separate the RH side by the same procedure as the LH side.
REMOVE REAR AXLE SHAFT LH NUT (See DRIVE SHAFT, PROPELLER SHAFT, AXLE )
SST 09930-00010
REMOVE REAR AXLE SHAFT RH NUT
SST 09930-00010

HINT:

Remove the RH side by the same procedure as the LH side.
REMOVE REAR BRAKE DRUM SUB-ASSY
DISCONNECT SPEED SENSOR REAR LH (W/ ABS)
1. Remove the 2 bolts and nut, disconnect the speed sensor rear LH from the upper control arm assy.

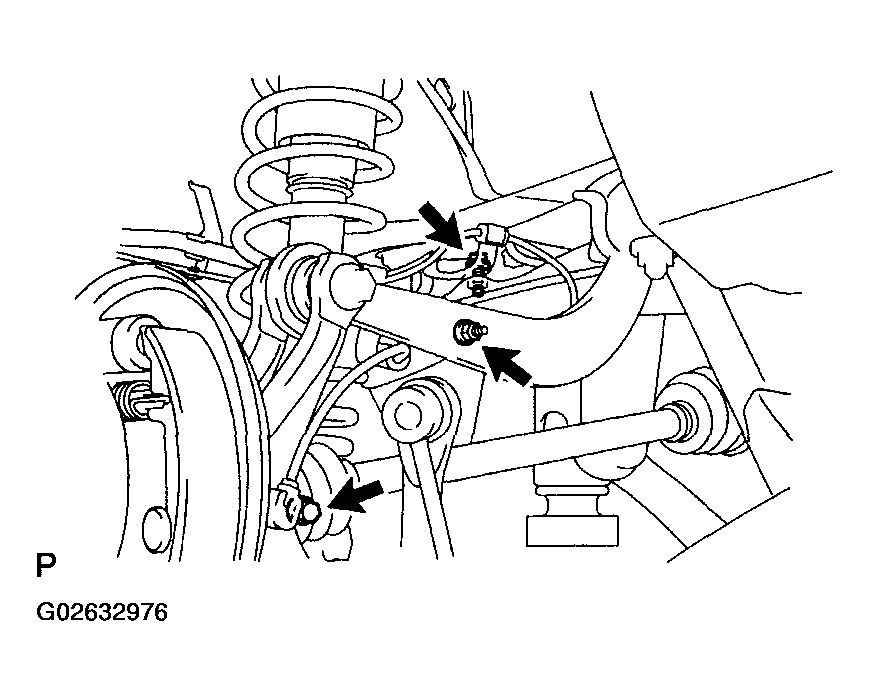

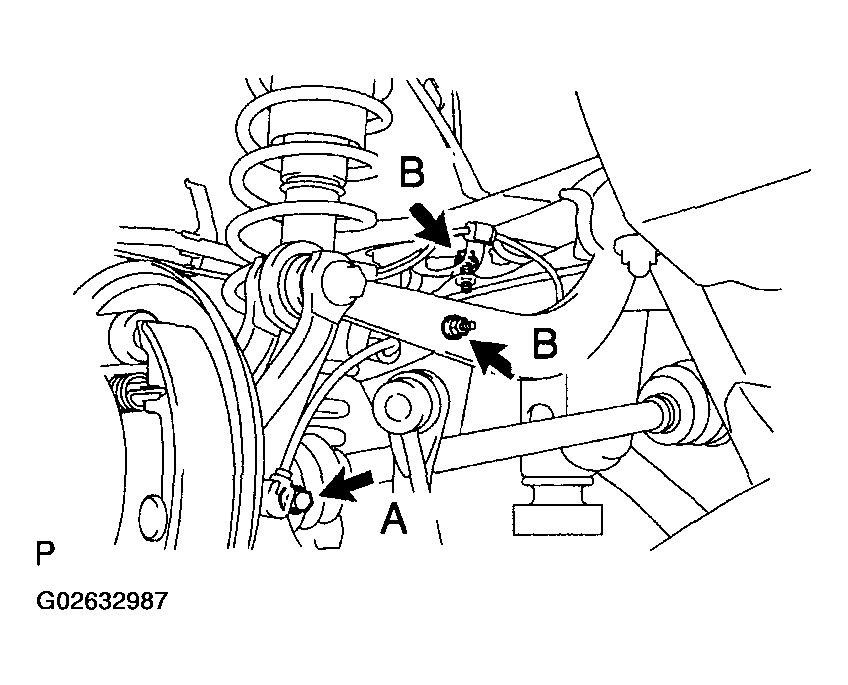

  Fig 1: Disconnecting Speed Sensor Rear LH (W/ ABS)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT SPEED SENSOR REAR RH (W/ ABS)
HINT:

Disconnect the RH side by the same procedure as the LH side.
REMOVE FRONT BRAKE SHOE (See ABS WITH EBD SYSTEM - DIAGNOSTICS )
SST 09718-00010

HINT:

Use the same manner described above to the other side.
REMOVE PARKING BRAKE SHOE STRUT SET LH (See PARKING BRAKE )
SST 09703-30010
REMOVE PARKING BRAKE SHOE STRUT SET RH
SST 09703-30010

HINT:

Remove the RH side by the same procedure as the LH side.
REMOVE REAR BRAKE SHOE (See DISC & DRUM )
SST 09718-00010

HINT:

Use the same manner described above to the other side.
DISCONNECT PARKING BRAKE CABLE ASSY NO.3 (See REPLACEMENT )
DISCONNECT PARKING BRAKE CABLE ASSY NO.2
HINT:

Disconnect the RH side by the same procedure as the LH side.
DISCONNECT REAR BRAKE TUBE NO.4 (See DRIVE SHAFT, PROPELLER SHAFT, AXLE )
SST 09023-00101
DISCONNECT REAR BRAKE TUBE NO.3
SST 09023-00101

HINT:

Disconnect the RH side by the same procedure as the LH side.
SEPARATE REAR SUSPENSION ARM ASSY NO.1 LH (See DRIVE SHAFT, PROPELLER SHAFT, AXLE )
SEPARATE REAR SUSPENSION ARM ASSY NO.1 RH
HINT:

Separate the RH side by the same procedure as the LH side.
SEPARATE UPPER CONTROL ARM ASSY
1. Remove the bolt and nut, separate the upper control arm assy.
NOTE: When removing the bolt, stop the nut from rotating and loosen the bolt.

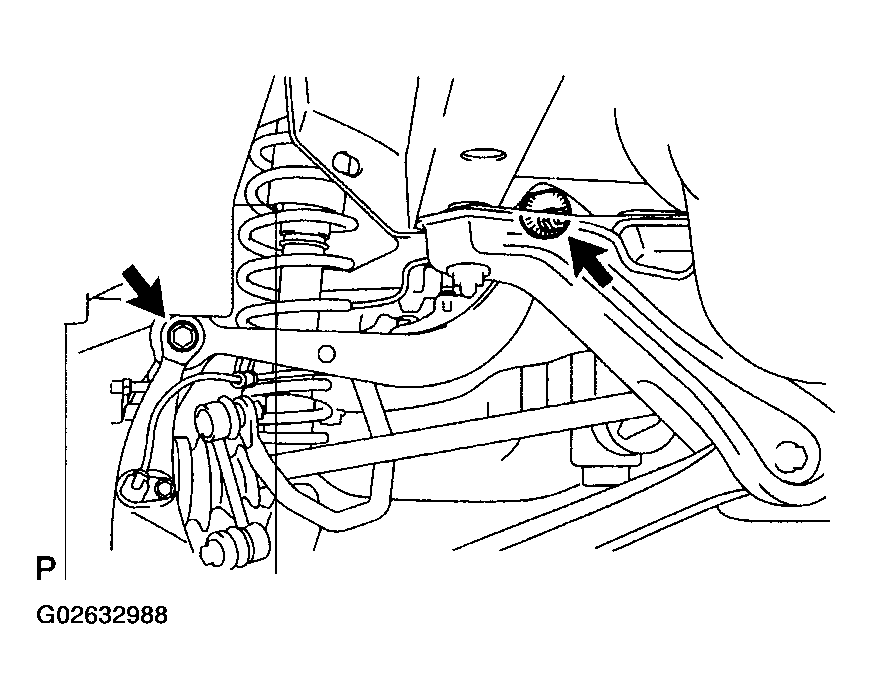

Fig 2: Removing Bolt And Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR AXLE ASSY LH (See DRIVE SHAFT, PROPELLER SHAFT, AXLE )
REMOVE REAR AXLE ASSY RH
HINT:

Remove the RH side by the same procedure as the LH side.
REMOVE REAR SUSPENSION ARM ASSY NO.1 LH
1. Remove the bolt and nut, disconnect the rear shock absorber with coil spring.
  NOTE: When removing the bolt, stop the nut from rotating and loosen the bolt.

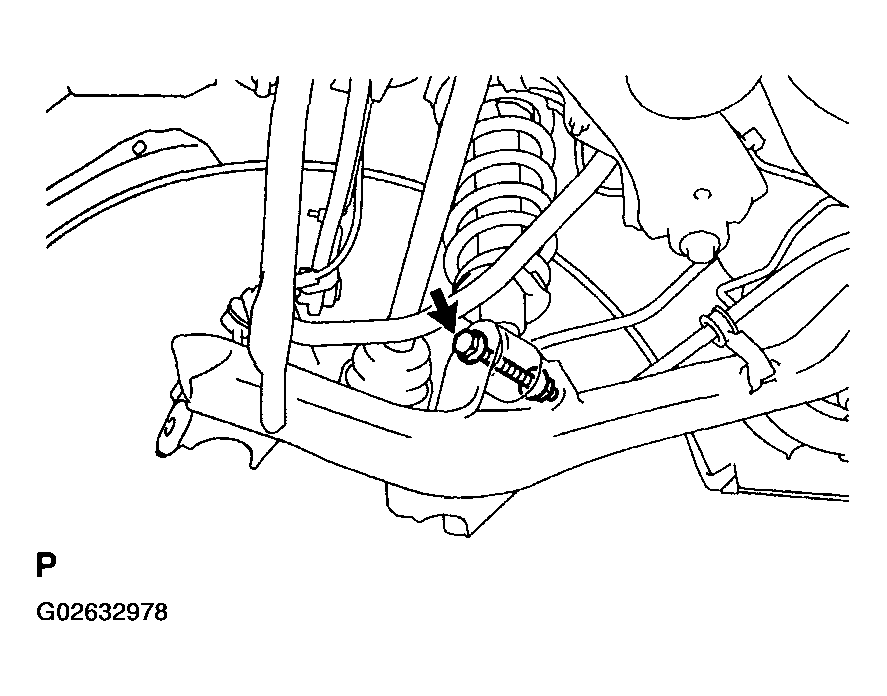

  Fig 3: Removing Bolt And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and nut, disconnect the rear side rear suspension arm assy No.1 LH.
  NOTE: When removing the bolt, stop the nut from rotating and loosen the bolt.

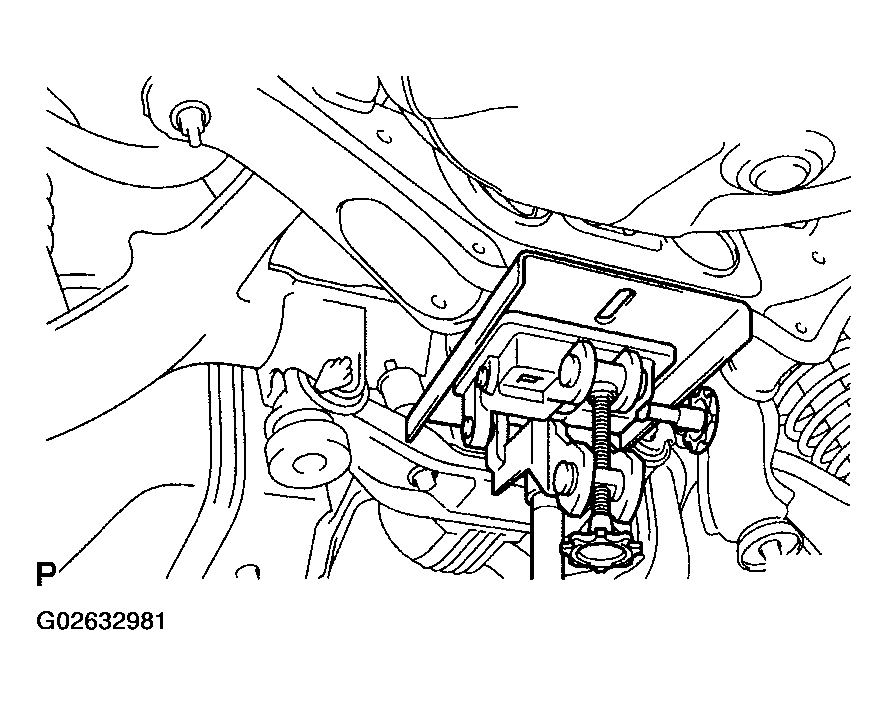

  Fig 4: Removing Bolt And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the front side 3 bolts and rear suspension arm assy No.1 LH.

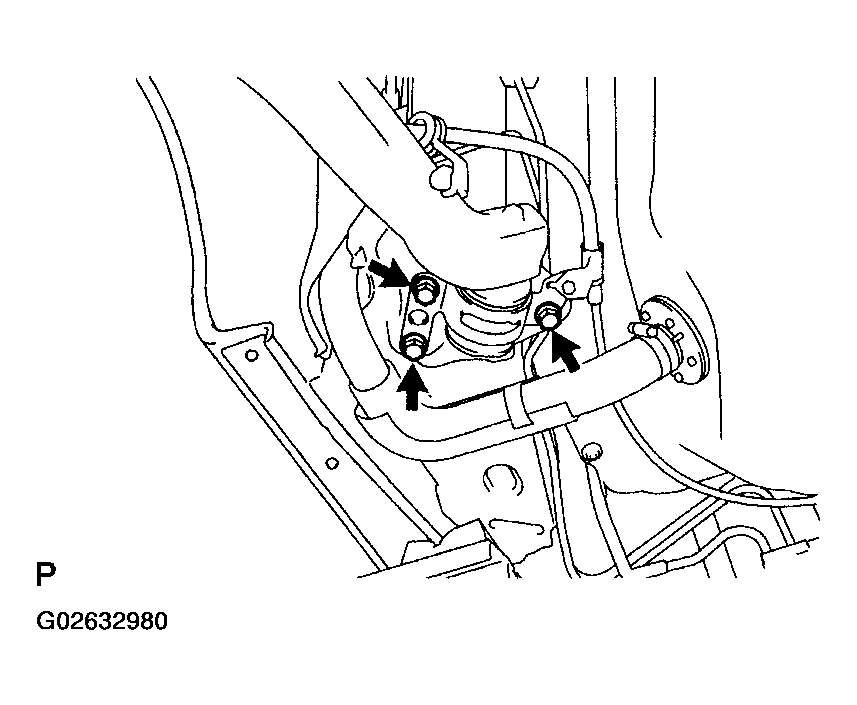

  Fig 5: Removing Front Side Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SUSPENSION ARM ASSY NO.1 RH
HINT:

Remove the RH side by the same procedure as the LH side.
REMOVE REAR SUSPENSION MEMBER SUB-ASSY
1. Lower the rear suspension member sub-assy with a jack.

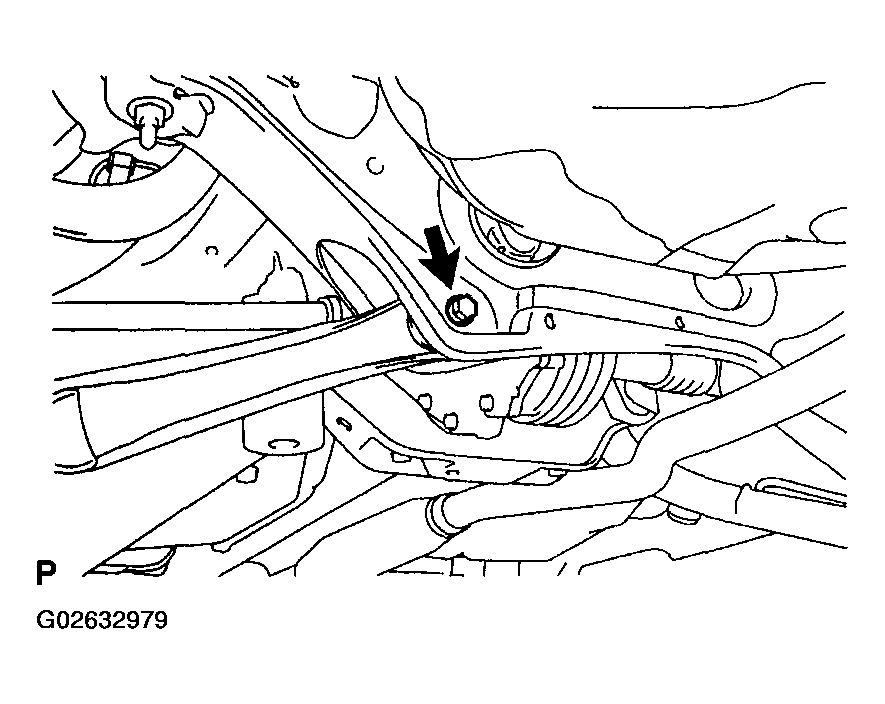

  Fig 6: Lowering Rear Suspension Member Sub-Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and 2 nuts from the rear suspension member sub-assy.

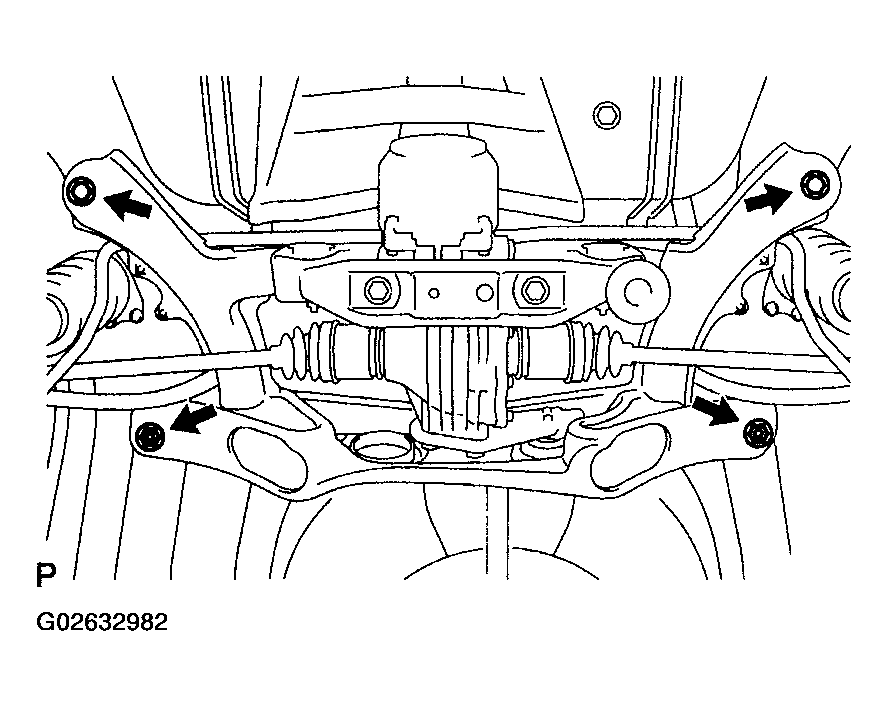

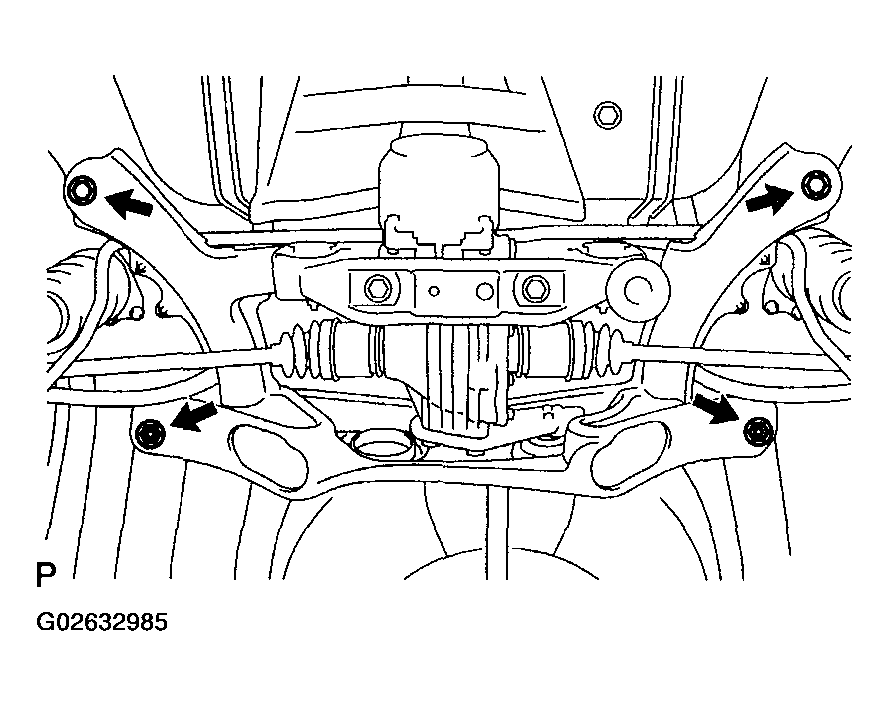

  Fig 7: Removing Bolts And Nuts From Rear Suspension Member Sub-Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE UPPER CONTROL ARM ASSY
1. Make matchmarks on the camber adjust cam assy, camber adjust cam No.2 and rear suspension member sub-assy.
2. Remove the nut, camber adjust cam assy and camber adjust cam No.2.

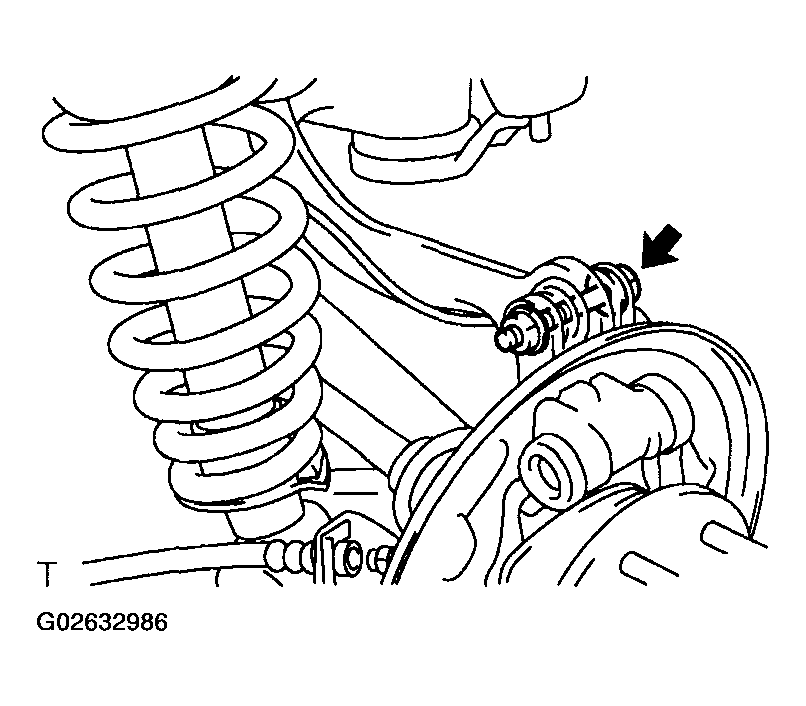

  Fig 8: Making Matchmarks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL UPPER CONTROL ARM ASSY
1. Insert the camber adjust cam assy from the front side of the vehicle, temporarily tighten with nut through the camber adjust cam No.2.

  Fig 9: Installing Upper Control Arm Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SUSPENSION MEMBER SUB-ASSY
1. Install the rear suspension member sub-assy with 2 bolts and 2 nuts.
  Torque: 105 N.m (1,071 kgf.cm, 77 ft.lbf)

  Fig 10: Installing Rear Suspension Member Sub-Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEMPORARILY TIGHTEN UPPER CONTROL ARM ASSY
1. Install the upper control arm assy, temporarily tighten the bolt and nut.

  Fig 11: Tightening Upper Control Arm Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR AXLE ASSY LH (See DRIVE SHAFT, PROPELLER SHAFT, AXLE )
INSTALL REAR AXLE ASSY RH
HINT:

Install the RH side by the same procedure as the LH side.
INSTALL REAR SUSPENSION ARM ASSY NO.1 LH (See DRIVE SHAFT, PROPELLER SHAFT, AXLE )
INSTALL REAR SUSPENSION ARM ASSY NO.1 RH
HINT:

Install the RH side by the same procedure as the LH side.
CONNECT REAR BRAKE TUBE NO.4 (See DRIVE SHAFT, PROPELLER SHAFT, AXLE )
SST 09023-00101
CONNECT REAR BRAKE TUBE NO.3
SST 09023-00101

HINT:

Connect the RH side by the same procedure as the LH side.
CONNECT PARKING BRAKE CABLE ASSY NO.3 (See REPLACEMENT )
CONNECT PARKING BRAKE CABLE ASSY NO.2
HINT:

Connect the RH side by the same procedure as the LH side.
APPLICATION HIGH TEMPERATURE GREASE (See OVERHAUL )
INSTALL REAR BRAKE SHOE (See OVERHAUL )
SST 09718-00010

HINT:

Use the same manner described above to the other side.
INSTALL PARKING BRAKE SHOE STRUT SET LH (See OVERHAUL )
SST 09703-30010
INSTALL PARKING BRAKE SHOE STRUT SET RH
SST 09703-30010

HINT:

Install the RH side by the same procedure as the LH side.
INSTALL FRONT BRAKE SHOE (See OVERHAUL )
SST 09718-00010

HINT:

Use the same manner described above to the other side.
CHECK REAR DRUM BRAKE INSTALLATION (See OVERHAUL )
CONNECT SPEED SENSOR REAR LH (W/ ABS)
1. Connect the speed sensor rear LH with 2 bolts and nut.
  Torque:

  A: 8.0 N.m (82 kgf.cm, 71 in.lbf)

  B: 5.0 N.m (51 kgf.cm, 44 in.lbf)

  Fig 12: Connecting Speed Sensor Rear Bolts And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT SPEED SENSOR REAR RH (W/ ABS)
HINT:

Connect the RH side by the same procedure as the LH side.
INSTALL REAR BRAKE DRUM SUB-ASSY
ADJUST REAR DRUM BRAKE SHOE CLEARANCE (See OVERHAUL )
INSTALL REAR AXLE SHAFT LH NUT (See DRIVE SHAFT, PROPELLER SHAFT, AXLE )
INSTALL REAR AXLE SHAFT RH NUT
HINT:

Install the RH side by the same procedure as the LH side.
INSTALL REAR STABILIZER LINK ASSY LH (See DRIVE SHAFT, PROPELLER SHAFT, AXLE )
INSTALL REAR STABILIZER LINK ASSY RH
HINT:

Install the RH side by the same procedure as the LH side.
TEMPORARILY TIGHTEN PROPELLER W/CENTER BEARING SHAFT ASSY (See OVERHAUL )
FULLY TIGHTEN PROPELLER W/CENTER BEARING SHAFT ASSY (See OVERHAUL )
INSTALL EXHAUST PIPE ASSY (See EXHAUST )
CHECK FOR EXHAUST GAS LEAKS
STABILIZE SUSPENSION (See OVERHAUL )
FULLY TIGHTEN UPPER CONTROL ARM ASSY
1. Fully tighten the bolt and nut.
  Torque: 74 N.m (755 kgf.cm, 55 ft.lbf)

  NOTE: When installing the bolt, stop the nut from rotating and tighten the bolt.
2. Align the matchmarks on the camber adjust cam No.2, fully tighten the nut.
  Torque: 74 N.m (755 kgf.cm, 55 ft.lbf)

  Fig 13: Tightening Bolt And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FULLY TIGHTEN REAR SUSPENSION ARM ASSY NO.1 LH (See DRIVE SHAFT, PROPELLER SHAFT, AXLE )
FULLY TIGHTEN REAR SUSPENSION ARM ASSY NO.1 RH
HINT:

Fully tighten the RH side by the same procedure as the LH side.
BLEED BRAKE LINE (See BLEEDING BRAKE SYSTEM )
INSPECT PARKING BRAKE LEVER TRAVEL (See ADJUSTMENT )
ADJUST PARKING BRAKE LEVER TRAVEL (See ADJUSTMENT )
INSPECT AND ADJUST REAR WHEEL ALIGNMENT (See ADJUSTMENT )
CHECK ABS SPEED SENSOR SIGNAL (W/ ABS) (See PRE-CHECK )
