Rear Suspension: Components

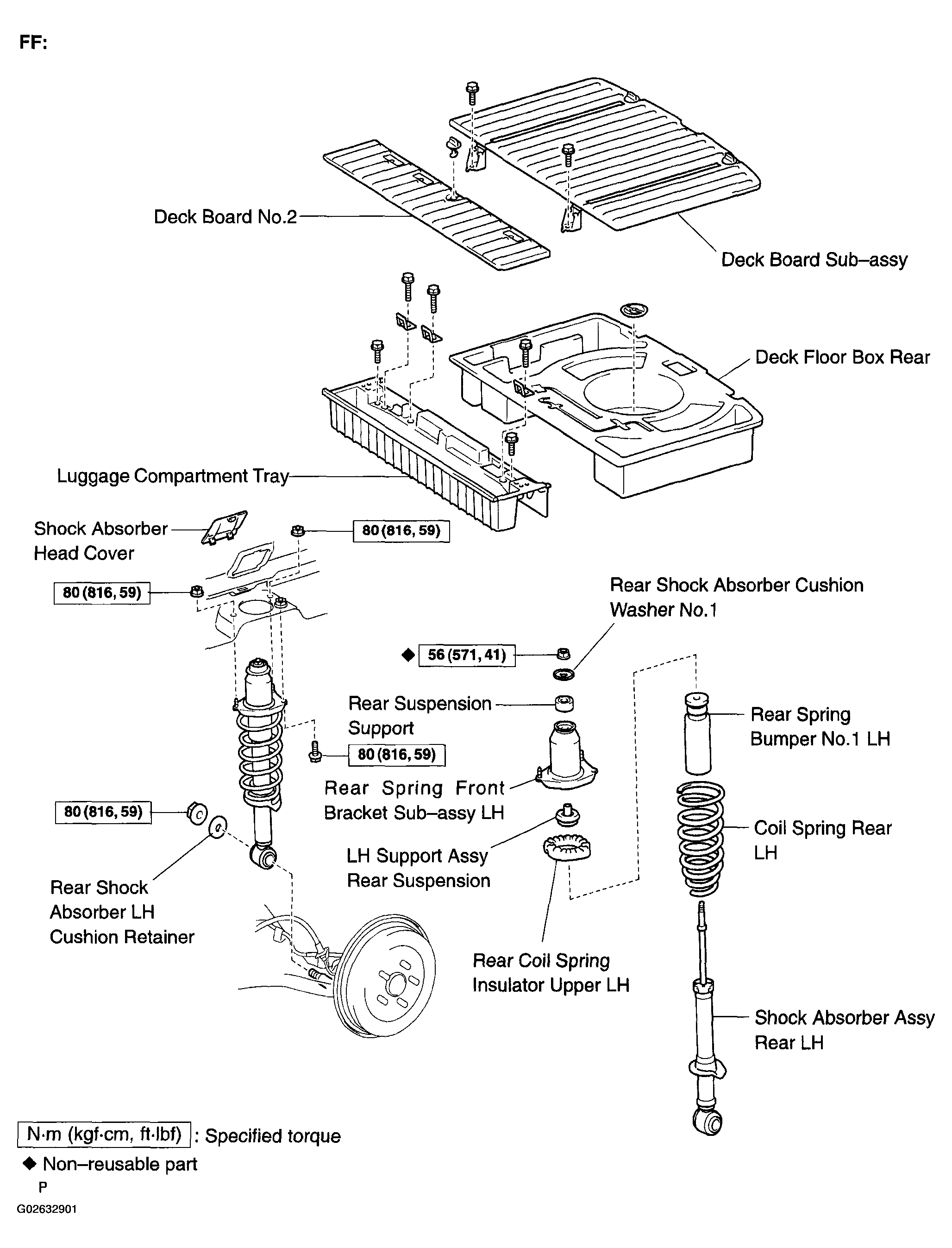

Fig 1: Identifying Components Rear Suspension (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

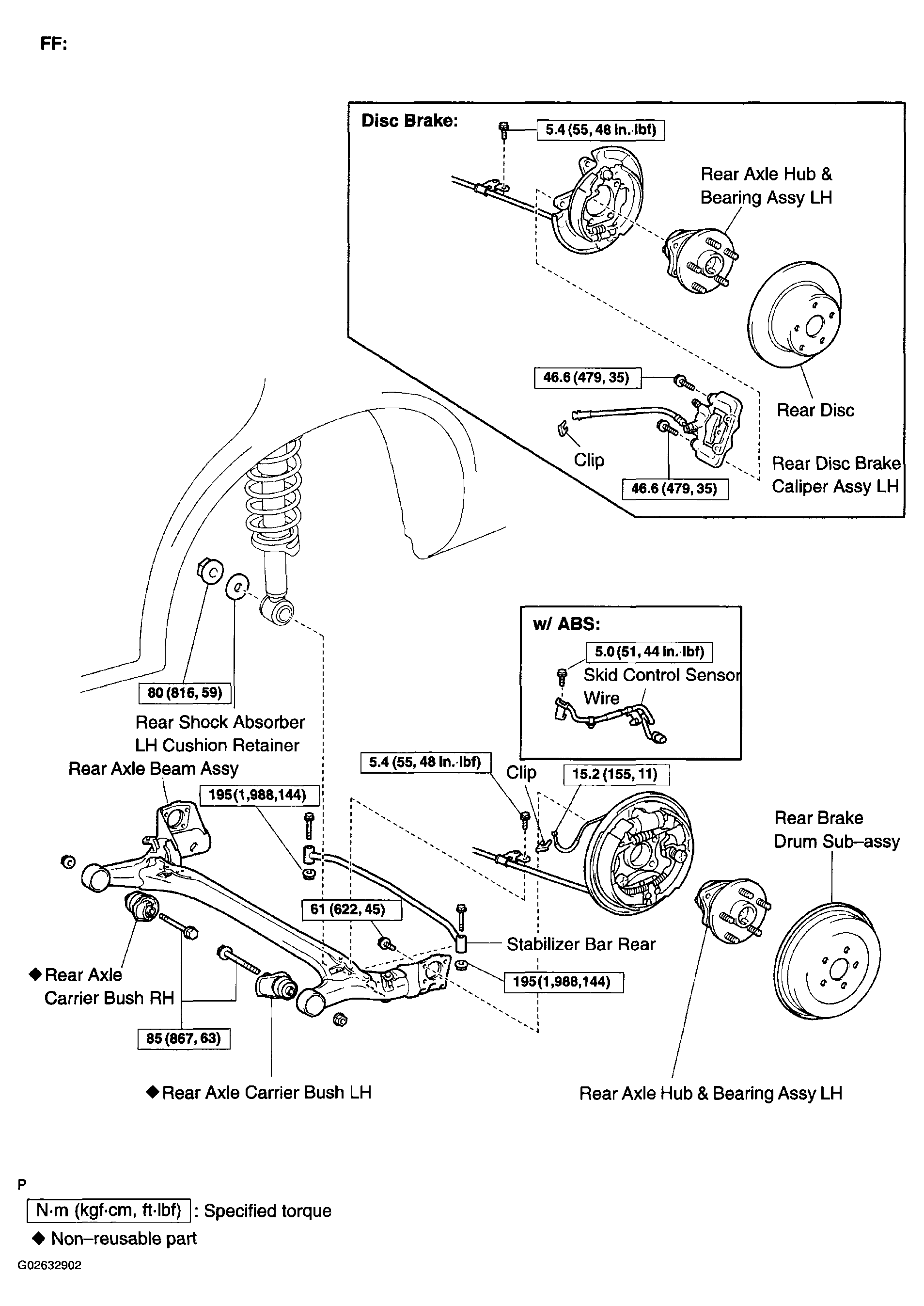

Fig 2: Identifying Components Rear Suspension (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

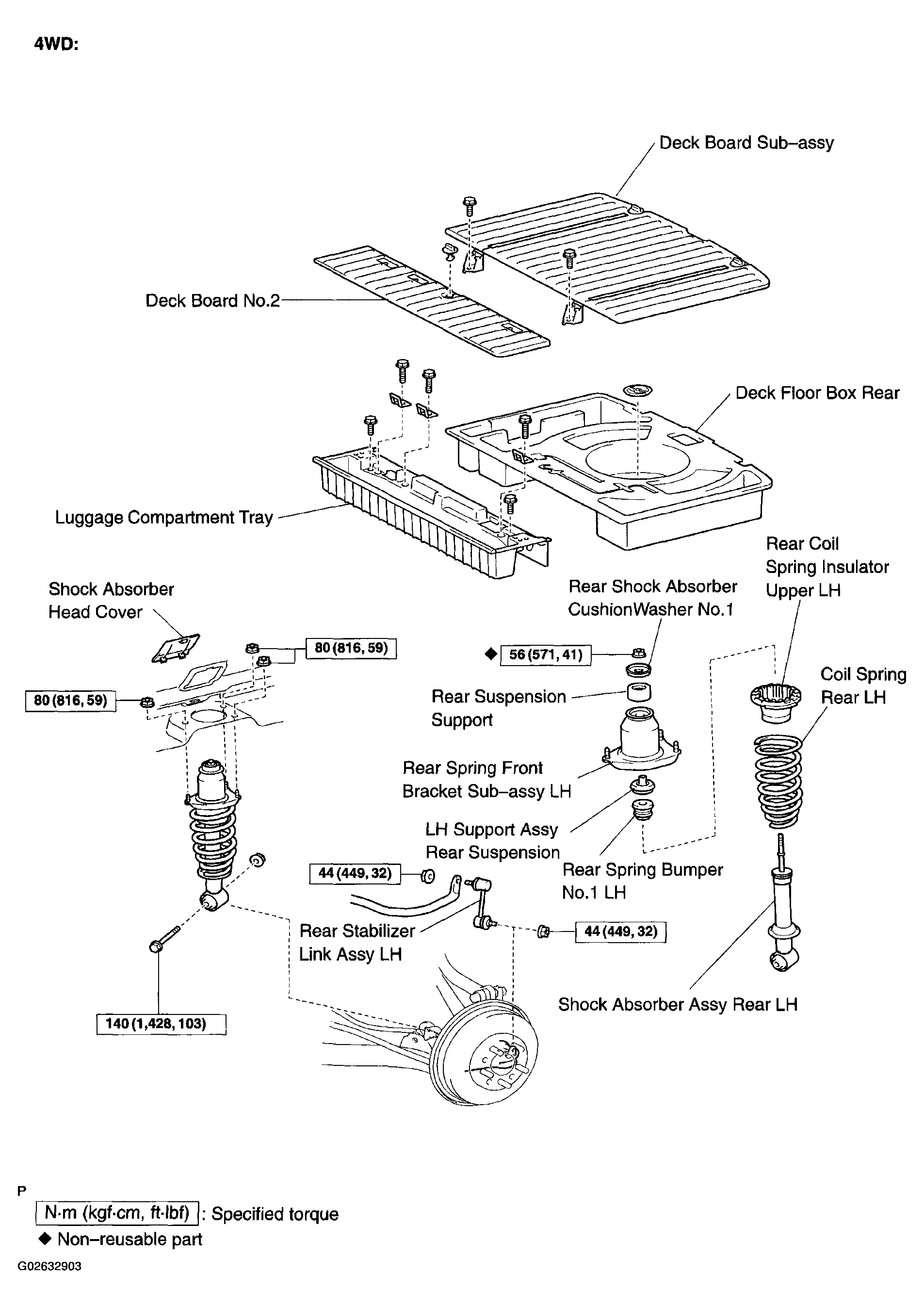

Fig 3: Identifying Components Rear Suspension (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

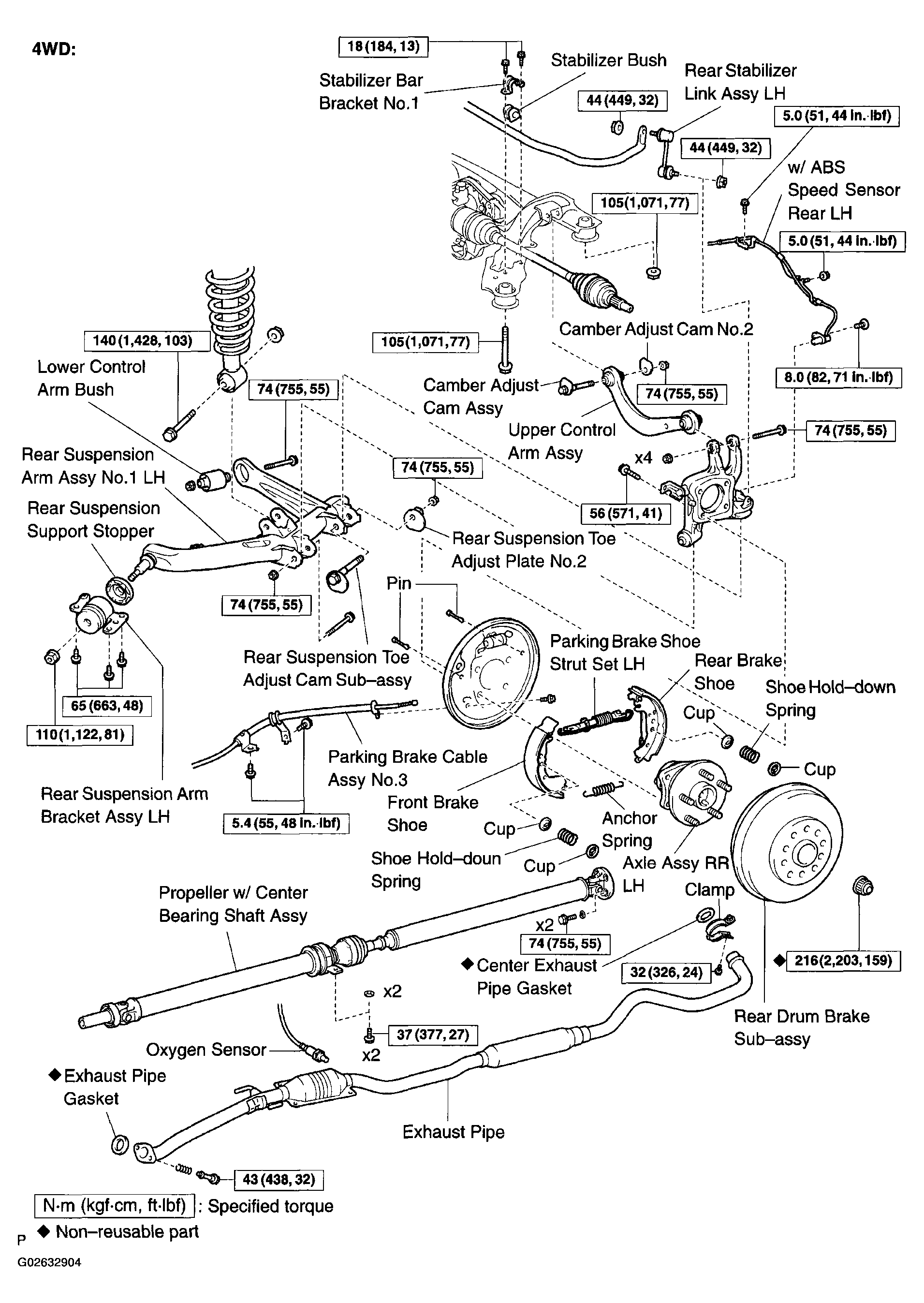

Fig 4: Identifying Components Rear Suspension (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
