Automatic Transmission Shift Lever Assembly: Overhaul
HINT:
COMPONENTS:
SHIFT LEVER ASSY (See COMPONENTS )
- REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER (See REPLACEMENT )
- REMOVE FLOOR CARPET COVER CENTER RH (See REPLACEMENT )
- REMOVE FLOOR CARPET COVER CENTER LH (See REPLACEMENT )
- REMOVE CONSOLE BOX ASSY (See REPLACEMENT )
- DISCONNECT TRANSMISSION CONTROL CABLE ASSY

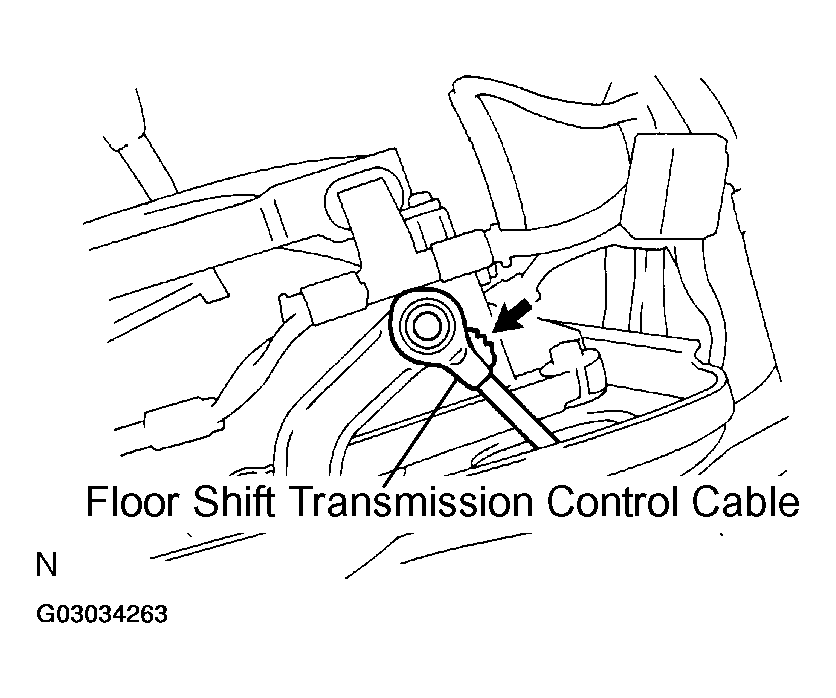

- Disconnect the floor shift transmission control cable assy end from the floor shift assy.
- REMOVE FLOOR SHIFT ASSY
- Disconnect the 3 connectors.
- Remove the 4 nuts and dismount the floor shift assy from the vehicle.
- REMOVE SHIFT LEVER KNOB SUB-ASSY
- Releasing the lock by pressing the click, disconnect the indicator lamp wire connector from the shift lever plate.
- Using a screwdriver, release the stopper of the connector.
- Using a small screwdriver, disengage the locking lug of the terminals 2 and 6, and pull the terminals out from the rear.

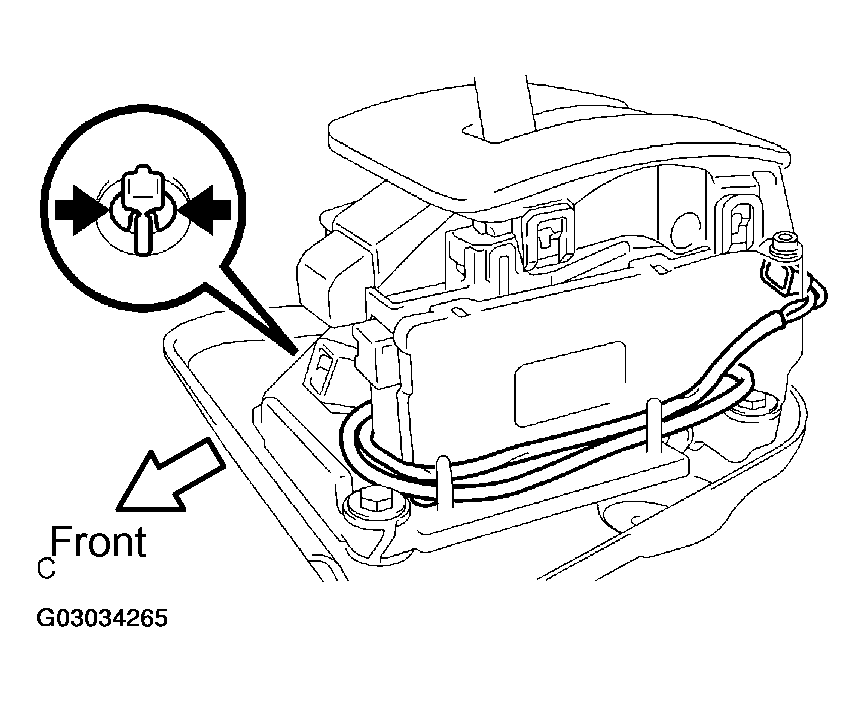

- Disconnect the 2 wire harnesses of the transmission control switch from the clamp.
- Lower the shift lever knob cover.
- Remove the 2 screws and shift lever knob from the shift lever.
- REMOVE FLOOR SHIFT LEVER KNOB COVER
- Remove the shift lever knob cover from the shift lever.
- REMOVE SHIFT LEVER KNOB BUTTON
- Using a screwdriver, release the claw and remove the shift lever knob button and spring from the shift lever knob.
- REMOVE TRANSMISSION CONTROL SWITCH
- Remove the screw from the shift lever knob, detach the transmission control switch together with the shift lever knob cover No. 1.
- Using a screwdriver, release the 2 claws and remove the transmission control switch from the shift lever knob cover No. 1.
- REMOVE INDICATOR LAMP WIRE SUB-ASSY
- Using a screwdriver, release the stopper of the connector.
- Using a small screwdriver, disengage the locking lug of the terminals 3 and 7, and pull the terminals out from the rear.
- Remove the indicator lamp wire from the position indicator housing lower.
- Remove the indicator lamp cap and indicator lamp bulb from the indicator lamp wire.
- REMOVE SHIFT LOCK RELEASE BUTTON COVER
- Using a small screwdriver, remove the shift lock release cover from the control position indicator plate.
- REMOVE CONTROL POSITION INDICATOR PLATE
- Using a screwdriver, release the 4 claws and remove the control position indicator plate from the position indicator housing lower.
- REMOVE POSITION INDICATOR HOUSING LOWER

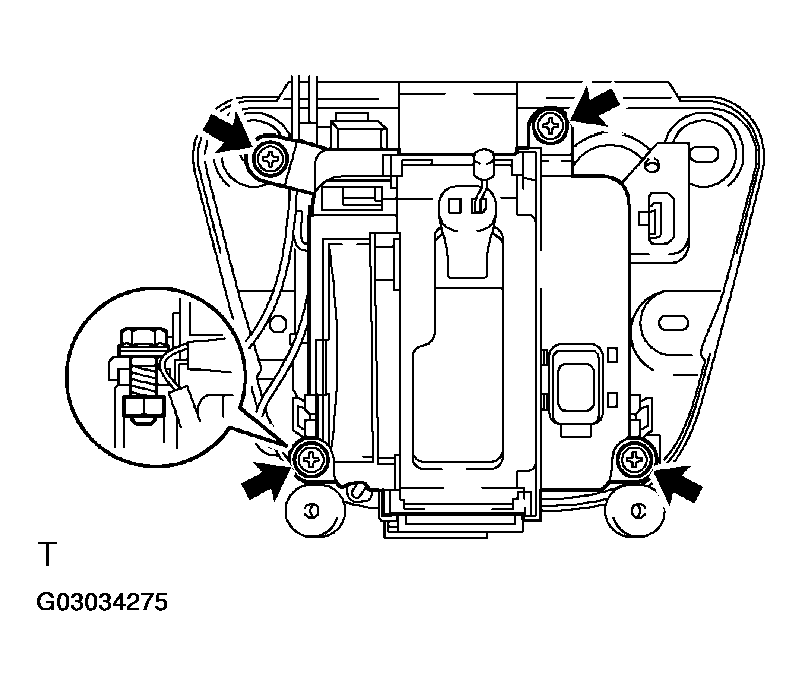

- Remove the 4 screws, detach the position indicator housing lower from the shift lever plate.
- REMOVE SHIFT LOCK RELEASE BUTTON

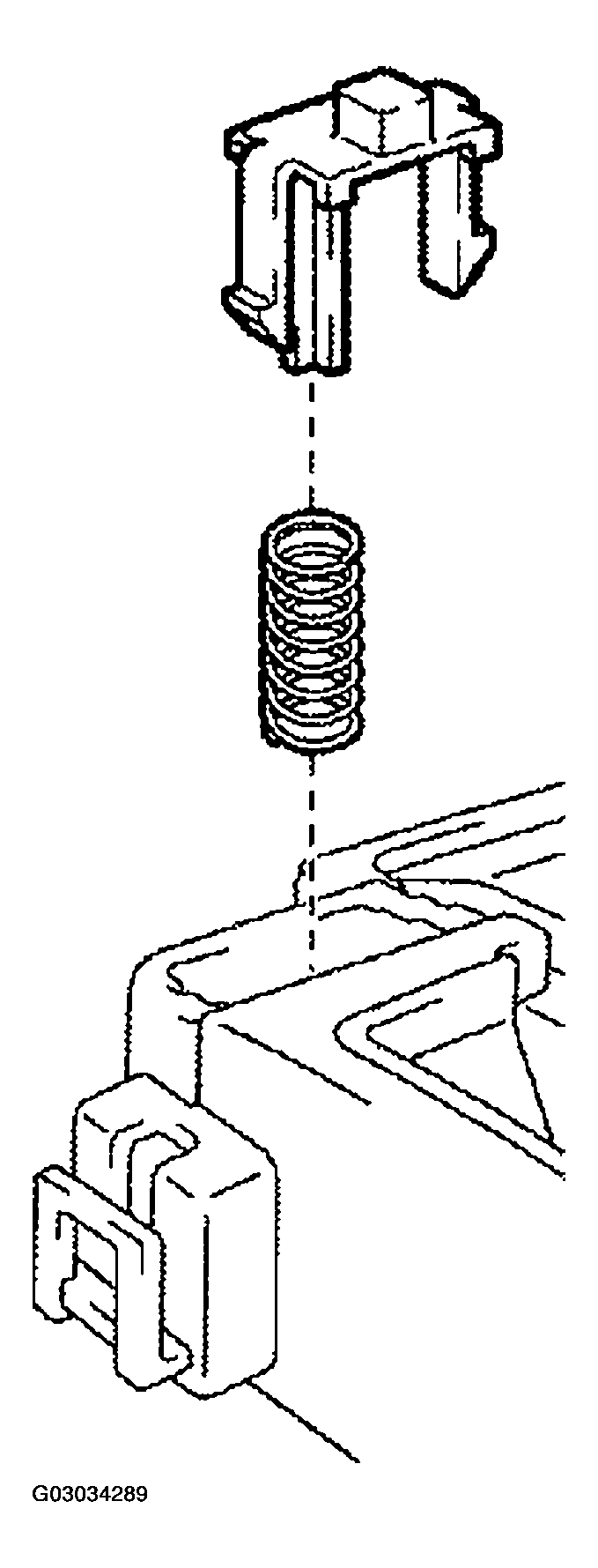

- While pressing the 2 claws, remove the shift lock release button and spring from the position indicator housing lower.
- REMOVE PATTERN SELECT SWITCH ASSY NO.1
- Using a screwdriver, release the 4 claws and remove the pattern select switch assy No.1 from the position indicator housing lower.
- REMOVE POSITION INDICATOR HOUSING UPPER
- Using a screwdriver, release the 4 claws and remove the position indicator housing upper from the position indicator housing lower.
- REMOVE POSITION INDICATOR SLIDE COVER
- Remove the position indicator slide cover from the position indicator housing lower.
- Remove the position indicator light guide from the position indicator lower.
- REMOVE POSITION INDICATOR SLIDE COVER
- Remove the position indicator slide cover No.2 from the position indicator slide cover.
- REMOVE TRANSMISSION SHIFT MAIN SWITCH
- Remove the screw and transmission shift main switch from the position indicator housing lower.
- REMOVE SHIFT LEVER KNOB SLEEVE
- Remove the shift lever knob sleeve from the shift lever.
- INSTALL SHIFT LEVER KNOB SLEEVE
- Apply MP grease to the shown part of the shift lever knob sleeve and install it to the shift lever.
- INSTALL TRANSMISSION SHIFT MAIN SWITCH
- Install the transmission shift main switch to the position indicator housing lower with the screw.
- INSTALL POSITION INDICATOR SLIDE COVER
- Install the position indicator slide cover No.2 to the position indicator slide cover.
- INSTALL POSITION INDICATOR SLIDE COVER
- Install the position indicator slide cover to the position indicator housing lower.
- Install the position indicator light guide to the position indicator housing lower.
- INSTALL POSITION INDICATOR HOUSING UPPER
- Install the position indicator housing upper to the position indicator housing lower.
- INSTALL PATTERN SELECT SWITCH ASSY NO.1
- Install the pattern select switch assy No. 1 to the position indicator housing lower.
HINT:
Fit the claws securely.
- INSTALL SHIFT LOCK RELEASE BUTTON
- Install the shift lock release button and greased spring to the position indicator housing lower.
HINT:
Fit the claws securely.
- INSTALL POSITION INDICATOR HOUSING LOWER

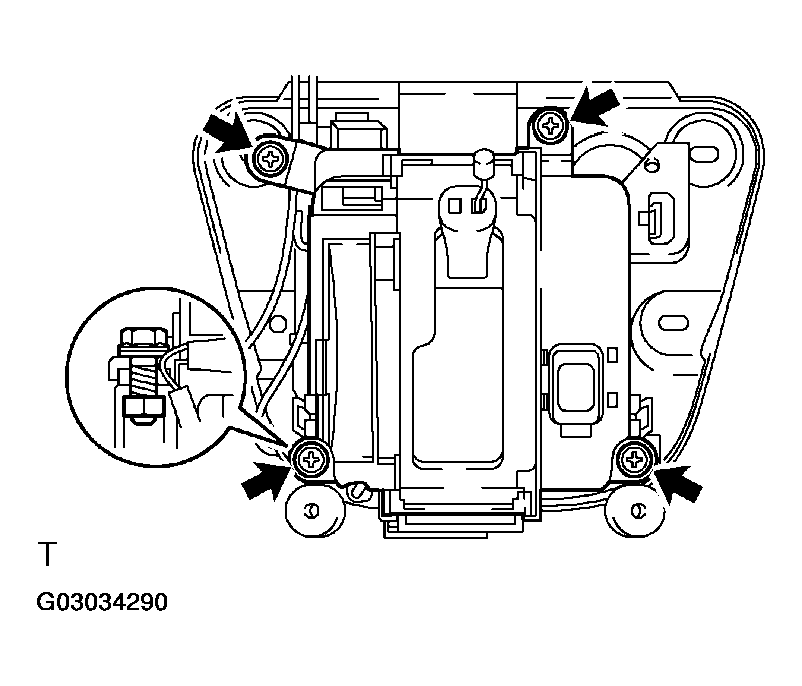

- Install the position indicator housing lower to the shift lever plate with 4 screws.
- INSTALL CONTROL POSITION INDICATOR PLATE
- Install the control position indicator plate to the position indicator housing lower.
HINT:
Fit the claws securely.
- INSTALL SHIFT LOCK RELEASE BUTTON COVER
- Install the shift lock release cover to the control position indicator plate.
- INSTALL INDICATOR LAMP WIRE SUB-ASSY
- Install the indicator lamp bulb and indicator lamp cap to the indicator lamp wire.
- Install the indicator lamp wire to the position indicator housing lower.
- INSTALL TRANSMISSION CONTROL SWITCH
- Install the transmission control switch to the shift lever knob cover No.1.
HINT:
Fit the claws securely.
- Install the shift lever knob cover No.1 to the shift lever knob with a screw.
- Install the transmission control switch to the shift lever knob cover No.1.
- INSTALL SHIFT LEVER KNOB BUTTON
- Apply MP grease to the shift lever knob button and spring and install them to the shift lever knob.
- INSTALL SHIFT LEVER KNOB COVER NO.1
- Install the shift lever knob cover to the shift lever.
- INSTALL SHIFT LEVER KNOB SUB-ASSY
- Install the wire harness of the transmission control switch as shown in the illustration.
- Install the shift lever knob to the shift lever with 2 screws.
- Install the shift lever knob cover to shift lever knob.

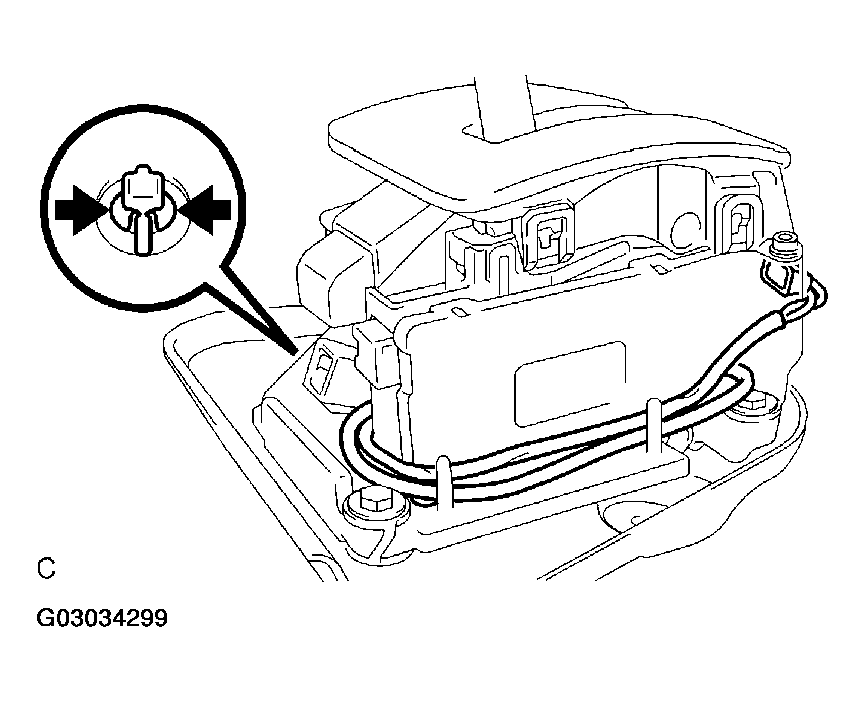

- Install the 2 wire harnesses of the transmission control switch.

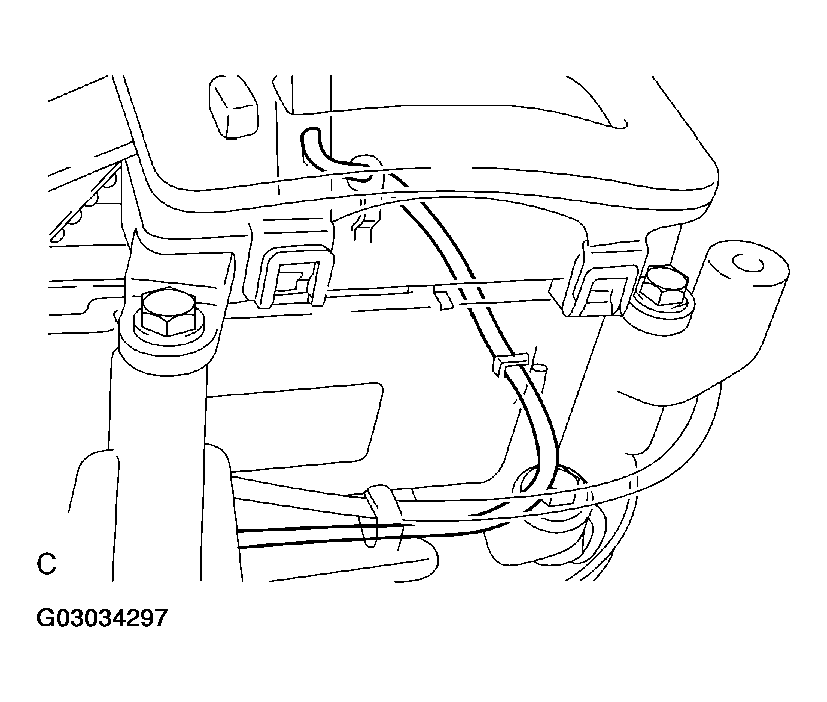

- Install the indicator lamp wire harness and connector as shown in the illustration.
- INSTALL FLOOR SHIFT ASSY
- Install the floor shift assy to the vehicle with the 4 nuts.
Torque: 12 N.m (122 kgf.cm, 9 ft.lbf)
HINT:
Tighten them in the order, A, B, C and D.
- Connect the 3 connectors.
- Install the floor shift assy to the vehicle with the 4 nuts.
- INSTALL TRANSMISSION CONTROL CABLE ASSY

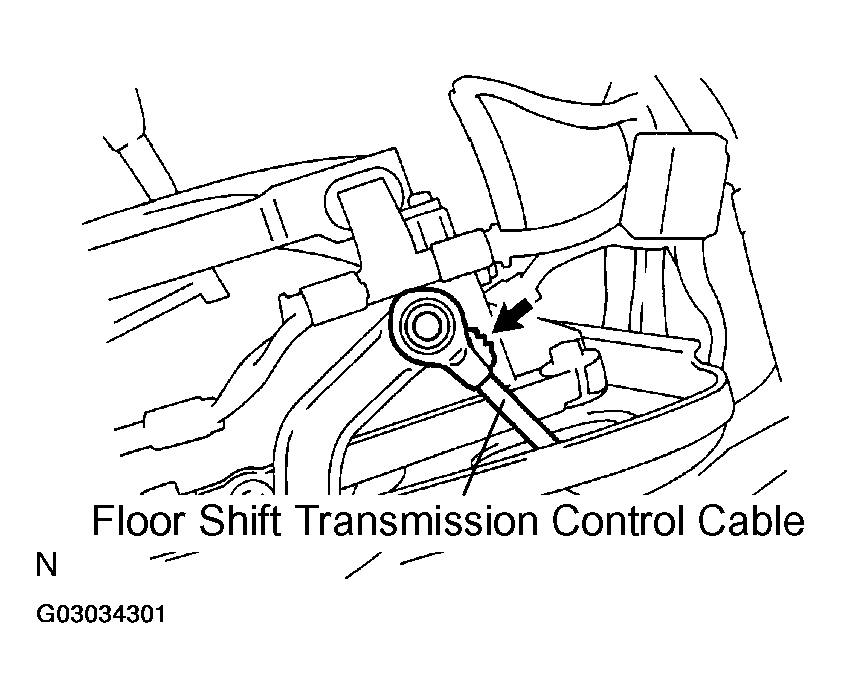

- Connect the floor shift transmission control cable end to the floor shift assy.
HINT:
Install it with the uneven surface facing up.
- INSPECT SHIFT LEVER POSITION (See ADJUSTMENT )
- ADJUST SHIFT LEVER POSITION (See ADJUSTMENT )
