Automatic Transmission Shift Lever Assembly: Components

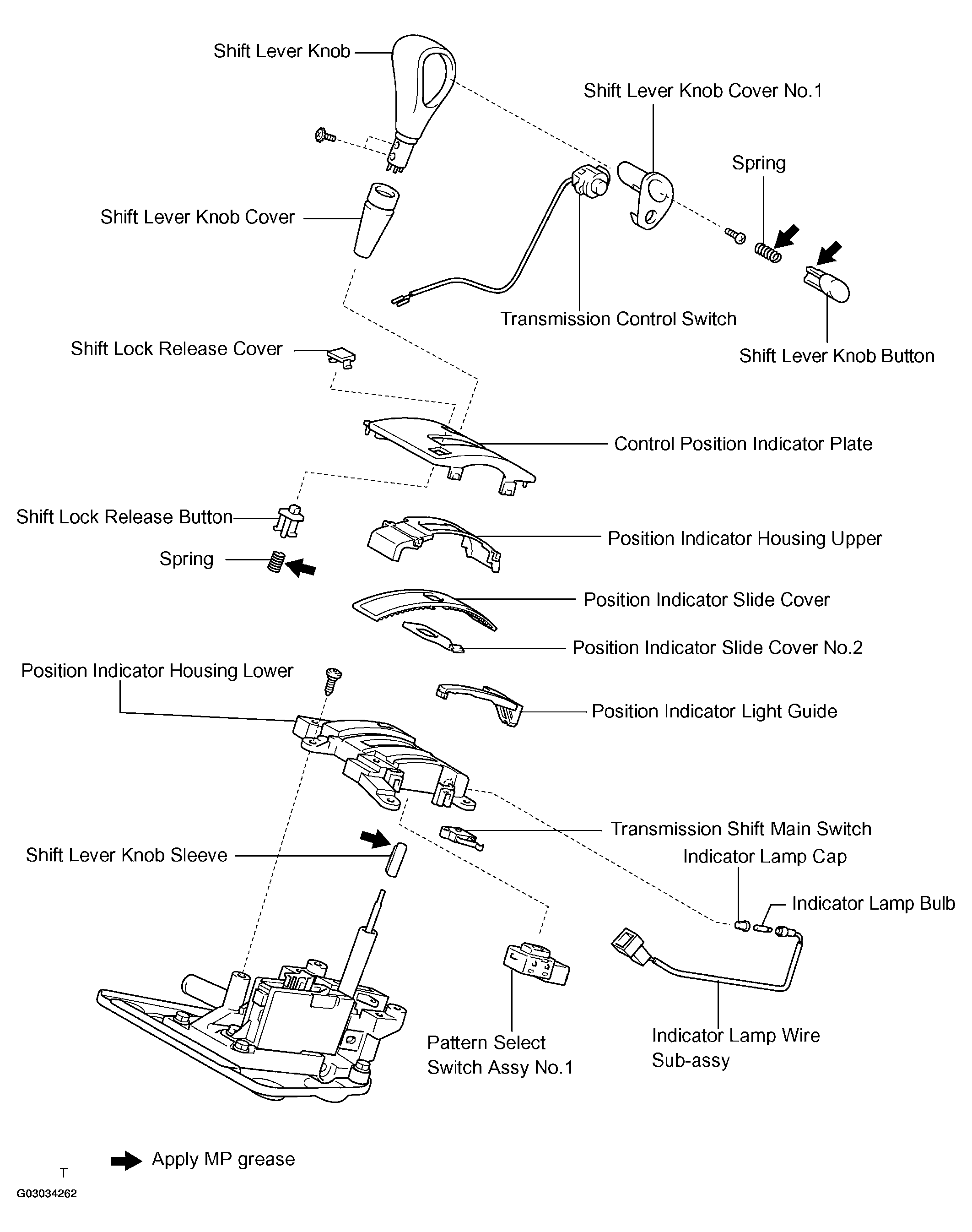

Fig 1: Identifying Shift Lever Assy Components

G03034262

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
