Instrument Panel: Removal

HINT:

Tape the screwdriver tip before using it to pry parts.

• REMOVE STEERING WHEEL PAD AND STEERING WHEEL  (See REMOVAL in TILT STEERING COLUMN article.)
• REMOVE DOOR SCUFF PLATES
• REMOVE COWL SIDE TRIMS
• REMOVE NO. 1 LOWER FINISH PANEL
  1. Remove the bolt, screw and DLC3.
  2. Using a screwdriver, remove the No. 1 lower finish panel.
• REMOVE INSTRUMENT PANEL LOWER PAD INSERT
• REMOVE COLUMN COVERS

  Remove the 3 screws and upper and lower column covers.

• REMOVE SPIRAL CABLE  (See REMOVAL in TILT STEERING COLUMN article.)
• REMOVE WIPER AND WASHER SWITCH AND LIGHT CONTROL SWITCH AND HEADLIGHT DIMMER SWITCH  (See REMOVAL in TILT STEERING COLUMN article.)

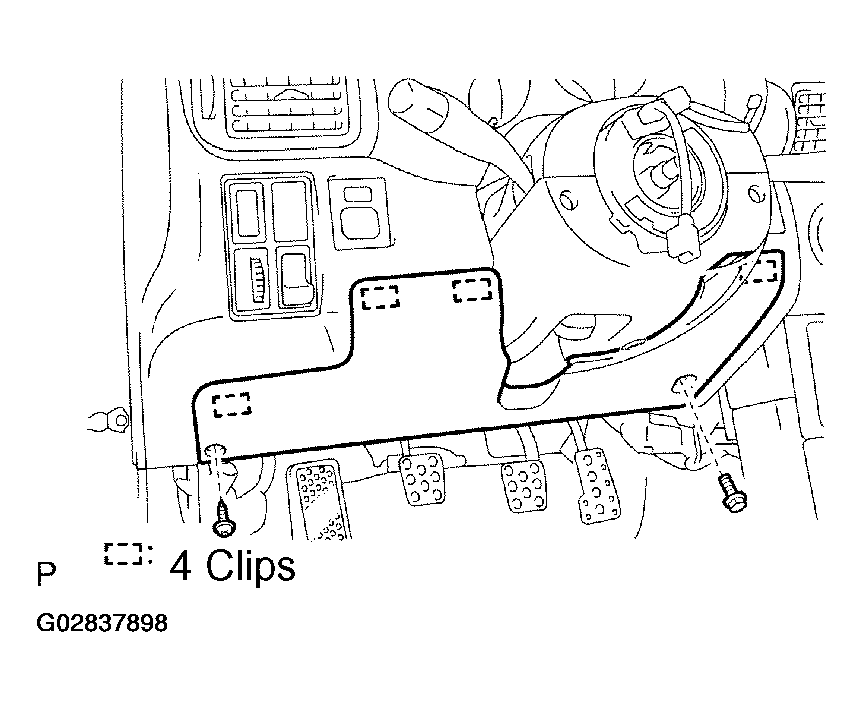

  Fig 1: Removing No. 1 Lower Finish Panel

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
• REMOVE INSTRUMENT CLUSTER FINISH PANEL

  Using a screwdriver, remove the cluster finish panel.

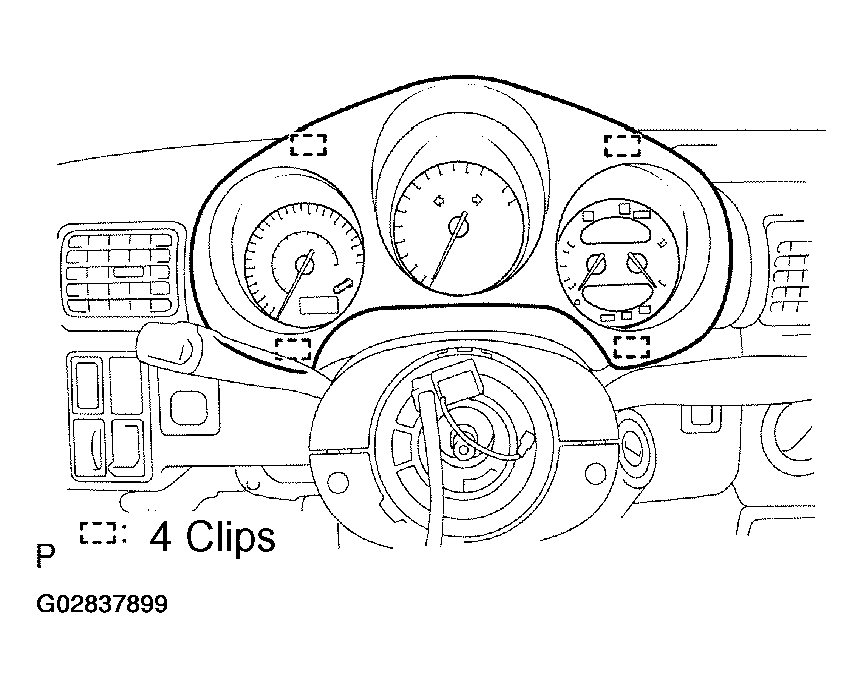

  Fig 2: Removing Cluster Finish Panel

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
• REMOVE COMBINATION METER
  1. Remove the 3 screws and combination meter.
  2. Disconnect the connectors.

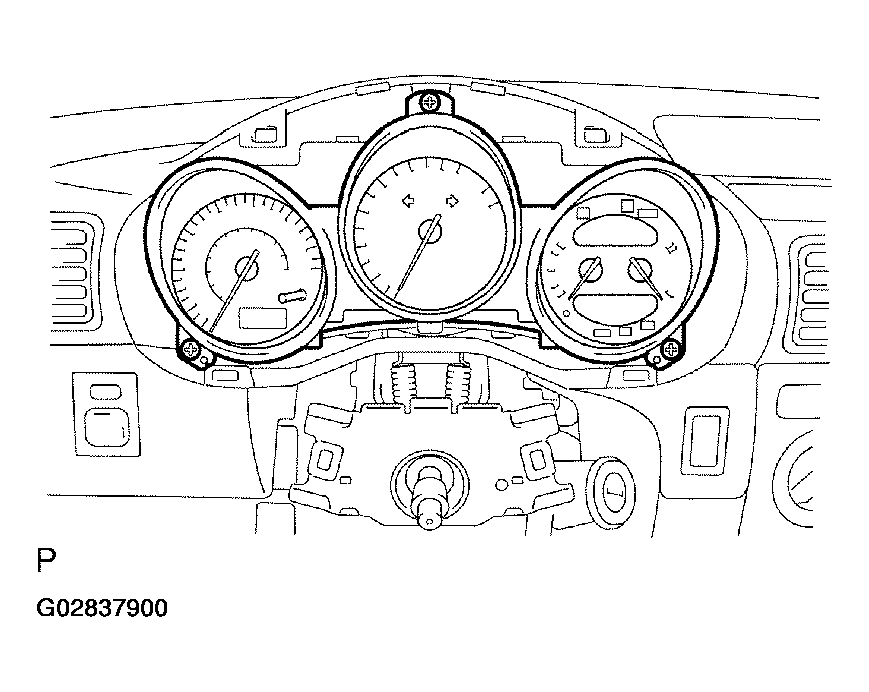

     Fig 3: Removing 3 Screws And Combination Meter

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
• REMOVE GLOVE COMPARTMENT DOOR
  1. Open the glove compartment door.
  2. Push both sides of the glove compartment door inward and pull it out.
• REMOVE PASSENGER AIRBAG ASSEMBLY  (See PASSENGER-SIDE AIR BAG MODULE in AIR BAG RESTRAINT SYSTEMS article.)
• REMOVE PASSENGER AIRBAG MANUAL ON-OFF SWITCH  (See PASSENGER-SIDE AIR BAG CUT-OFF SWITCH in AIR BAG RESTRAINT SYSTEMS article.)
• REMOVE HOOD RELEASE LEVER

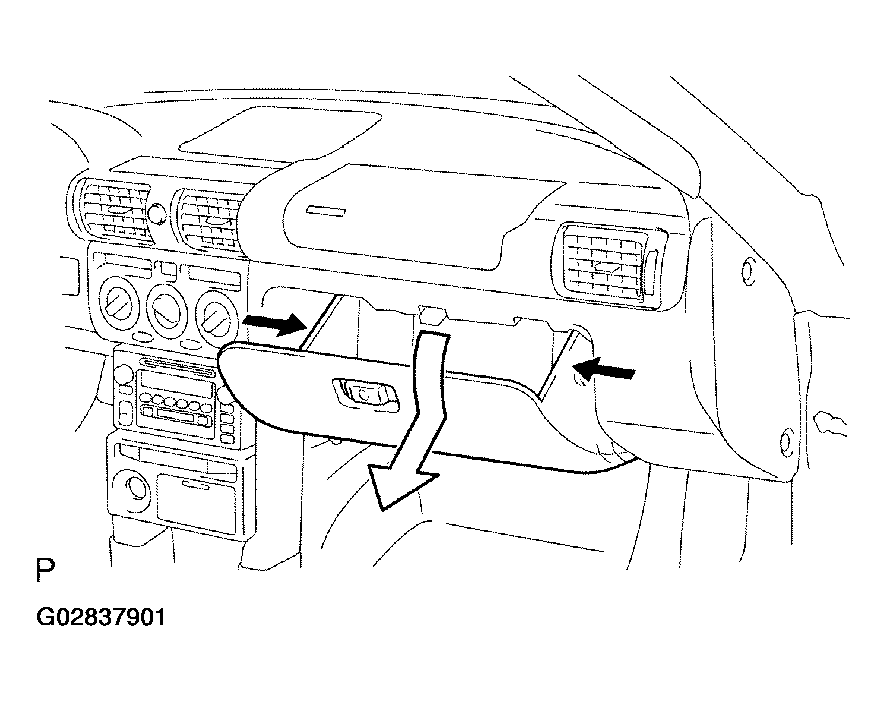

  Fig 4: Pushing Both Sides Of Glove Compartment Door Inward And Pulling It Out

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
• REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL
  1. Remove the 4 knobs and 2 screws.
  2. Using a screwdriver, remove the center cluster finish panel.
  3. Disconnect the clock connector from the clock.

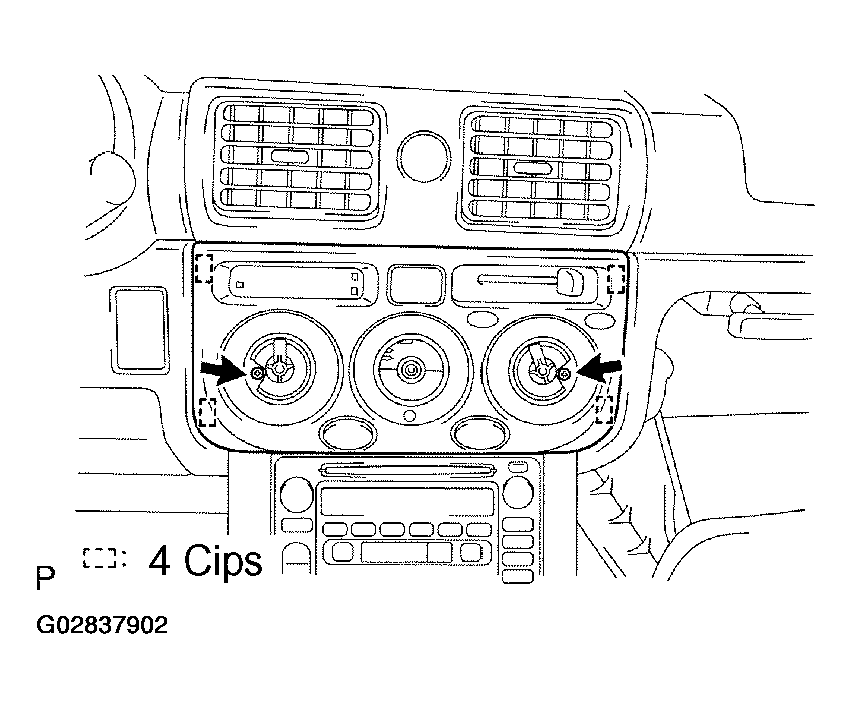

     Fig 5: Removing Center Cluster Finish Panel

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
• REMOVE ASH RECEPTACLE OUTER CASE AND STEREO PLAYER FINISH PANEL
  1. Remove the ash receptacle box.
  2. Remove the 2 bolts ash receptacle retainer.
  3. Using a screwdriver, remove the ash receptacle outer case.
  4. Using a screwdriver, remove the stereo finish panel.

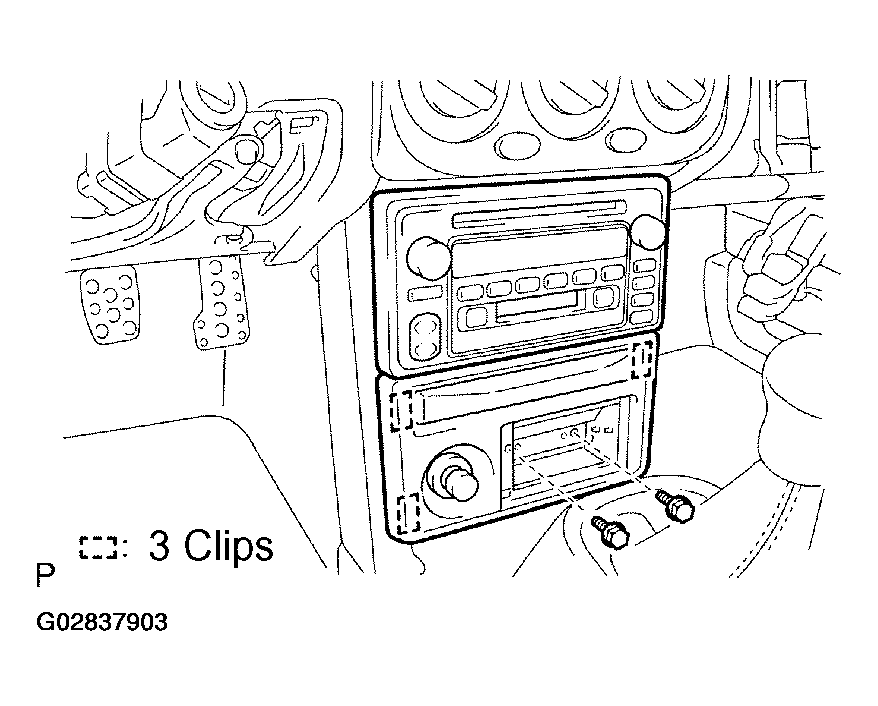

     Fig 6: Removing 2 Ash Receptacle Retainer Bolts

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
• REMOVE NO. 1 AND NO. 2 INSTRUMENT PANEL BRACE OUTER COVERS AND NO.3 INSTRUMENT PANEL BRACE INNER COVERS
  1. Using a screwdriver, remove the No. 2 instrument panel brace outer covers and No. 3 instrument panel brace inner covers.
  2. Remove the 4 screws and No. 1 instrument panel brace outer covers.
  3. Remove the 4 screws and stereo.
• DISCONNECT HEATER CONTROL CABLES (See  REMOVAL  ).
  Fig 7: Removing 4 Screws And No. 1 Instrument Panel Brace Outer Covers

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE: When the air mix damper control cables are disconnected, be careful not to bend the cables.
• REMOVE HEATER CONTROL ASSEMBLY
  1. Remove the 4 screws and control assembly.
  2. Disconnect the 2 connectors.
• REMOVE STEERING COLUMN (See  REMOVAL  )

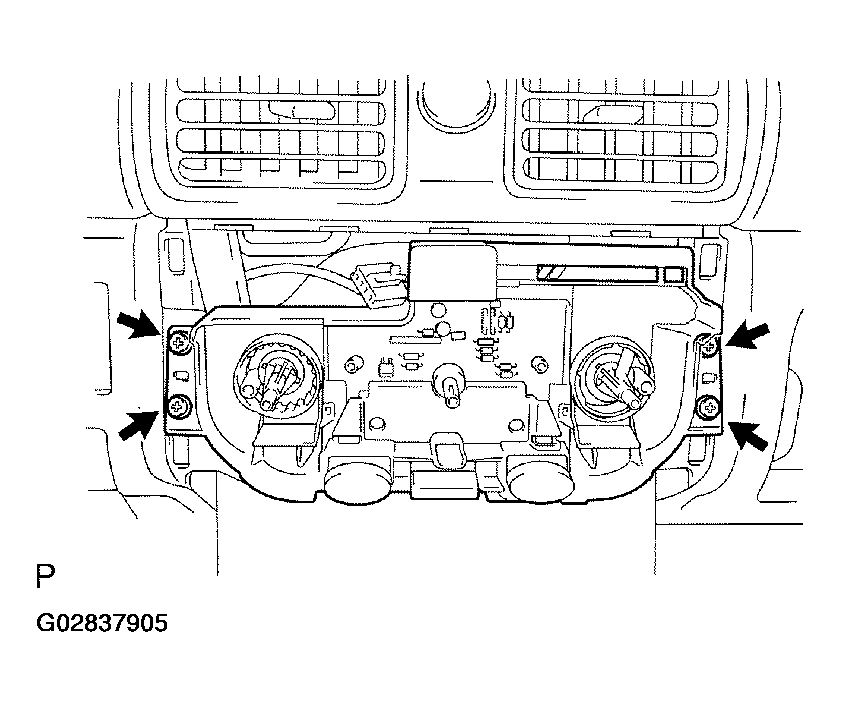

  Fig 8: Removing 4 Screws And Heater Control Assembly

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
• REMOVE FRONT PILLAR GARNISHES
  1. Remove the 2 screws and removable roof hook.
  2. Using a screwdriver, remove the front pillar garnish.
  3. Employ the same manner described above to the other side.
     Fig 9: Removing 2 Screws And Removable Roof Hook

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
• REMOVE INSTRUMENT PANEL
  1. Remove the nut, screw and No. 1 instrument panel lower mount bracket.
  2. Remove the 2 screws and center instrument panel bracket.
  3. Disconnect the connectors.
  4. Disengage the wire harness clamps.
  5. Remove the 5 bolts, nut, screw and instrument panel.
• REMOVE NO. 1 AND NO. 2 BRACES

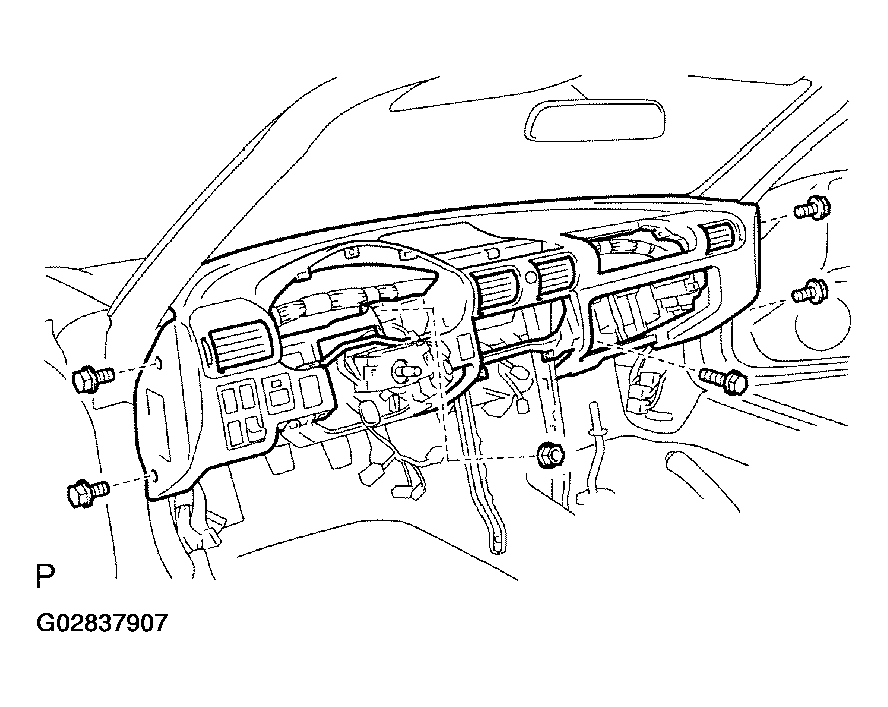

  Fig 10: Removing 5 Bolts, Nut, Screw And Instrument Panel

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
• REMOVE REINFORCEMENT
  1. Disconnect the connector.
  2. Disengage the wire harness clamps.
  3. Remove the 3 bolts, 5 nuts and reinforcement.

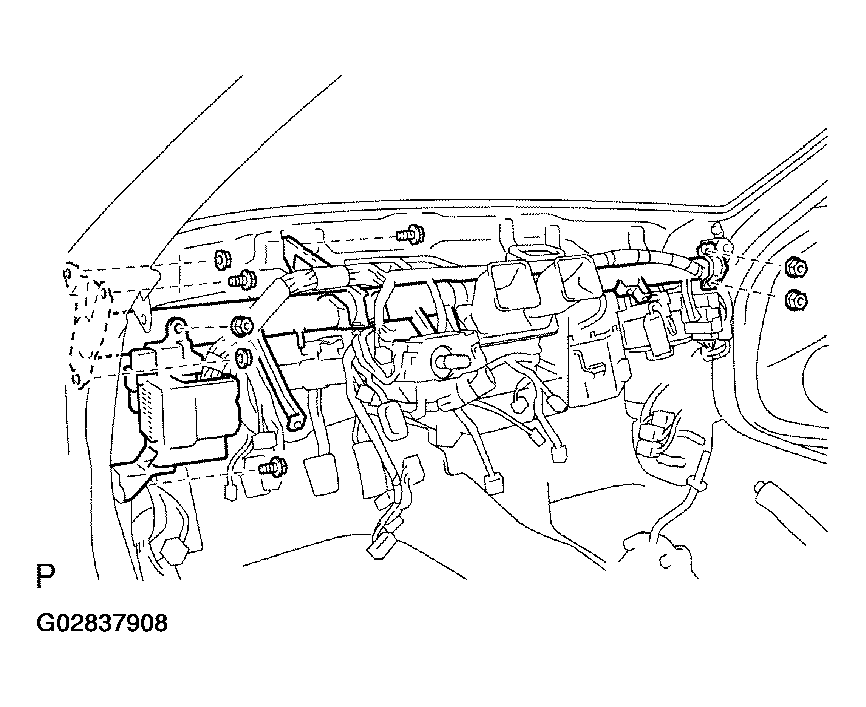

     Fig 11: Removing 3 Bolts, 5 Nuts And Reinforcement

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
• REMOVE CONSOLE BOX
  1. M/T:

     Remove the shift knob.

  2. SMT:

     Remove the shift hole bezel.

  3. Remove the side brake cover.
  4. Remove the 4 screws and console box.
  5. Disconnect the power window switch connector.

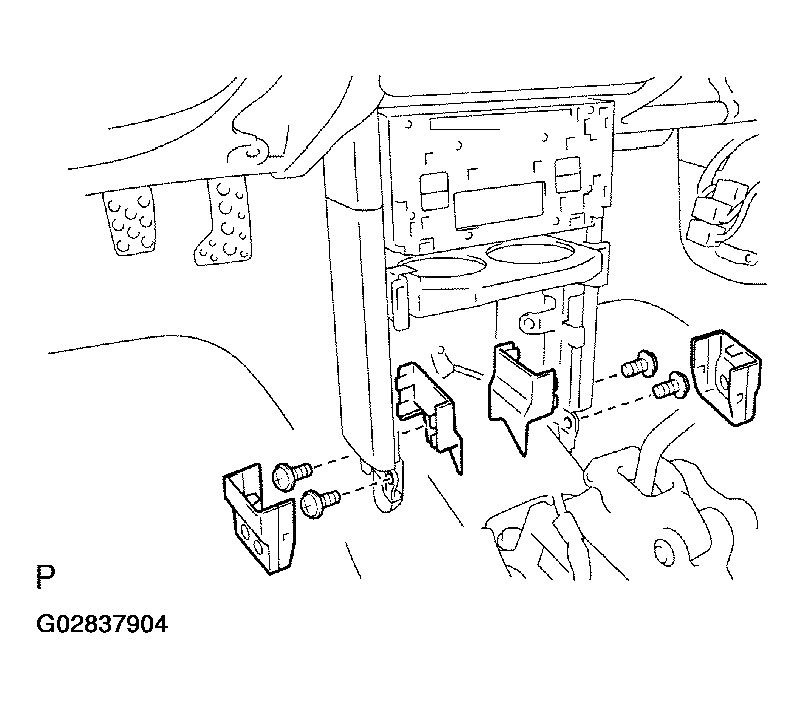

     Fig 12: Removing 4 Screws And Console Box

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
• REMOVE INSTRUMENT PANEL WIRE
• REMOVE NO. 1 HEATER TO REGISTER DUCT
• REMOVE NO. 2 HEATER TO REGISTER DUCT
• REMOVE NO. 3 HEATER TO REGISTER DUCT
• REMOVE NO. 1 INSTRUMENT PANEL RESISTER
• REMOVE NO. 2 INSTRUMENT PANEL RESISTER
• REMOVE NO. 3 INSTRUMENT PANEL RESISTER
• REMOVE LIGHT CONTROL RHEOSTAT
• REMOVE WINDOW LOCK SWITCH
• REMOVE CONTROL MIRROR SWITCH
