Tilt Steering Column: Removal
- REMOVE STEERING WHEEL PAD NOTE: If the airbag connector is disconnected with the ignition switch at ON, DTCs will be recorded.
- Place the front wheels facing straight ahead.

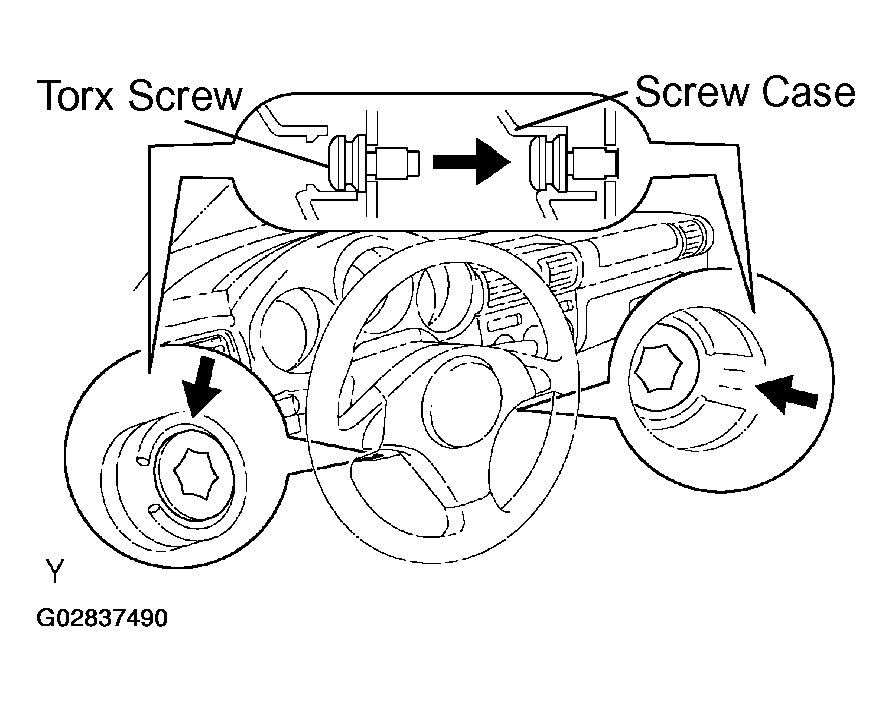

- Using a Torx socket wrench (T30), loosen the 2 Torx screws until the groove along the screw circumference catches on the screw case.

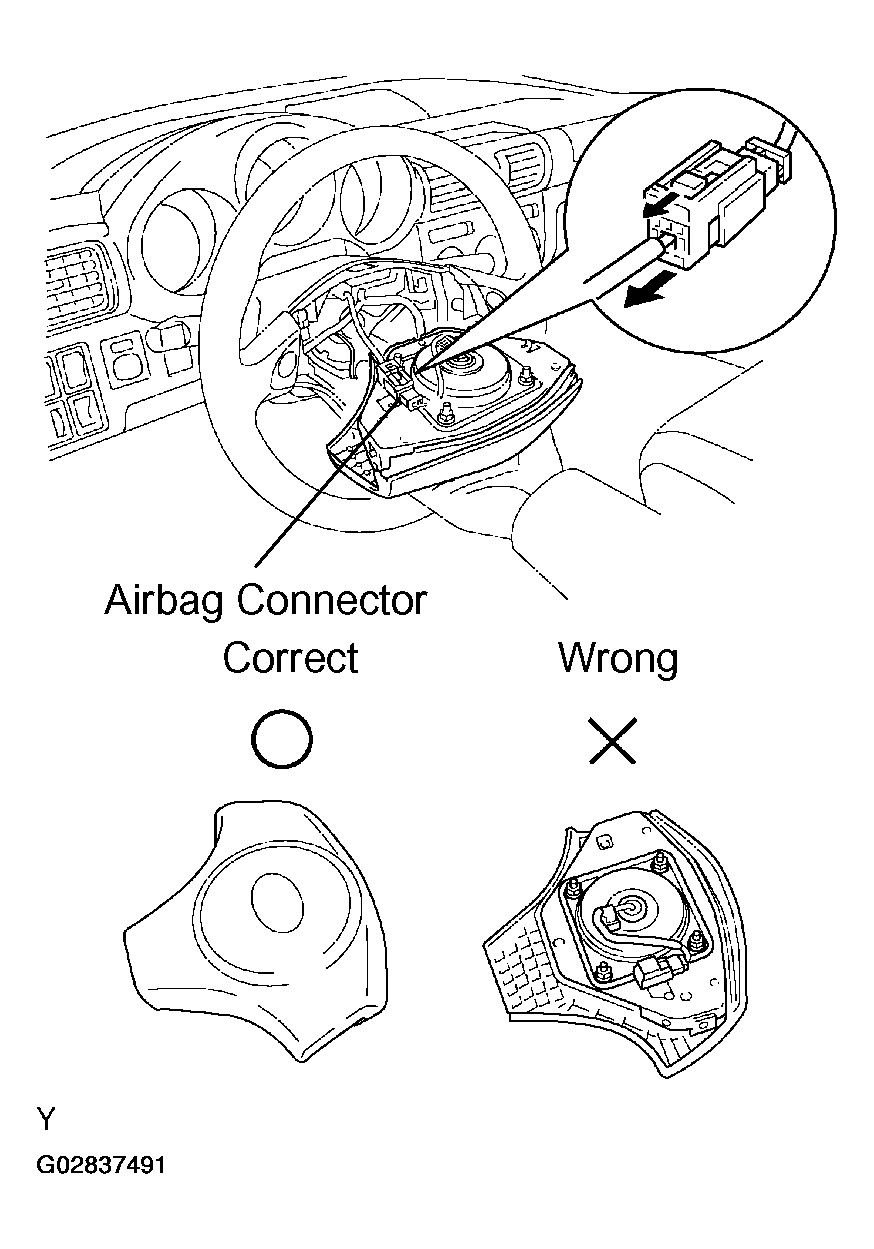

- Pull out the wheel pad from the steering wheel and disconnect the airbag connector.
- REMOVE STEERING WHEEL
- Disconnect the connector.
- Remove the steering wheel set nut.
- Place matchmarks on the steering wheel and main shaft assembly.

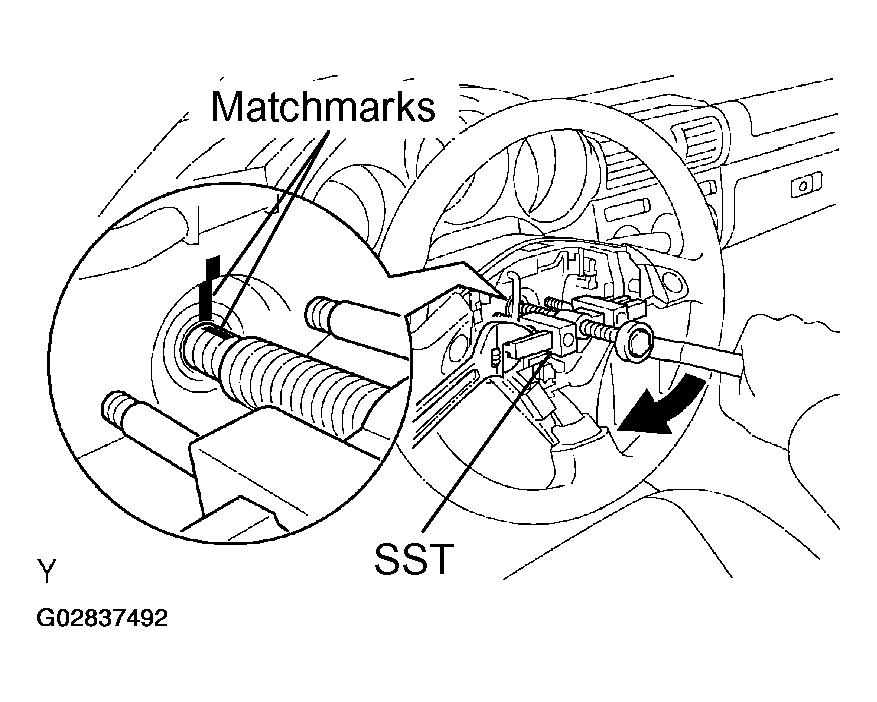

- Using SST, remove the steering wheel.
SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)
- REMOVE INSTRUMENT FINISH PANEL
- Remove the bolt, screw and lower No. 1 instrument finish panel.
- Disconnect the DLC3.
- REMOVE COLUMN LOWER COVER
Remove the 3 screws and column lower cover.
- DISCONNECT COLUMN UPPER COVER
Disconnect the column upper cover from the column tube.
- REMOVE SPIRAL CABLE, LIGHT CONTROL SWITCH AND HEADLIGHT DIMMER SWITCH AND WIPER AND WASHER SWITCH
- Disconnect the 3 connectors from the spiral cable, light control switch and headlight dimmer switch and wiper and washer switch.
- Disconnect the airbag connector from the spiral cable.

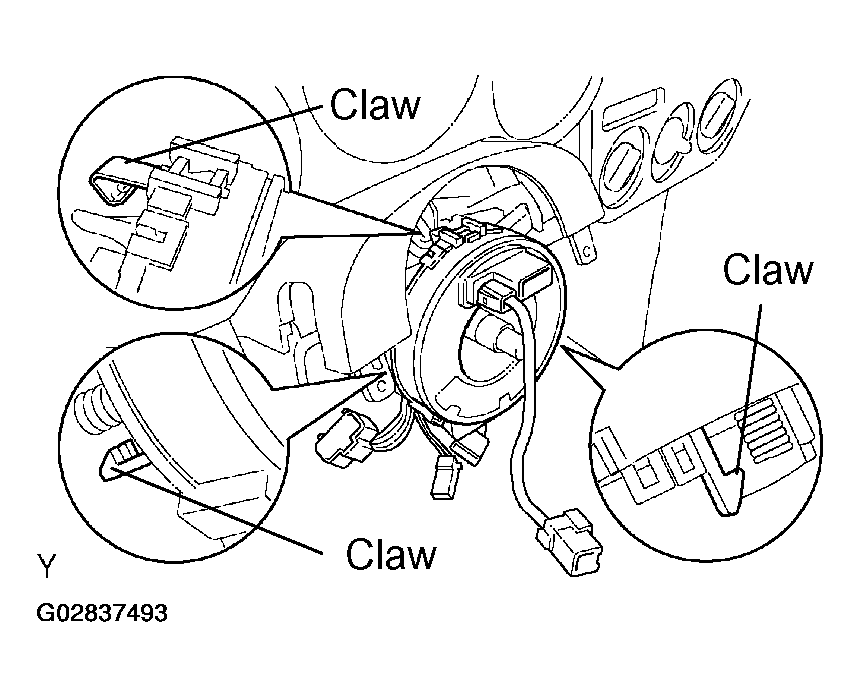

- Release the 3 claws and remove the spiral cable.NOTE: Do not disassemble the spiral cable or apply oil to it.

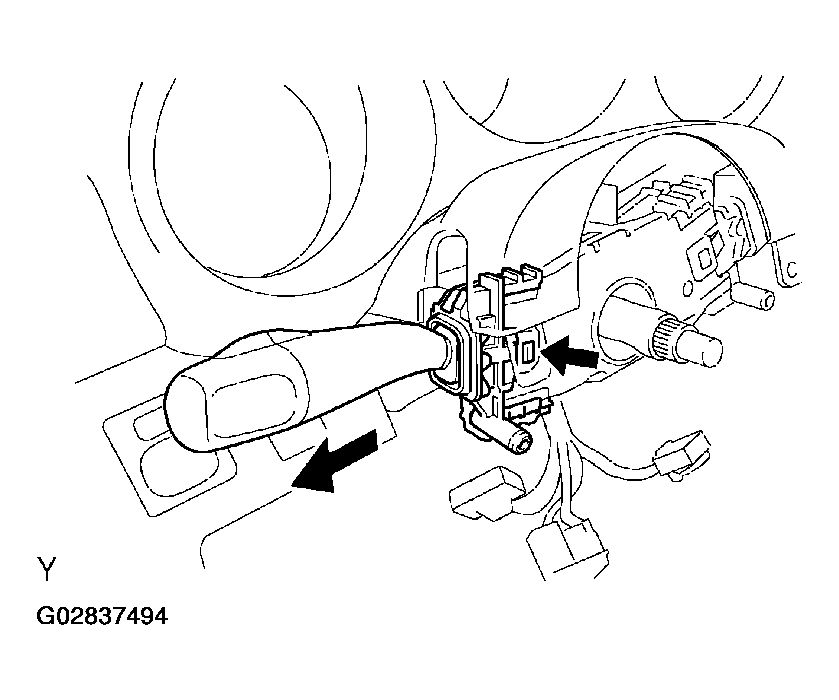

- Push the claw and pull out the light control switch and headlight dimmer switch.
- Employ the same manner described above to the wiper and washer switch.
- DISCONNECT NO. 2 INTERMEDIATE SHAFT ASSEMBLY
- Loosen the clamp and disconnect the No. 2 column hole cover.
- Place matchmarks on the No. 2 intermediate shaft assembly and control valve shaft.

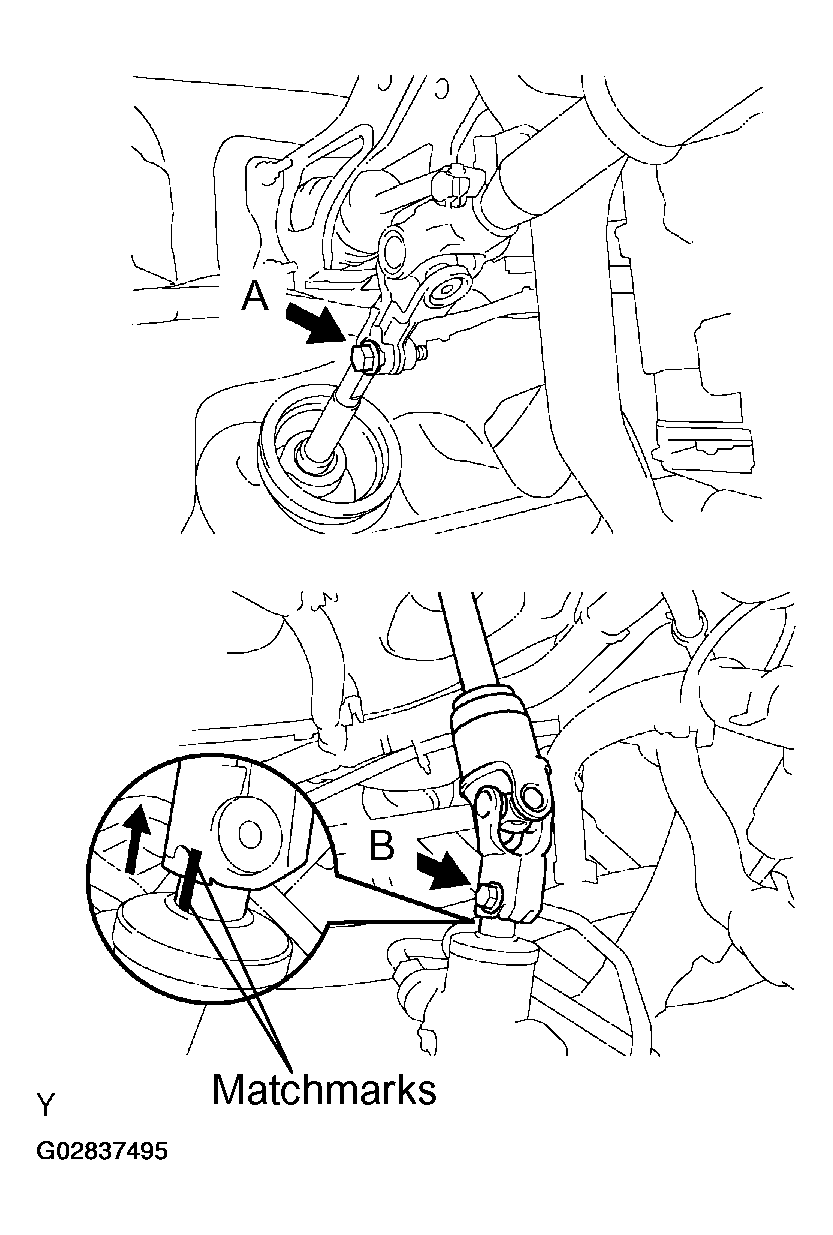

- Loosen the bolt A and remove the bolt B, then disconnect the No. 2 intermediate shaft assembly.
- REMOVE STEERING COLUMN ASSEMBLY
- Disconnect the 3 connectors and 2 wire harness clamps.
- Remove the 2 bolts, nuts and steering column assembly.
- REMOVE COLUMN UPPER COVER
- REMOVE NO. 2 INTERMEDIATE SHAFT ASSEMBLY
- Place matchmarks on the sliding yoke and main shaft assembly.
- Remove the bolt and No. 2 intermediate shaft assembly.
- REMOVE SLIDING YOKE AND NO. 2 COLUMN HOLE COVER
Remove the bolt, sliding yoke, intermediate shaft dust cover and No. 2 column hole cover.
