Blower Unit: Removal

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove console upper panel  .
  2. Remove rear console box  .
  3. Remove front console box  .
  4. Remove lower left side finish panel  .
  5. Remove glove compartment door  .
  6. Remove lower No. 2 finish panel  .
  7. Remove lower cover  .
  8. Remove cooling unit. See  REMOVAL  .
  9. Remove blower unit  :
    1. Disconnect the connector from the blower motor.
    2. Disconnect the connector from the air inlet servomotor.
    3. Remove a nut, bolt and blower unit. See Fig 1.

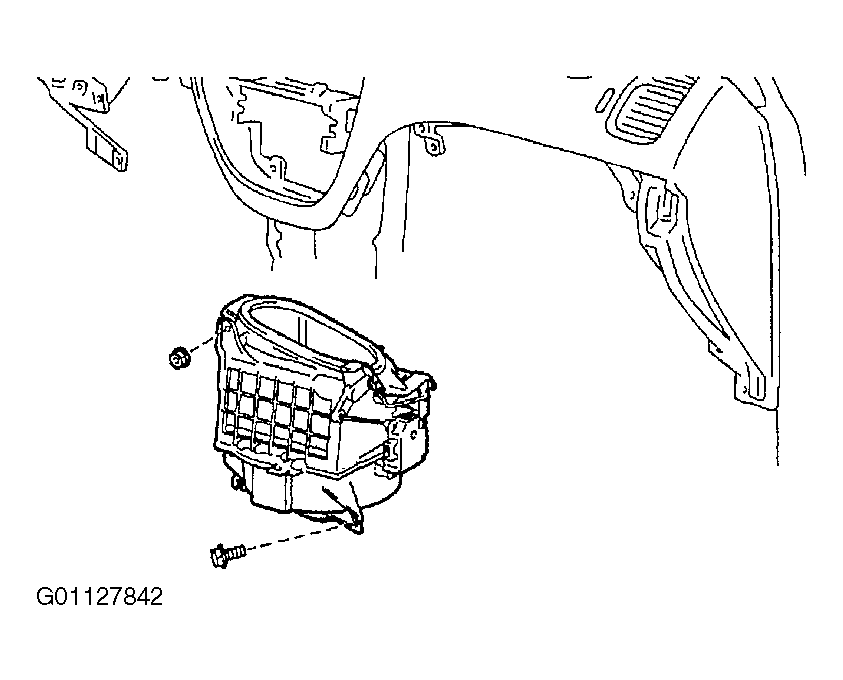

    Fig 1: Removing Blower Unit
    G01127842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
