Cooling Unit: Removal

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE:

    At the time of installation, please refer to the following items.

    • Evacuate air from refrigeration system.
    • Charge system with refrigerant and inspect for leakage of refrigerant.

  1. Discharge refrigerant from refrigeration system  .

    Specified amount:

    • Single A/C: 750 +/- 50 g (26.45 +/- 1.76 oz.)  .
    • Dual A/C: 1050 +/- 50 g (37.03 +/- 1.76 oz.)  .
  2. Disconnect liquid and suction tube  .
    1. Using SST, remove the 2 piping clamps. See Fig 1.

      SST 09870-00015 (Suction tube)

      09870-00025 (Liquid tube)

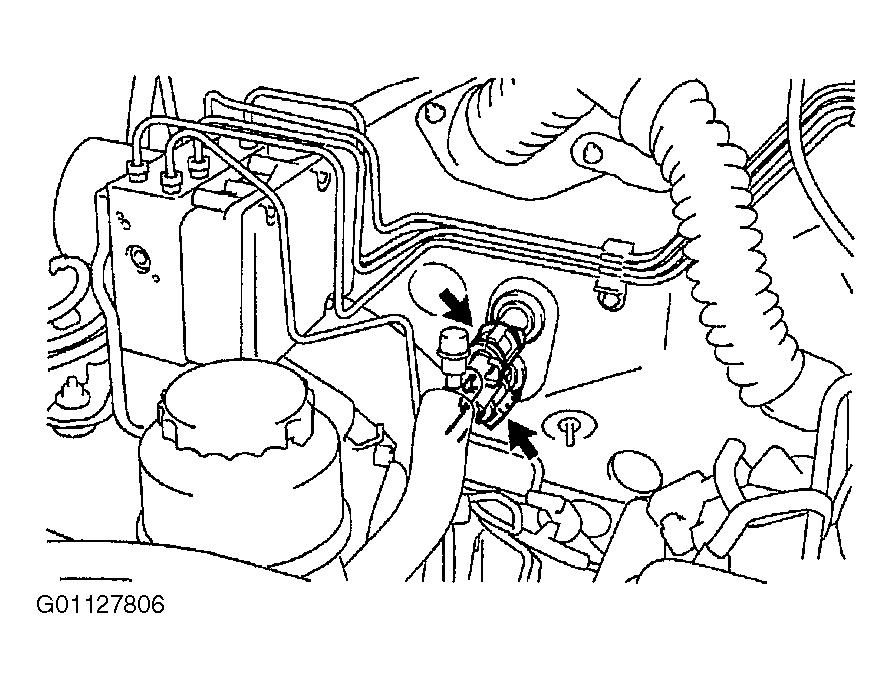

      Fig 1: Locating piping clamps
      G01127806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        WARNING: Confirm the direction of the piping clamp claw and SST using the illustration showing on the caution label.
        Fig 2: Installing SST
        G01127807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Insert SST to piping clamp. See Fig 2.
        2. CAUTION: Be careful not to deform the tubes, when pushing SST.
      2. Push down SST and release the clamp lock. See Fig 3.
      3. Pull SST slightly and push the release lever, then remove the piping clamp with SST. See Fig 3.
      4. Remove the piping clamp from SST.
    2. Disconnect the both tubes.

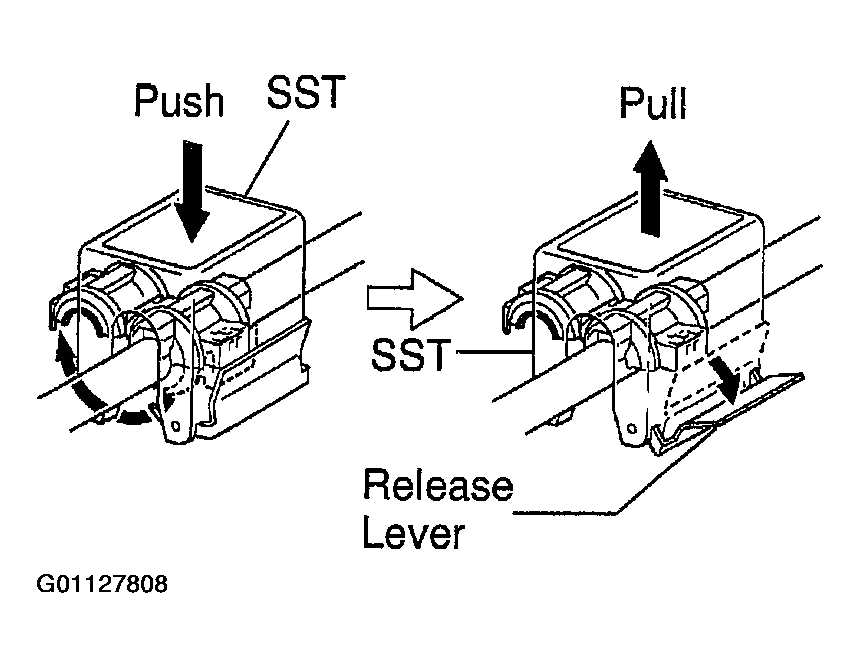

    Fig 3: Releasing Clamp & Lever Using SST
    G01127808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAUTION:
    • Do not use tools like screwdriver to remove the tube. See Fig 4.
    • Cap the open fittings immediately to keep moisture or dirt out of the system.
    Fig 4: Identifying Tube Precaution
    G01127809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: At the time of reassembly, please refer to the following item.
    • Lubricate 4 new O-rings with compressor oil and install them to the tubes. See Fig 5.
    • After connection, check the fitting for claw of the piping clamp.
  3. Remove console upper panel  .
  4. Remove rear console box  .
  5. Remove front console box  .
  6. Remove glove compartment parts  .
  7. Remove lower No. 2 finish panel  .
  8. Remove lower left side finish panel  .
  9. Remove  lower cover  .
  10. Remove No. 4 heater to register duct  .
    Fig 5: Identifying Correct Installation Of Tubes
    G01127810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE COOLING UNIT  :
    1. Disconnect the connectors.
    2. Remove the 3 screws and a bolt, then the cooling unit. See Fig 6.

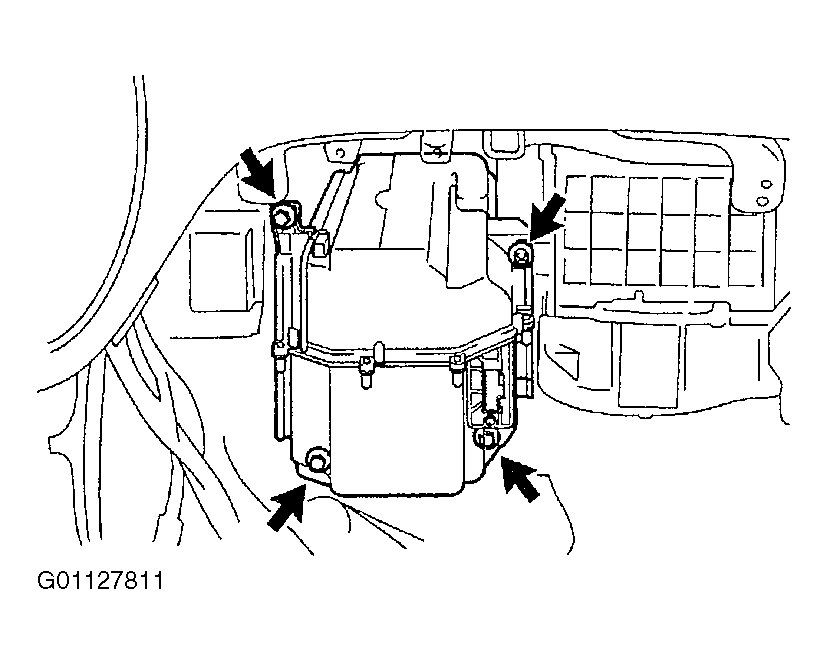

    Fig 6: Removing Cooling Unit
    G01127811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
