Back Window Glass: Removal

Remove rear seat . See REMOVAL .
Remove high-mounted stop light .
1. Push on the both sides of the cover to release the claws by your hand and remove the cover.

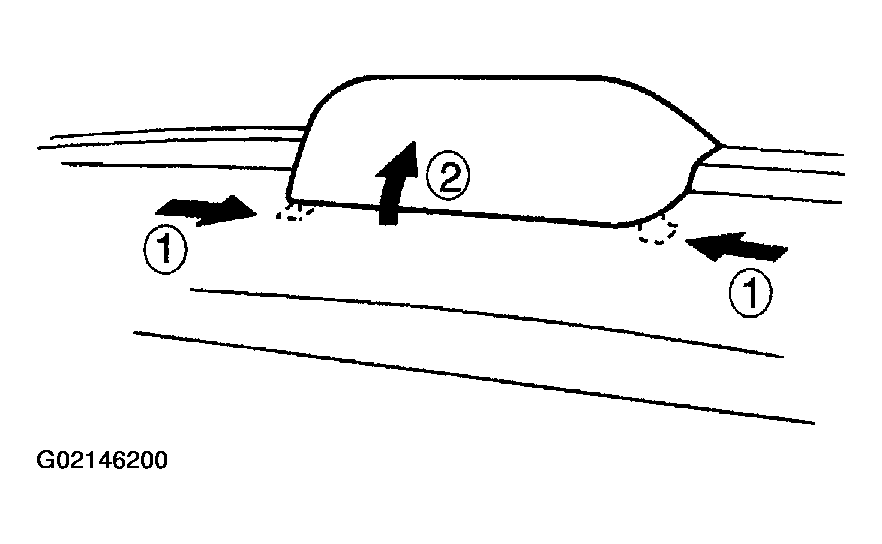

  Fig 1: Locating High-Mounted Stop Light Clips & Identifying Removal Direction
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the stop light, then disconnect the connector.
Remove roof side inner garnish :
1. Using a screwdriver, pry loose and remove the garnish.
  NOTE: Tape the screwdriver tip before use.

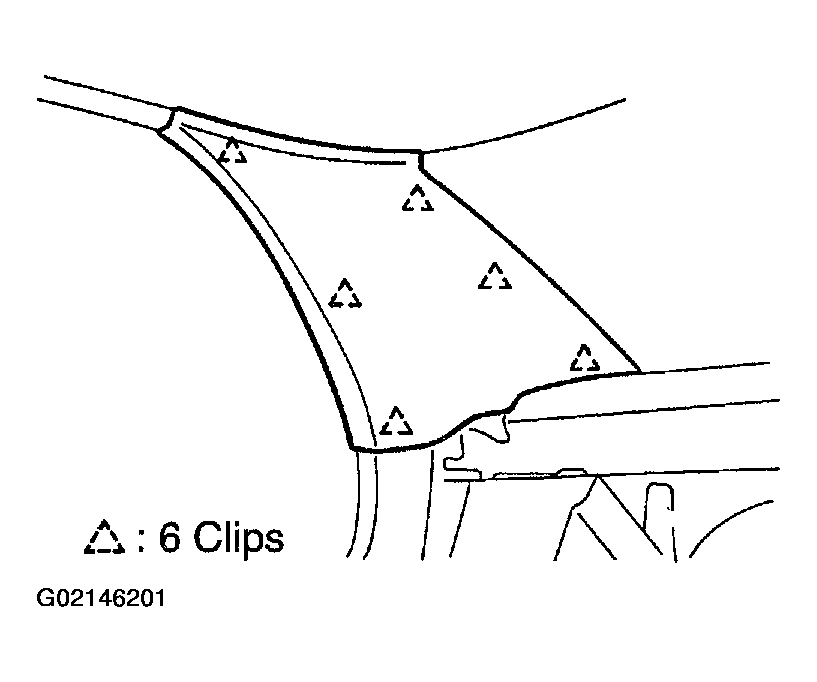

  Fig 2: Locating Roof Side Inner Garnish Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Employ the same manner described above to the other side.
Remove tether anchor :
1. Using a screwdriver, remove the CRS tether anchor cover.
  NOTE: Tape the screwdriver tip before use.
2. Remove the tether anchor by loosening the bolt.
3. Employ the same manner described above to the other sides.
Remove package tray trip .
Disconnect defogger wire connectors .

NOTE: Do not damage the body with the knife.

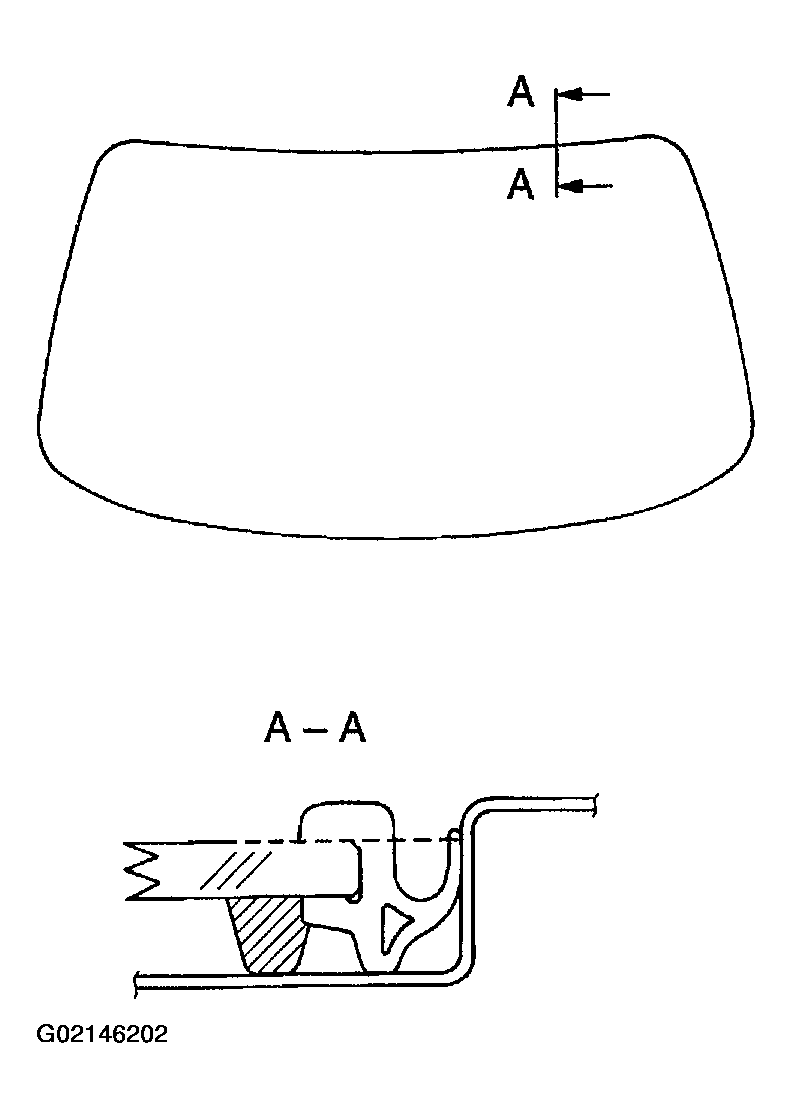

Fig 3: Identifying Back Window Moulding Cut Line

Remove back window moulding .
Using a knife, cut off the moulding.
Remove back window glass :
Remove the glass in the same way as windshield. See REMOVAL .
