Air Conditioning: Condenser: Removal

  1. Discharge Refrigerant From Refrigeration System
    NOTE:
    1. Evacuate air from refrigeration system.
    2. Charge system with refrigerant and inspect for leakage of refrigerant.
      1. Specified amount: 650 +/- 50 g (22.92 +/- 1.76 oz.)
  2. Remove Radiator Grill
  3. Remove Horn
  4. Remove Hood Lock
  5. Remove Center Brace
  6. Remove Receiver And Holder (See  REMOVAL  )

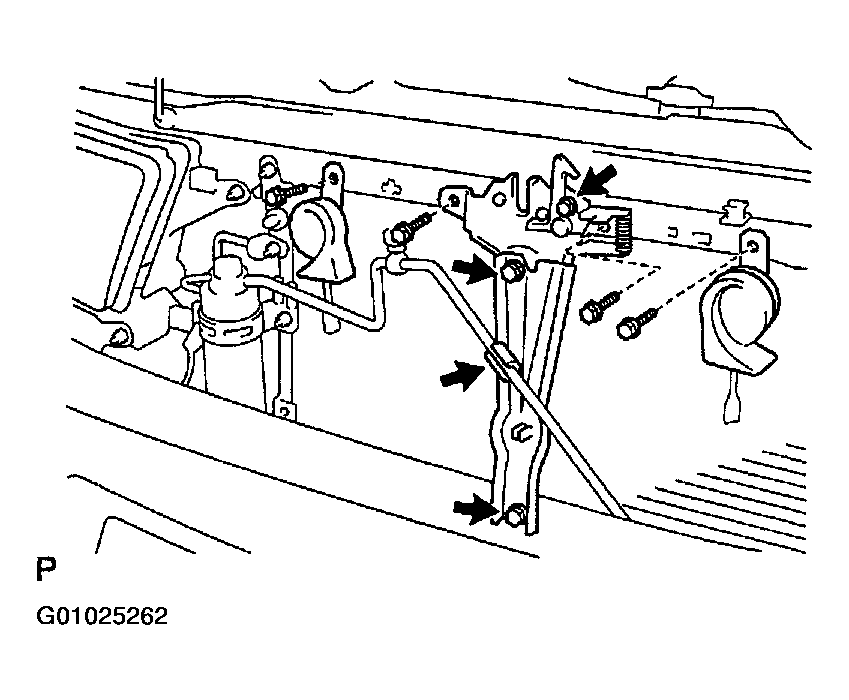

    Fig 1: Locating Screws & Bolts To Remove
    G01025262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. Disconnect Liquid Tube And Discharge Hose

    Remove the two bolts and disconnect both tube and hose.

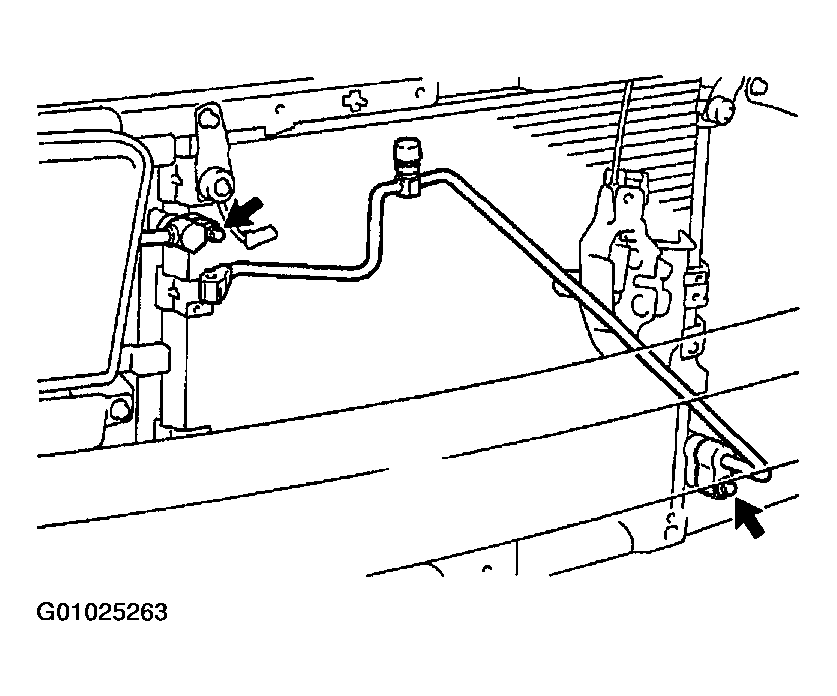

    Fig 2: Locating Bolts To Remove
    G01025263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)
    NOTE:
    1. Cap open the fittings immediately to keep moisture or dirt out of the system.
    2. Lubricate 2 new O-rings with compressor oil and install them to the tubes.
  8. Remove Condenser

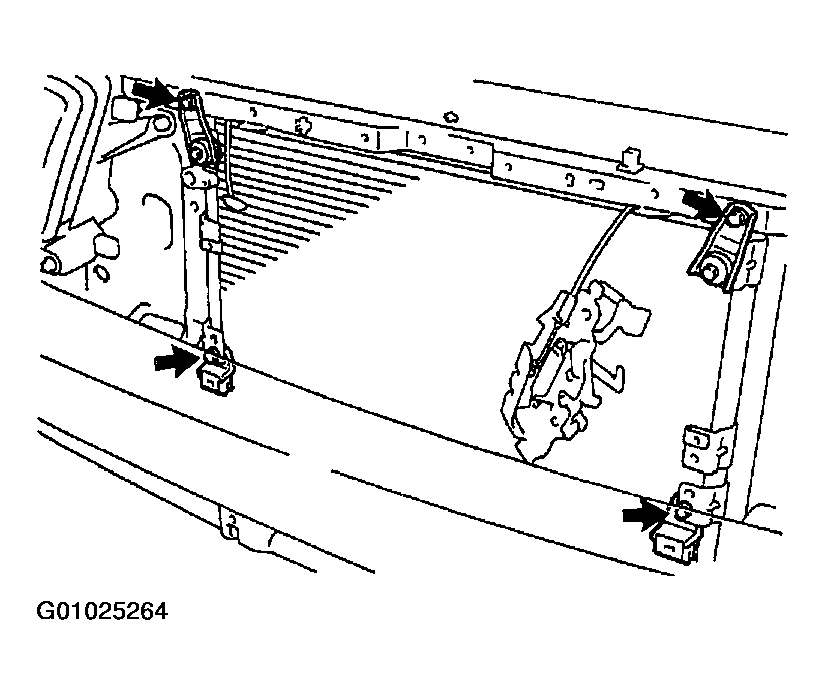

      Fig 3: Locating Bolts For Removal Of Condenser
      G01025264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 bolts and 2 lower brackets.
    2. Remove the 4 bolts and 2 upper brackets.
    3. Pull the condenser forward and pull it upward.
    NOTE: If condenser is replaced, add compressor oil to the compressor.
    1. Add 40 - 50 cc (1.4 - 1.7 fl.oz.)
    2. Compressor oil: ND-OIL 8 or equivalent
