Diagnosis & Repair

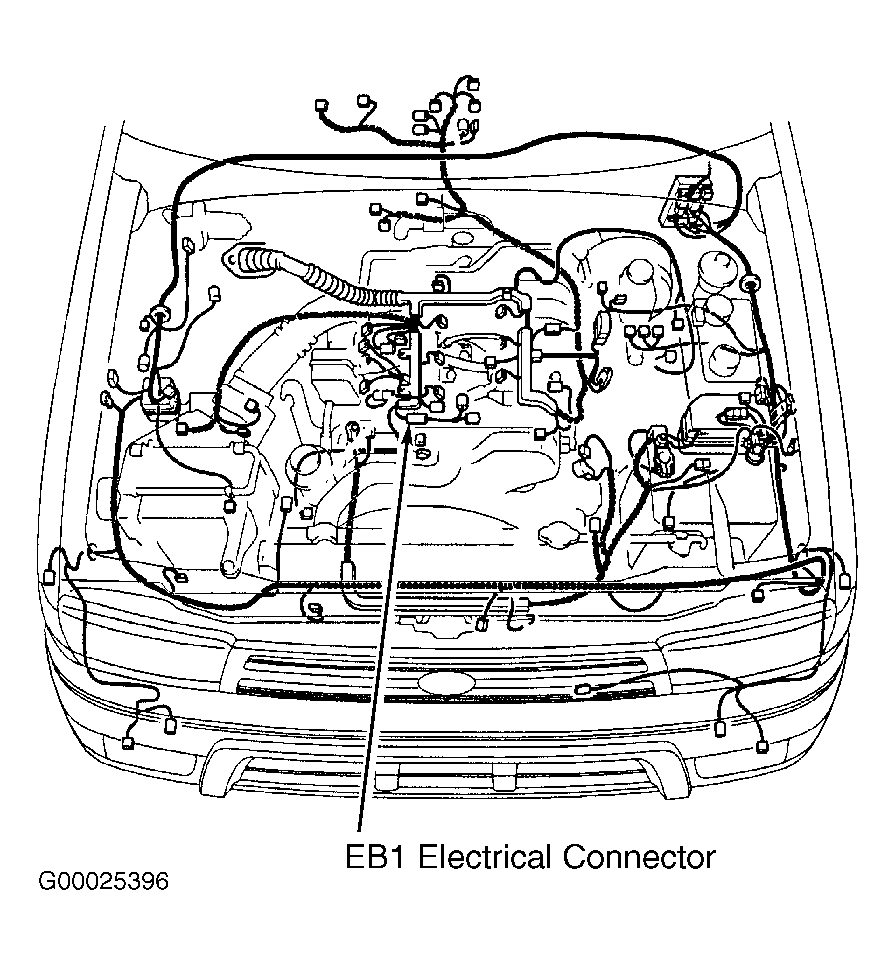

  1. Connect Toyota hand-held tester or scan tool to Data Link Connector (DLC) No. 3. See Figure. Disconnect EB1 electrical connector. See Figure. EB1 electrical connector is an in-line Dark Gray 3-pin electrical connector located near the cylinder head.
  2. Note wire terminal identification in male side of EB1 electrical connector. See Figure. Remove wires from terminals No. 1 (Black wire) and 2 (Gray wire) in male side of EB1 electrical connector. Reverse wire location for terminals No. 1 and 2 and reinstall wires in male side of EB1 electrical connector. Reconnect EB1 electrical connector.
  3. Turn ignition on and then turn hand-held tester or scan tool on. Using Toyota hand-held tester or scan tool, clear DTCs from ECM. Start engine and warm engine to normal operating temperature. Suddenly accelerate engine to 4000 RPM for 3 times. Recheck for DTCs. If DTC P0330 still exists and DTC did not change from original DTC of P0330, go to next step. If DTC changes from original DTC of P0330 to P0325, go to step  5.
  4. Check for open and short in wiring harness and electrical connectors between EB1 electrical connector and ECM for knock sensor No. 2. See WIRING DIAGRAMS article. ECM is located behind glove box. See Figure. If wiring harness or electrical connector is defective, repair as necessary. If wiring harness and electrical connectors are okay, replace ECM.
  5. Check for open and short in wiring harness and electrical connectors between EB1 electrical connector and knock sensor No. 2. See WIRING DIAGRAMS article. Knock sensor No. 2 is located on cylinder block, just below cylinder head. See Figure. If wiring harness or electrical connector is defective, repair as necessary. If wiring harness and electrical connectors are okay, replace knock sensor No. 2. See KNOCK SENSOR under ENGINE SENSORS & SWITCHES in REMOVAL, OVERHAUL & INSTALLATION - V6 & V8 article.
