Test No. 6
NOTE:
Test procedure is based on assumption that taillights operate properly using headlight switch, but will not operate with anti-theft system. Taillight relay may also be referred to as taillight control relay.
- Check Voltage At Terminal No. 11 At Anti-Theft System Electronic Control Unit (ECU)

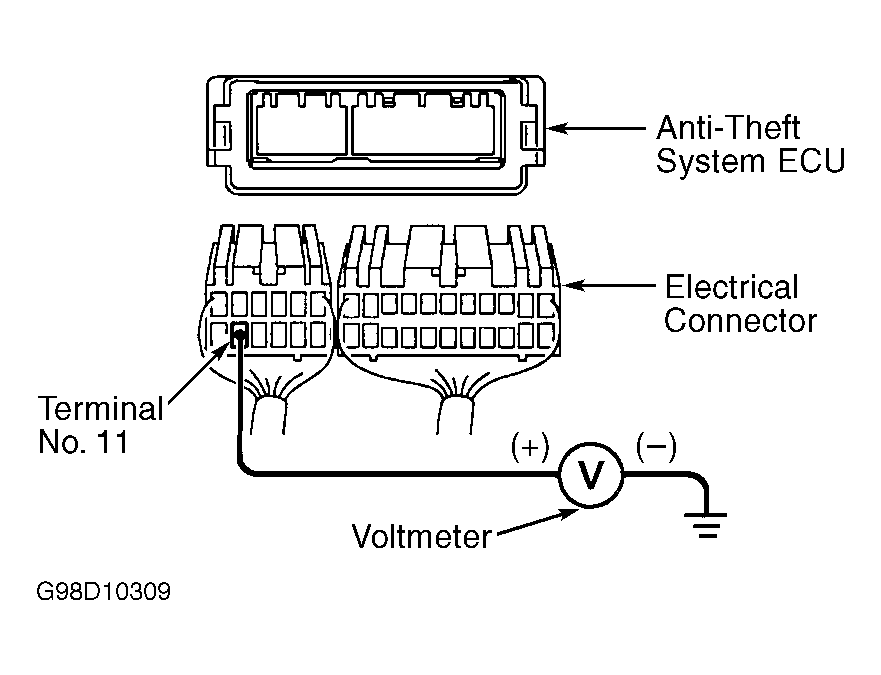

Remove glove compartment door for access to anti-theft system ECU. Anti-theft system ECU is located near passenger's side of instrument panel, behind glove box, just above kick panel and uses a 12-pin electrical connector and a 22-pin electrical connector. See Figure. - Ensure ignition is off. Disconnect electrical connectors at anti-theft system ECU. Using voltmeter, check voltage between ground and terminal No. 11 (Green/Red wire). See Fig 1. This is the Green/Red wire between taillight relay and anti-theft system ECU. See WIRING DIAGRAMS .
- Voltage should be 10-14 volts. If voltage is not within specification, go to next step. If voltage is within specification, replace anti-theft system ECU. See ANTI-THEFT SYSTEM ECU under REMOVAL & INSTALLATION.
- Check for defective connectors and Green/Red wire between anti-theft system ECU and taillight relay. See WIRING DIAGRAMS . Taillight relay is located in instrument panel fuse/relay box at driver's side of instrument panel. See Figure. Repair connectors and wiring as necessary. If necessary to check taillight relay, see TAILLIGHT RELAY under COMPONENT TESTS.
