Taillight Relay
NOTE:
Taillight relay may also be referred to as taillight control relay.
- Remove taillight relay from instrument panel fuse/relay box. Instrument panel fuse/relay box is located at driver's side of instrument panel. See Figure.

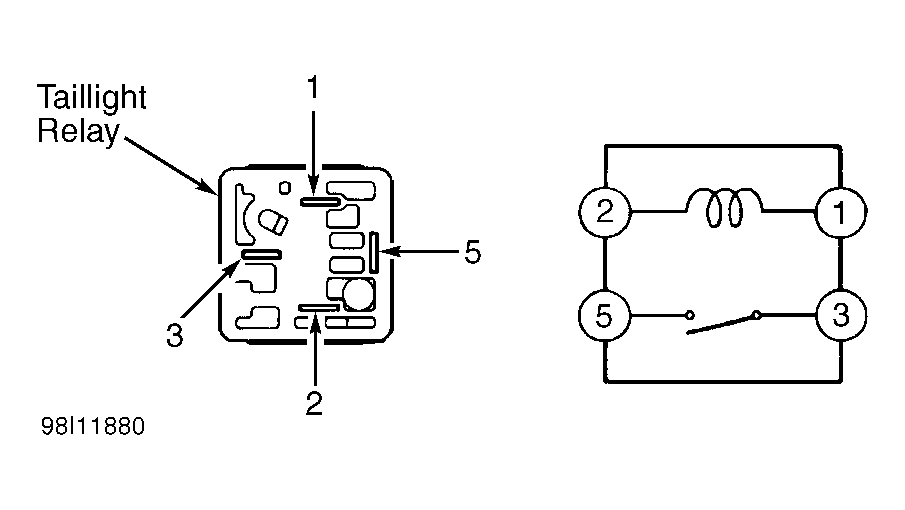

- Note terminal identification on taillight relay. See Fig 1. Using ohmmeter, check that continuity exists between terminals No. 1 and 2 on taillight relay. Apply battery voltage and ground to terminals No. 1 and 2 on taillight relay. Using ohmmeter, check that continuity exists between terminals No. 3 and 5 on taillight relay. Replace taillight relay if defective.
