Transfer Oil Temperature Sensor Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.

Hoist vehicle.
Drain transfer oil, see TRANSFER OIL CHANGE .
Disconnect transfer oil temperature sensor connector (1), and remove transfer oil temperature sensor (2).

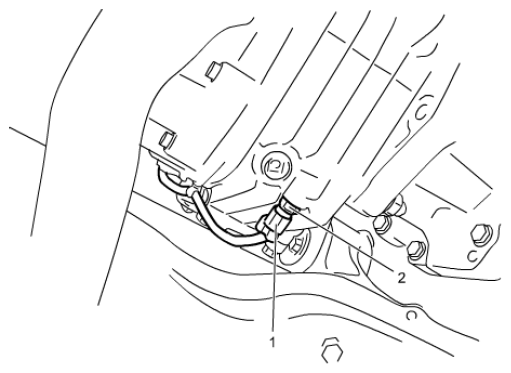

Fig 1: Identifying Transfer Oil Temperature Sensor Connector And Transfer Oil Temperature Sensor
Courtesy of SUZUKI OF AMERICA CORP.
