Transfer Oil Change
WARNING: This page is about a different variant/trim than selected.
- Hoist vehicle.
- Remove right and left engine under covers, and check oil leakage. If leakage exists, correct it.

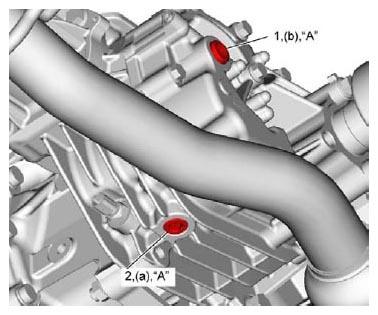

- Remove transfer oil level/filler plug (1).
- Remove transfer oil drain plug (2), and drain oil.
- Apply sealant to thread of transfer oil drain plug, and tighten it to specified torque.
"A": Sealant 99000-31260 (SUZUKI Bond No. 1217G)
Tightening torque
Transfer oil drain plug (a): 23 N.m (2.3 kg-m, 17.0 lbf-ft)
- Pour new specified oil up to oil level/filler plug hole (3).NOTE: It is highly recommended to use API GL-5 80W-90 gear oil.
Transfer oil specification

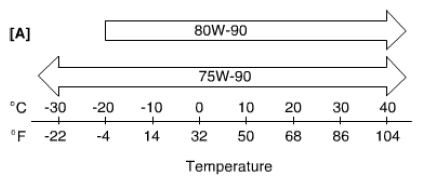

: API GL-5 (For SAE classification, refer to viscosity chart Fig 2 in figure.)
Transfer oil capacity
Reference: 0.9 liters (1.90/1.58 US/lmp. pt)
- Apply sealant to thread of transfer oil level/filler plug, and then tighten it to specified torque.
"A": Sealant 99000-31260 (SUZUKI Bond No. 1217G)
Tightening torque
Transfer oil level/filler plug (b): 23 N.m (2.3 kg-m, 17.0 lbf-ft)
