Section 1 (Continuously Variable Transaxle (CVT))
>>
Schematic and Routing Diagram
>>
TCM Circuit Diagram
TCM Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

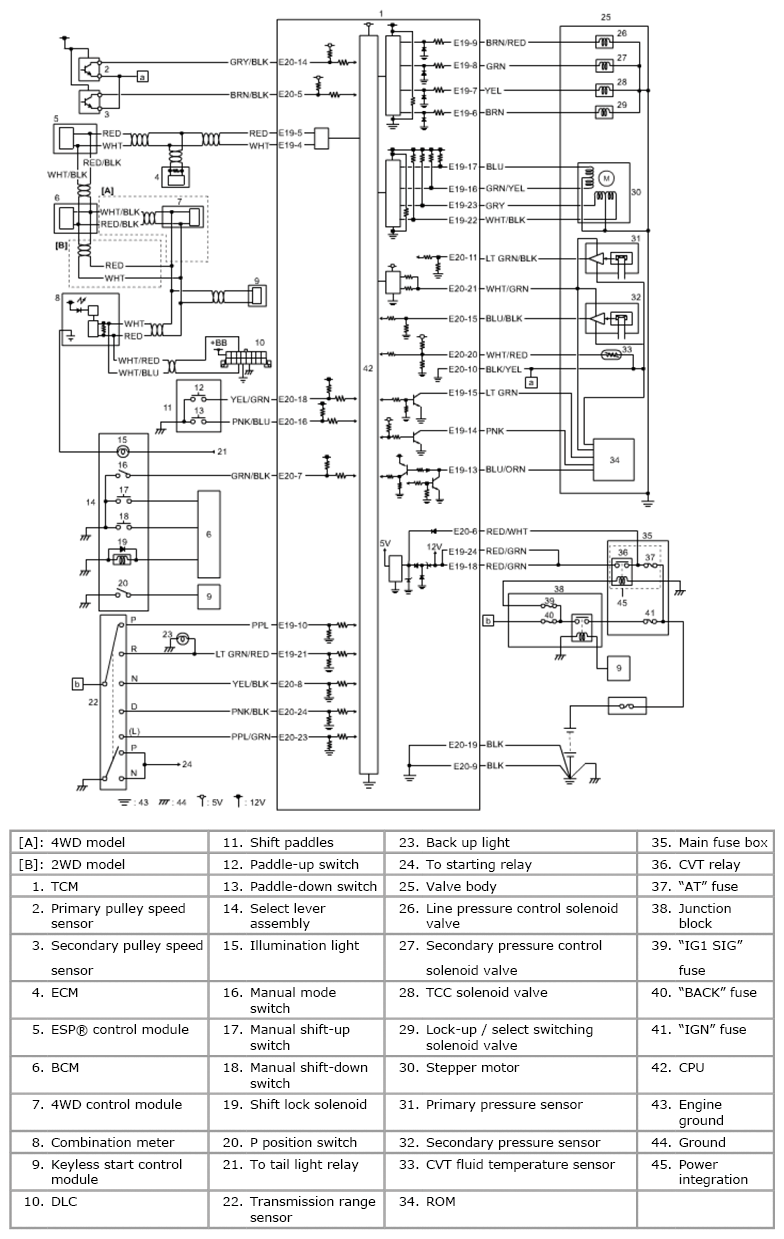

Fig 1: TCM Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
