Valve Body Assembly Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Install solenoid harness to transmission case, if removed.

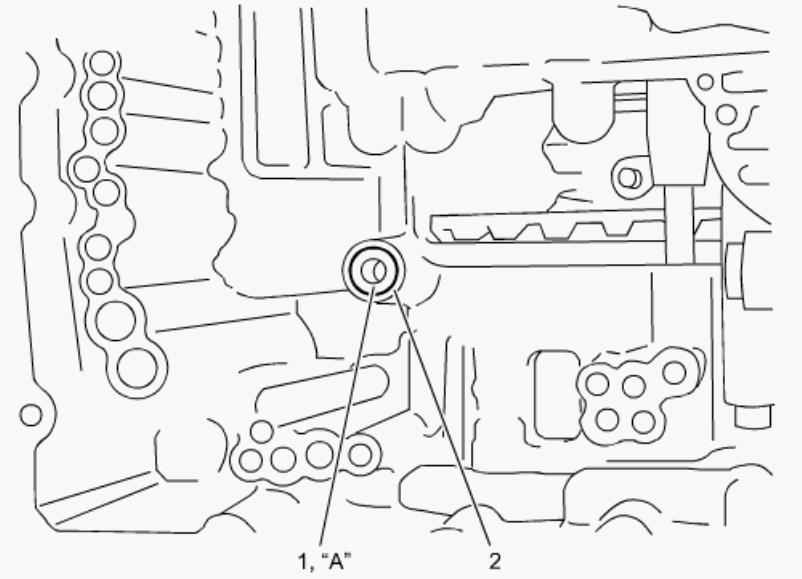

Apply CVT fluid to new lip seal (1) and put it onto transmission case.

Fig 1: Identifying CVT Fluid Lip Seal
Courtesy of SUZUKI OF AMERICA CORP.
Install valve body assembly according to the following procedure.

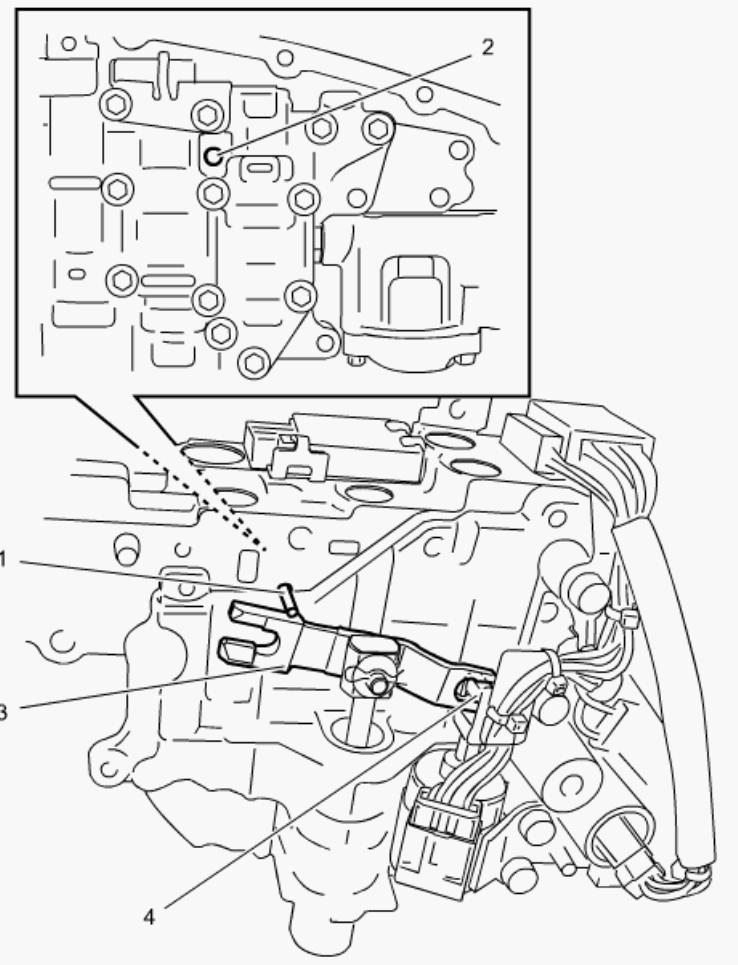

1. When installing new valve body assembly, insert a pin (1) (3 mm dia.) through linkage stopper hole (2) to retain pulley ratio linkage (3).
2. Make sure that linkage lever end is engaged with stepping motor (4) as illustrated.

  Fig 2: Identifying Pin, Stopper Hole, Pulley Ratio Linkage & Stepping Motor
  Courtesy of SUZUKI OF AMERICA CORP.

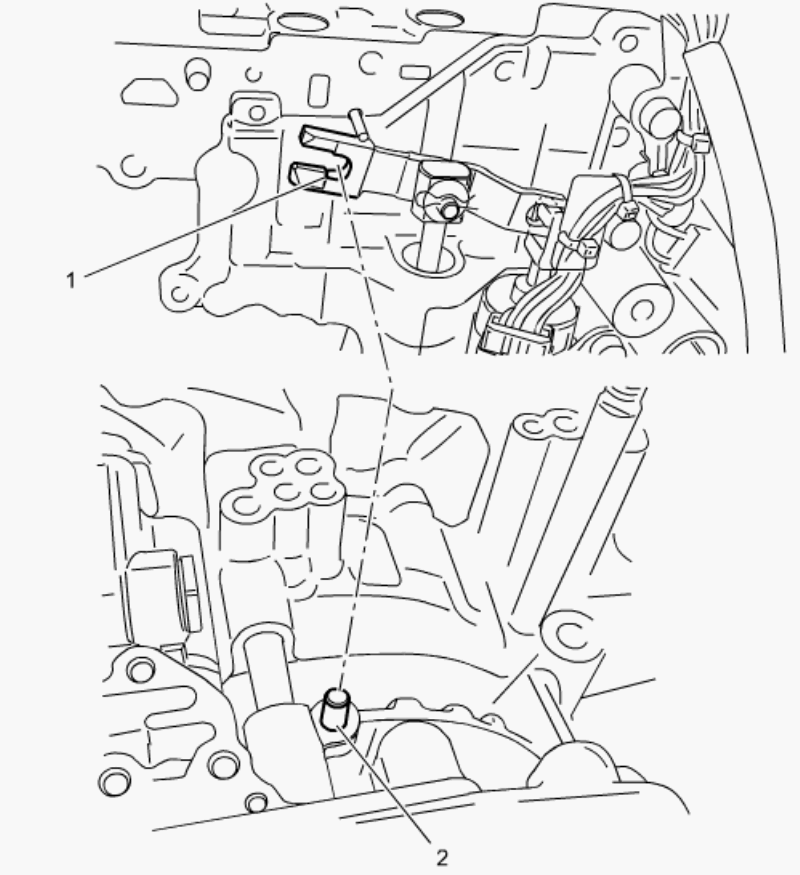

3. Install valve body assembly to transmission case engaging pulley ratio linkage (1) with primary pulley shift shaft knob (2).

  Fig 3: Identifying Pulley Ratio Linkage & Primary Pulley Shift Shaft Knob
  Courtesy of SUZUKI OF AMERICA CORP.
4. Remove pin installed in step a).

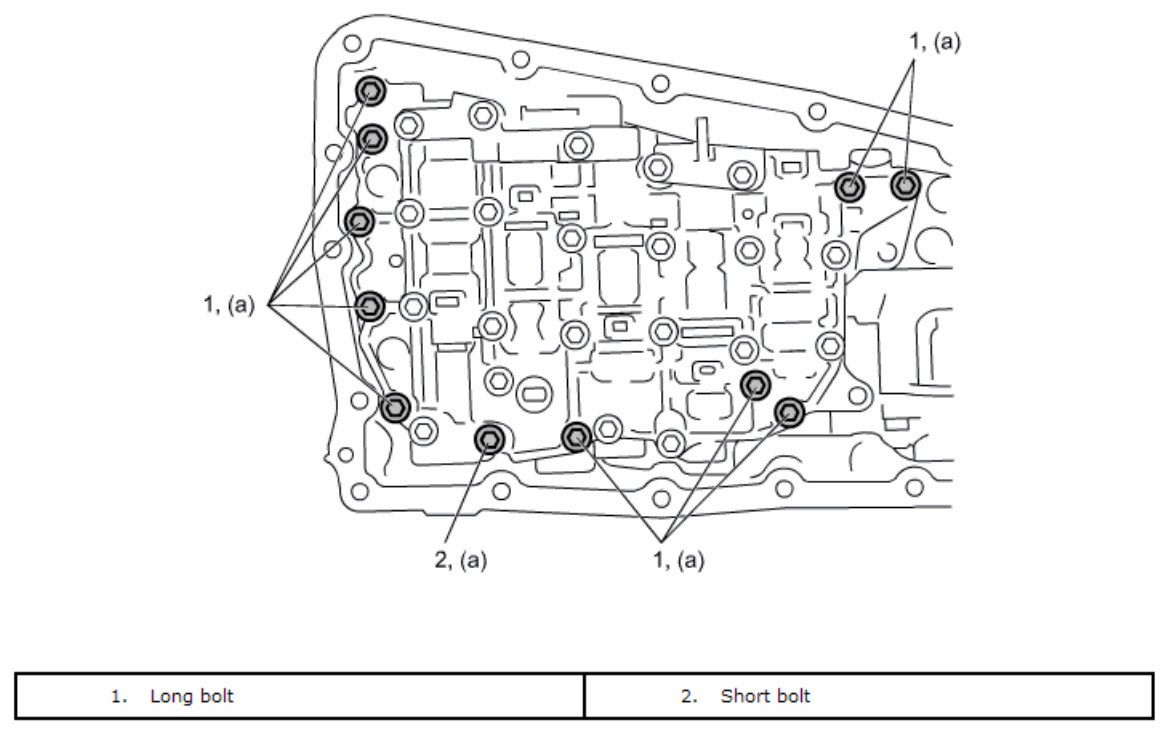

5. Install valve body bolts noting the length and tighten them to specified torque.
  Tightening torque

  Valve body bolt (a): 7.9 N.m (0.81 kgf-m, 6.0 lbf-ft)

  Fig 4: Identifying Valve Body Bolts
  Courtesy of SUZUKI OF AMERICA CORP.

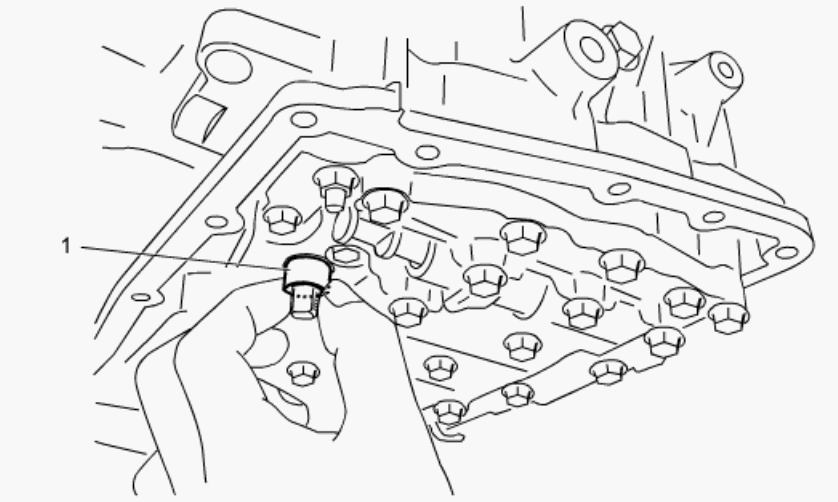

Install spacer (1) to valve body.

Fig 5: Identifying Valve Body Spacer
Courtesy of SUZUKI OF AMERICA CORP.

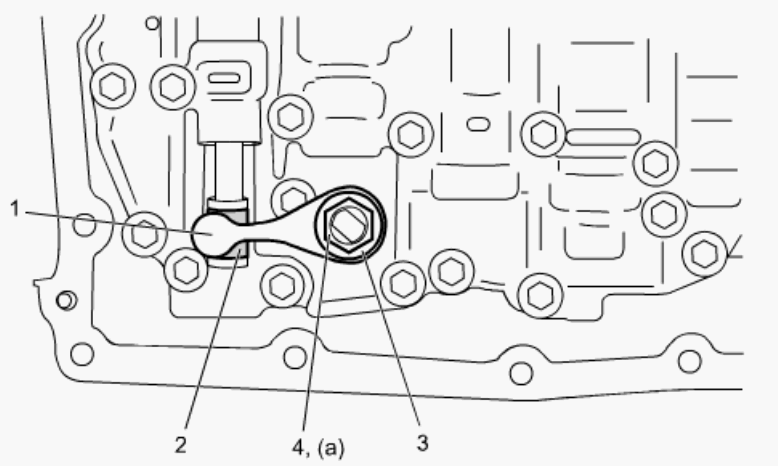

Install manual valve lever (1) to manual valve operating shaft engaging the lever with manual valve spool (2).
Install spring washer (3) and nut (4), then tighten nut to specified torque.
Tightening torque

Manual valve lever nut (a): 22 N.m (2.2 kgf-m, 16.5 lbf-ft)

Fig 6: Identifying Manual Valve Lever, Spool, Spring Washer & Nut
Courtesy of SUZUKI OF AMERICA CORP.

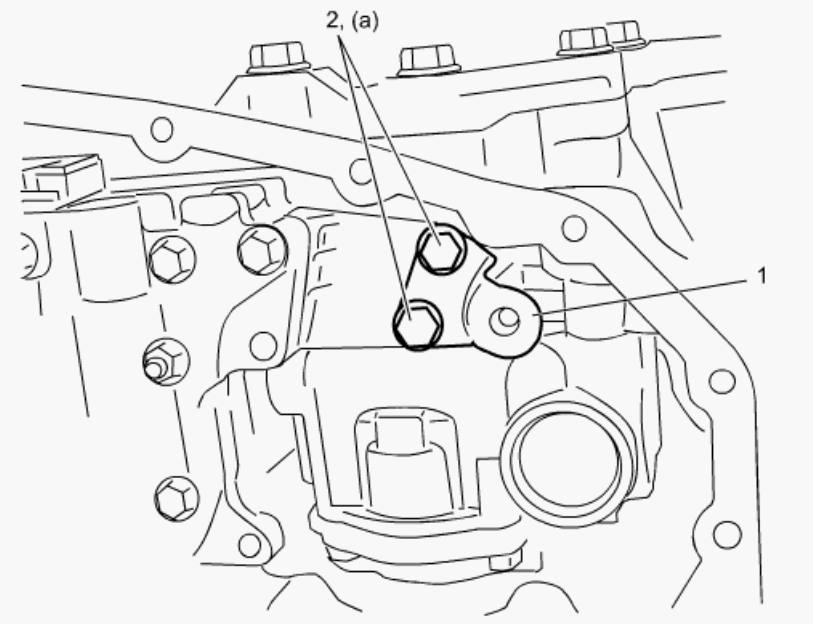

Install oil strainer bracket (1) to valve body and tighten oil strainer bracket bolts (2) to specified torque.
Tightening torque

Oil strainer bracket bolt (a): 7.9 N.m (0.81 kgf-m, 6.0 lbf-ft)

Fig 7: Identifying Oil Strainer Bracket & Bolts
Courtesy of SUZUKI OF AMERICA CORP.

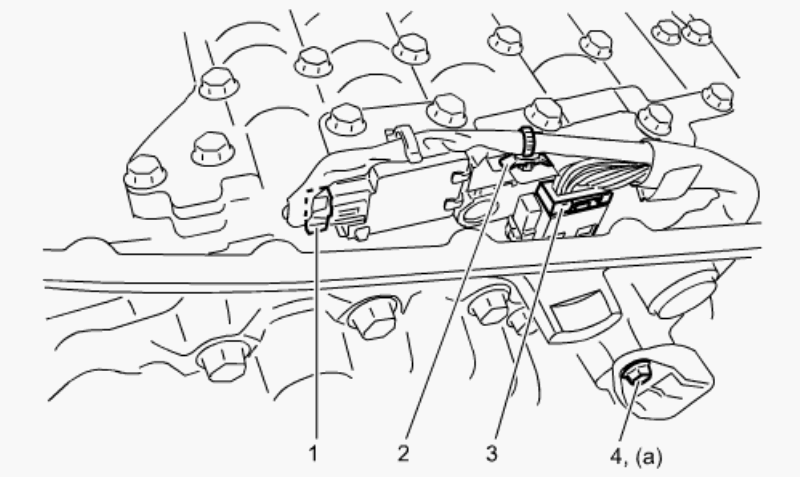

Tighten solenoid harness bolt (4) to specified torque, if removed.
Tightening torque

Solenoid harness bolt (a): 7.0 N.m (0.71 kgf-m, 5.5 lbf-ft)
Connect ROM connector (1), solenoid connector (3) and fix wire harness with clamp (2).

Fig 8: Identifying ROM Connector, Solenoid Connector & Clamp
Courtesy of SUZUKI OF AMERICA CORP.
Install oil pan and oil strainer on transmission case. See CVT OIL PAN AND OIL STRAINER REMOVAL AND INSTALLATION .
Replenish CVT with fluid. See CVT FLUID CHECK .
Check CVT fluid level. See CVT FLUID CHANGE .
Check for CVT fluid leakage after warming up CVT. See CVT FLUID CHECK .
Check for CVT fluid leakage after warming up CVT. See TCM INITIALIZATION AND LEARNING CONTROL .
