Shift Paddle Switch Inspection
WARNING: This page is about a different variant/trim than selected.
Reference: SHIFT PADDLE SWITCH REMOVAL AND INSTALLATION

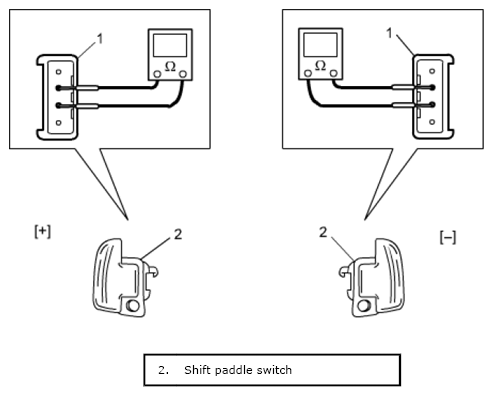

Check for continuity between terminals of shift paddle switch connectors (1). Replace steering wheel assembly if check result is not as specified.
Shift paddle switch specification
CONTINUITY CHART
| Condition | Specification |
|---|---|
| Pulled | Continuity |
| Released | No continuity |
