Section 1 (Continuously Variable Transaxle (CVT))
>>
Repair Instructions
>>
Select Cable Components
Select Cable Components
WARNING:
This page is about a different variant/trim than selected.

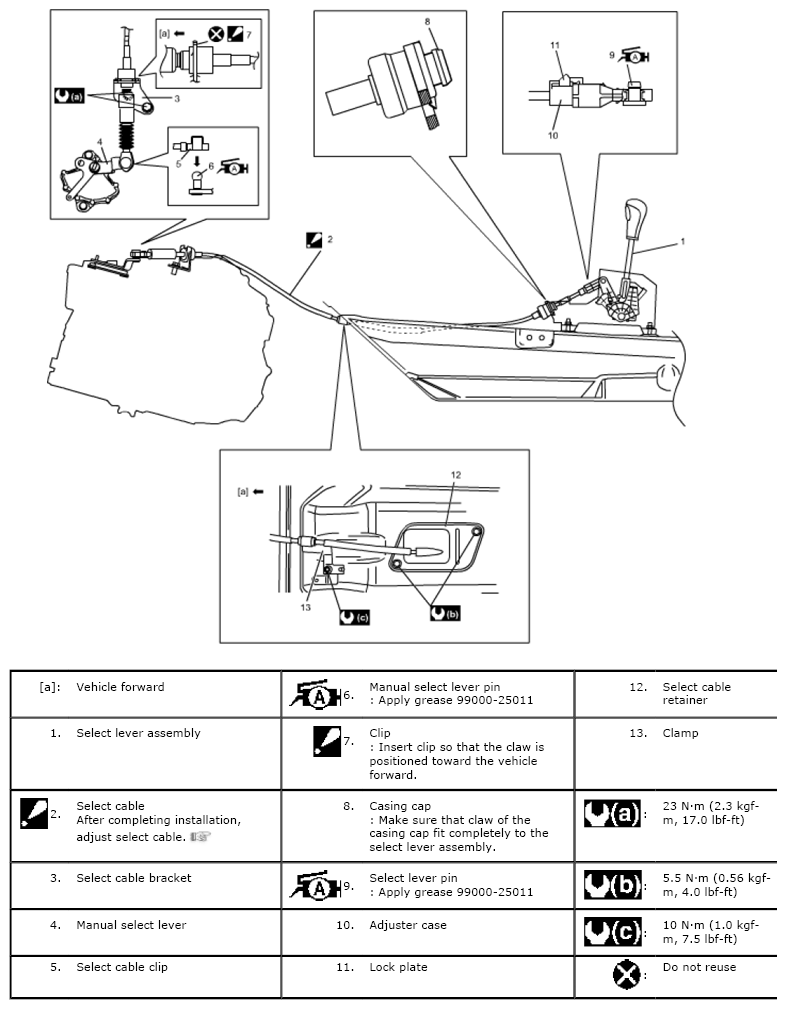

Fig 1: Select Lever Assembly With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
