Section 1 (Continuously Variable Transaxle (CVT))
>>
Repair Instructions
>>
CVT Assembly Components
CVT Assembly Components
WARNING:
This page is about a different variant/trim than selected.

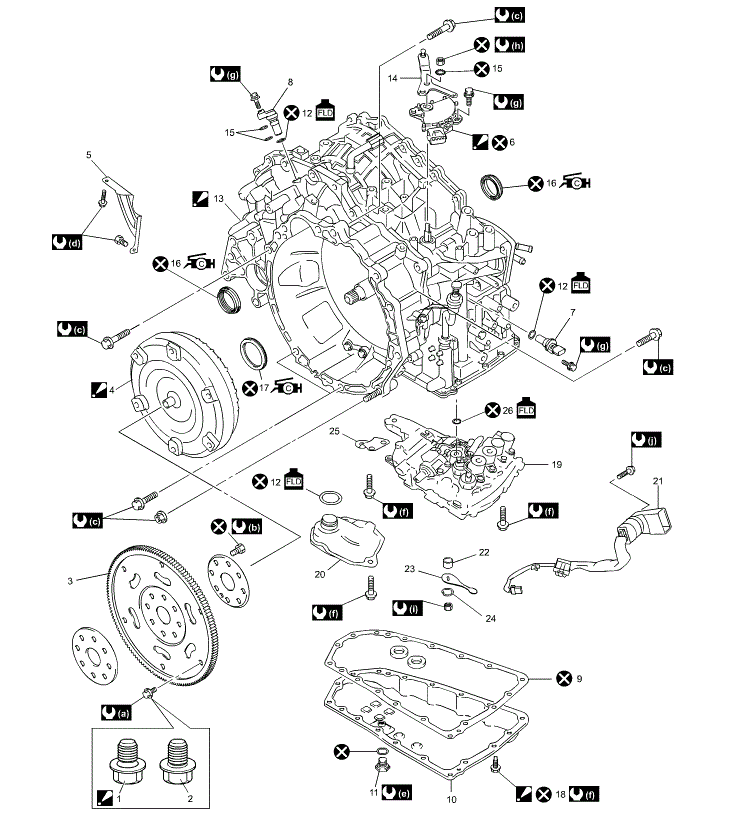

Fig 1: Torque Converter Replacement Components With Torque Specifications (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

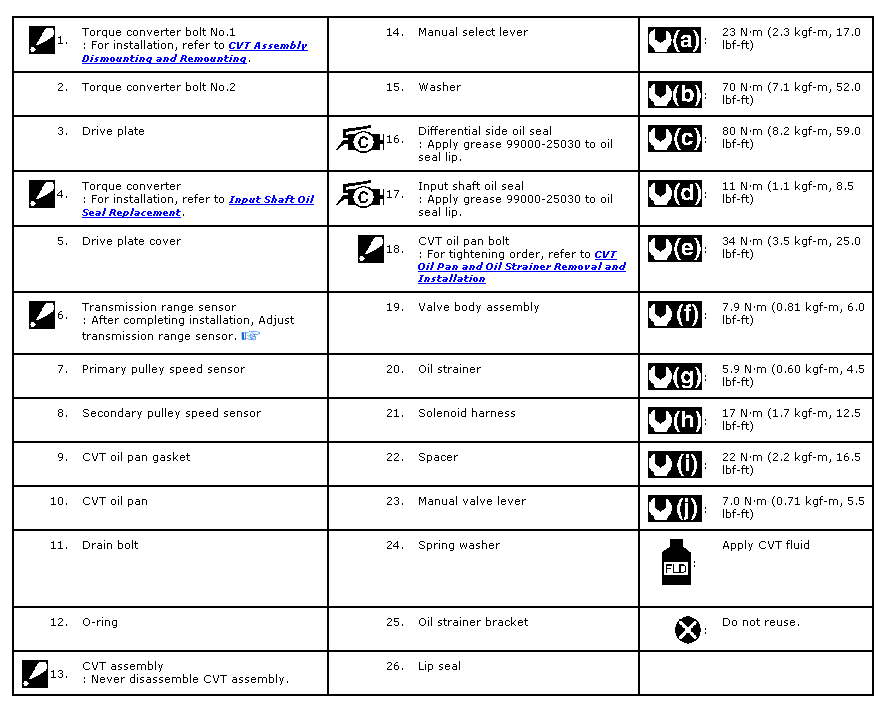

Fig 2: Torque Converter Replacement Components With Torque Specifications (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
