Shift Lock Solenoid Manual Release

WARNING: This page is about a different variant/trim than selected.

Remove plug cap of select lever and push down shift lock solenoid release plate (1) inside of plug hole with a flat-end screwdriver or the like. Then, select lever can be moved from "P" range position to another range even without depressing the brake pedal. (To shift select lever from "P" range to any other position, push engine switch to change the ignition mode to "ON" or "ACC".)

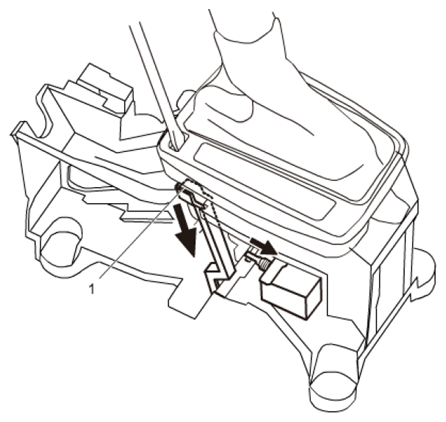

Fig 1: Pushing Shift Lock Solenoid Release Plate
G06527805Courtesy of SUZUKI OF AMERICA CORP.
