TCC Solenoid Valve Signal

WARNING: This page is about a different variant/trim than selected.

TCC solenoid valve signal (1):

TCC SOLENOID VALVE SIGNAL CHART

Channel	Probe	Terminal No.
1	+	E19-7
1	-	E20-9

Measurement condition

Vehicle: Running
CVT: Lock-up on after warming up

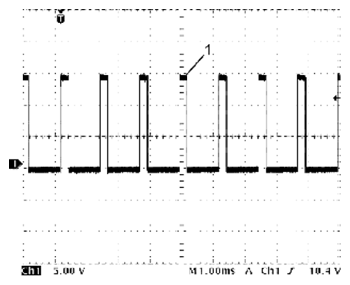

Fig 1: TCC Solenoid Valve Signal Waveform
Courtesy of SUZUKI OF AMERICA CORP.
Vehicle: Running
CVT: Lock-up off after warming up

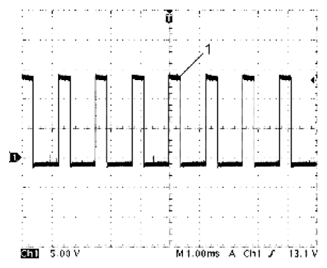

Fig 2: TCC Solenoid Valve Signal Waveform
Courtesy of SUZUKI OF AMERICA CORP.
