Line Pressure Control Solenoid Valve Signal

WARNING: This page is about a different variant/trim than selected.

Line pressure control valve signal (1):

TERMINAL REFERENCE

Channel	Probe	Terminal No.
1	+	E19-9
1	-	E20-9

Measurement condition

Engine: Running after warming up
Select lever position: "D" range
Accelerator pedal: Depressed fully

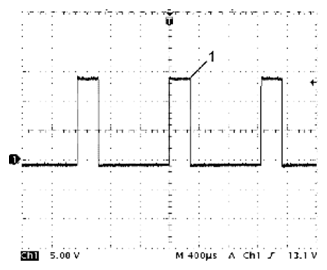

Fig 1: Line Pressure Control Solenoid Valve Signal Waveform (Pedal Depressed)
Courtesy of SUZUKI OF AMERICA CORP.
Engine: Idle speed
Select lever position: "D" range
Accelerator pedal: Released

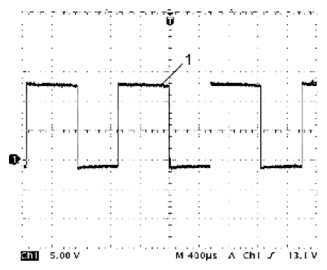

Fig 2: Line Pressure Control Solenoid Valve Signal Waveform (Pedal Released)
Courtesy of SUZUKI OF AMERICA CORP.
