CAN Communication Signal

WARNING: This page is about a different variant/trim than selected.

CAN communication signal (High) (1):

TERMINAL REFERENCE

Channel	Probe	Terminal No.
1	+	E19-5
1	-	E20-9

CAN communication signal (Low) (2):

TERMINAL REFERENCE CHART

Channel	Probe	Terminal No.
2	+	E19-4
2	-	E20-9

Measurement condition

Engine: Stop
Ignition mode: ON

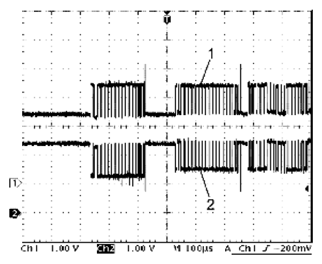

Fig 1: CAN Communication Signal Waveform (Low And High)
Courtesy of SUZUKI OF AMERICA CORP.
