Section 1 (Continuously Variable Transaxle (CVT))
>>
Diagnostic Information and Procedures
>>
DTC P2764: Torque Converter Clutch Pressure Control Solenoid Control Circuit Low
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

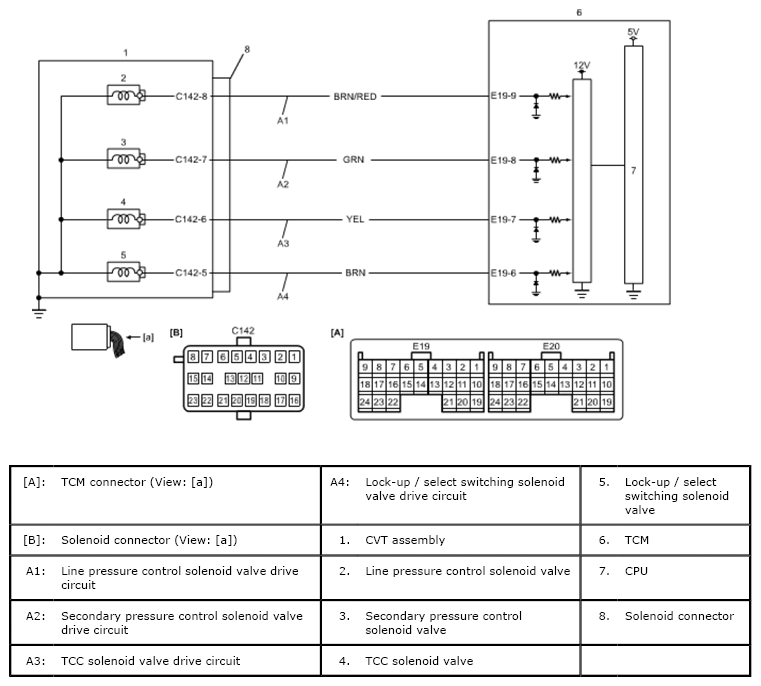

Fig 1: Torque Converter Clutch Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
