Section 1 (Continuously Variable Transaxle (CVT))
>>
Diagnostic Information and Procedures
>>
DTC P0962: Pressure Control Solenoid "A" Control Circuit Low/DTC P0963: Pressure Control Solenoid "A" Control Circuit High
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

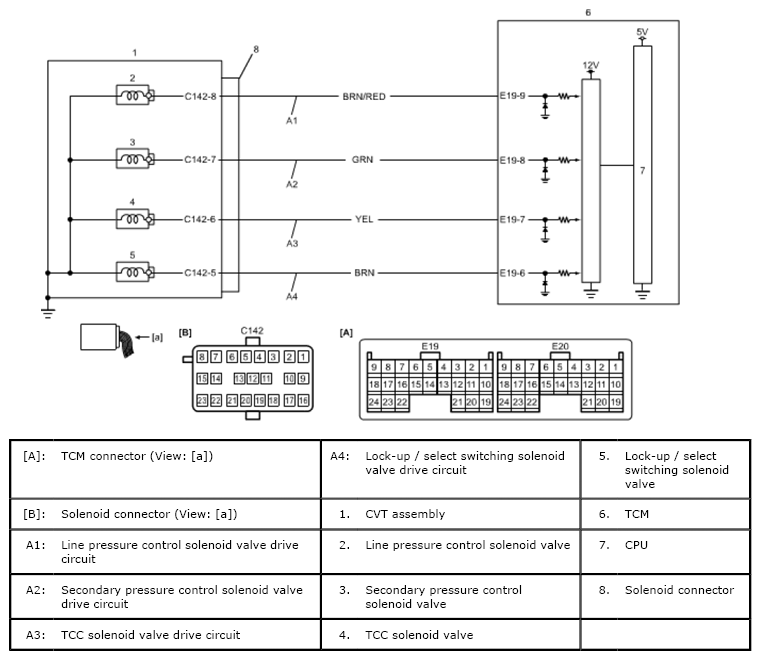

Fig 1: Pressure Control Solenoid Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
