Section 1 (Continuously Variable Transaxle (CVT))
>>
Diagnostic Information and Procedures
>>
DTC P0842: Transmission Fluid Pressure Sensor / Switch "A" Circuit Low/DTC P0843: Transmission Fluid Pressure Sensor / Switch "A" Circuit High
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

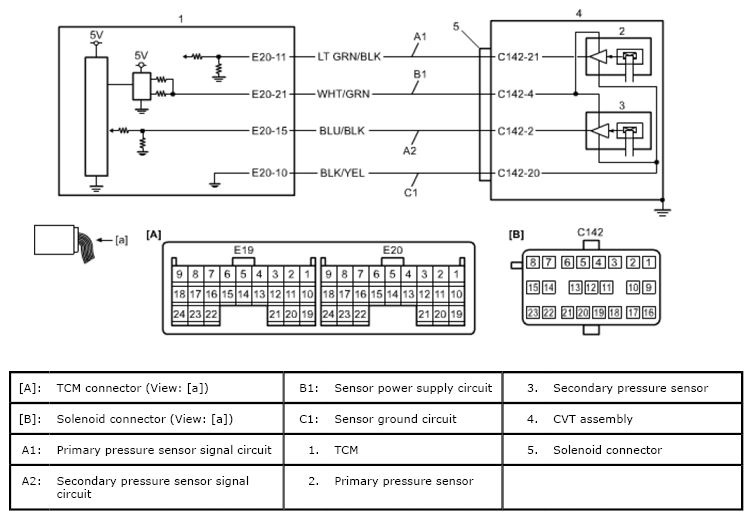

Fig 1: Transmission Fluid Pressure Sensor Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
