Section 1 (Continuously Variable Transaxle (CVT))
>>
Diagnostic Information and Procedures
>>
DTC P0705: Transmission Range Sensor "A" Circuit (PRNDL Input)
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

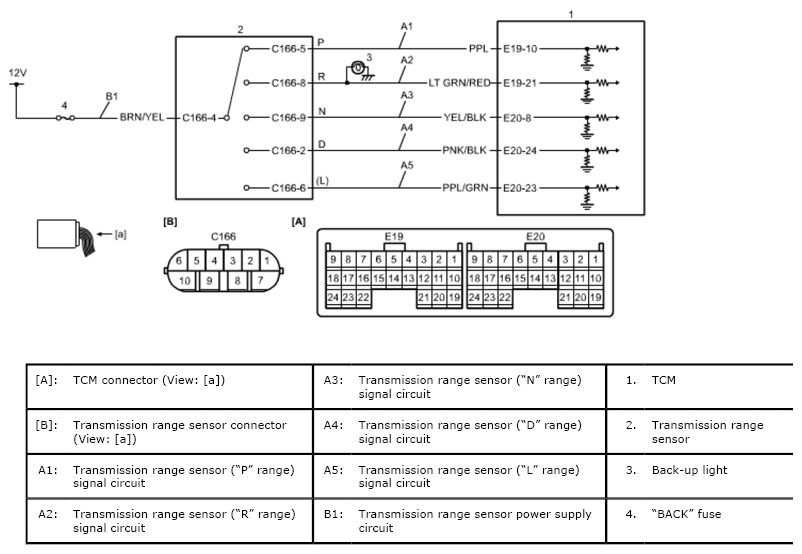

Fig 1: Transmission Range Sensor Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
